Discharge flow: 37-200cfm
Discharge pressure: 7-10bar

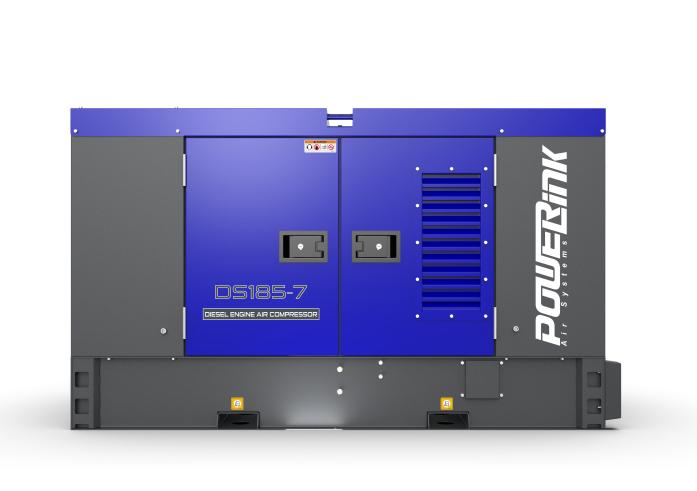

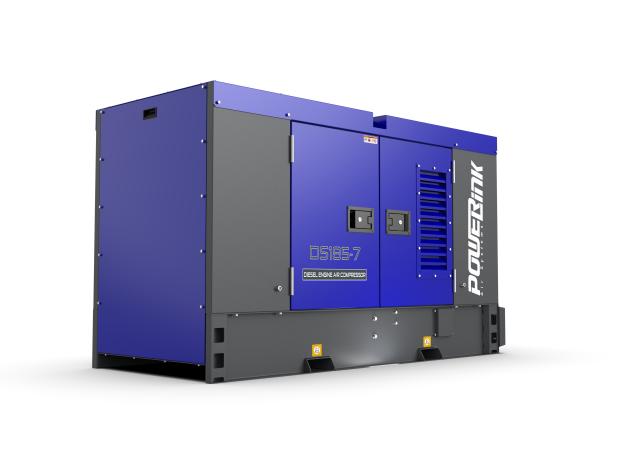

DIESEL AIR COMPRESSOR SMALL

PowerLink’s air compressor is built to perform where it matters most, delivering reliable, high-efficiency compressed air in the harshest environments. With an operating temperature range from -25°C to 50°C, it conquers extreme cold and scorching heat alike, ensuring uninterrupted performance in all seasons and conditions.

For maximum protection, the integrated dual-stage air filtration system safeguards both engine and compressor from contaminants—ideal for dusty job sites. An industrial-grade muffler with condensate drain ensures quiet, clean operation, while the 0–100% variable air output control adjusts seamlessly to demand, optimizing energy use and fuel economy.

Diesel Air Compressor Small
Diesel Air Compressor Small
Diesel Air Compressor Small
Commited to Service

Rental

Commited to Service

Mining

Commited to Service

Factory

Commited to Service

Outdoor Constructions

Commited to Service

Port

Features

Environmental and Endurance

Ambient temperature adaptability:-25°℃ ~ 50°C.Continuous operation >8h

Core Power and Efficiency

Diesel engine: Efficient, powerful and fuel-saving. Air control system: 0-100% discharge volumesmooth adjustment.

Filtration and Purity

Air filter: Dual protection. Oil-air separator: Oil residue ratio < 3ppm.

Maintenance and Structure

Spacious maintenance door. Dual hanger: Strong structure, safe lifting.

Ask an Expert

PowerLink PES battery storage systems provide tailored, high-efficiency energy solutions for sustainable power around the world.

Specification



Rated flux cfm 185cfm(25.04m3/min)
Rated discharge pressure bar 7.0bar
Min. working pressure bar 5.0bar
Total capacity of oil system L 15L
Total capacity of coolant system L 38.1L
Fuel tank capacity L 80L
Dry weight kg 1003kg
Dimensions mm 2107*1099*1004mm

Download

DS185-7 Specification Manual

DS185-7 Specification Manual Register & Download

DS185-7 Warranty Manual

DS185-7 Warranty Manual Register & Download

DS185-7 Brochure Manual

DS185-7 Brochure Manual Register & Download

Video

Diesel Air Compressor Small video

Applications

  • Petrochemical
  • Manufacture
  • Mining
  • Ports
  • Construction site
Petrochemical

Petrochemical

PowerLink Diesel Air Compressors deliver high-purity, oil-free, dry compressed air with total operational independence. Essential for high-stakes, process control, our diesel-driven units provide the core power for factory automation systems, where reliable operation is non-negotiable.

  • Core Control Power: Provides the necessary stable air to drive thousands of pneumatic regulating valves and actuators.

  • System Stability: Ensures maximum stability for complex industrial control systems, which are the core power of factory automation.

  • Off-Grid Reliability: The diesel-driven units guarantee robust, consistent air flow, ensuring uninterrupted power for critical industrial processes, even in remote or off-grid environments.

Learn More
Manufacture

Manufacture

PowerLink Diesel Air Compressors deliver high-purity, oil-free, dry compressed air with total operational independence.

Essential for high-stakes, precision manufacturing, our diesel-driven units ensure maximum accuracy for robotic assembly, sensitive component blow-off, and complex positioning. They provide robust, consistent air flow, guaranteeing uninterrupted power for critical operations, even in remote or off-grid environment.

Learn More
Mining

Mining

PowerLink Diesel Air Compressors are essential for remote energy operations, delivering robust, consistent air flow independent of local power access. Our units provide the reliable control air necessary for automated pump stations, valves, and monitoring systems, ensuring uninterrupted field operations.

Additionally, they supply the necessary pneumatic tool power for timely onsite maintenance and crucial pipeline equipment servicing. This combination offers unmatched durability and operational autonomy in the most challenging terrains.

Learn More
Ports

Ports

PowerLink Diesel Air Compressors deliver high-purity, oil-free, dry compressed air with total operational independence. Essential for high-stakes, maritime logistics, our diesel-driven units provide the core power for sustained port operations, where reliable performance is non-negotiable.

  • Logistics Power Systems: Provides pneumatic power for large port machinery like container cranes, including air brakes, clutches, and essential control systems.

  • Maintenance and Preservation: Supports heavy-duty site services such as the repair, painting, and cleaning of ships and dock facilities.

  • Off-Grid Reliability: The diesel-driven units guarantee robust, consistent air flow, ensuring uninterrupted power for critical port operations, even in remote or off-grid environments.

Learn More
Construction site

Construction site

PowerLink Diesel Air Compressors deliver high-purity, oil-free, dry compressed air with total operational independence. Essential for high-stakes construction, our diesel-driven units provide the core power for sustained site performance.

  • Tool Power: Provides the pneumatic force necessary to drive equipment, including jackhammers and rock drills.

  • System Control: Supplies reliable air for the pneumatic brakes and control systems of machinery, such as concrete pumps and cranes.

  • Off-Grid Reliability: The diesel units guarantee robust, consistent air flow, ensuring uninterrupted power for critical construction operations.

Learn More
