PHE Series

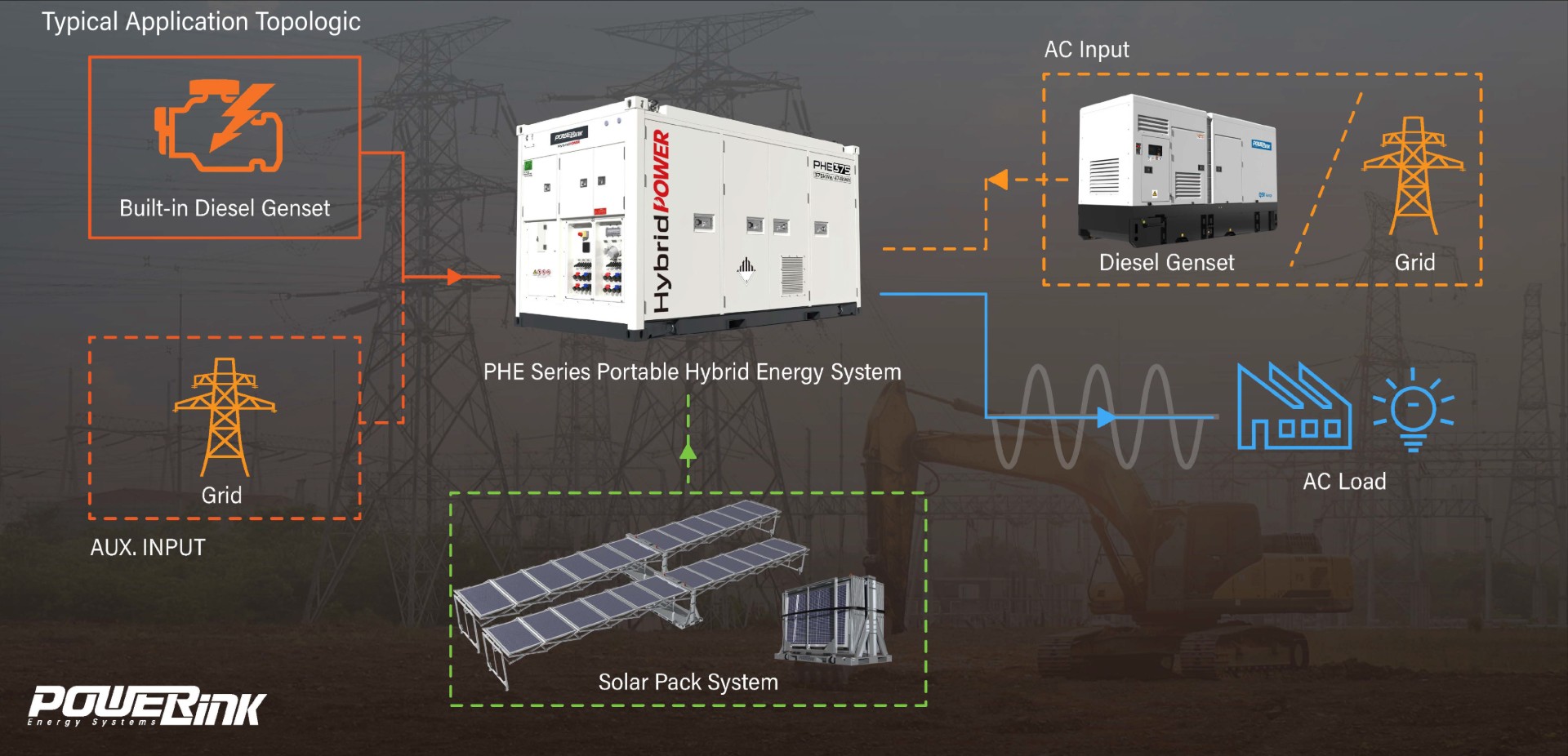

The PHE Series is a mobile mixed-energy system that combines municipal power, photovoltaics, and diesel generators. It is designed to be economical and energy-efficient, with the output power range 125-500kWe and the total capacity range 237-1040kWh.

PHE125 Specification

System Output Power	kWe	125
Output VOLTAGE	V	400/415
Battery Vapacity	kWh	237
Gen Input	kW	45
PV/Wind Input	kWp	50
40′ Loading	qty	4
Noise Level(hybrid mode)	dBA@7m	60
Noise Level(battery mode)	dBA@7m	55
Dry Weight	kg	4000
Dimensions	mm	290013001600

GET AN INQUIRY

PHE375 Specification

System Output Power	kWe	375
Output VOLTAGE	V	400/415
Battery Vapacity	kWh	474
Gen Input	kW	45
PV/Wind Input	kWp	100
40′ Loading	qty	3
Noise Level(hybrid mode)	dBA@7m	60
Noise Level(battery mode)	dBA@7m	55
Dry Weight	kg	7500
Dimensions	mm	395021002450

GET AN INQUIRY

PHE500 Specification

System Output Power	kWe	500
Output VOLTAGE	V	400/415
Battery Vapacity	kWh	1040
Gen Input	kW	80
PV/Wind Input	kWp	100
40′ Loading	qty	2
Noise Level(hybrid mode)	dBA@7m	65
Noise Level(battery mode)	dBA@7m	55
Dry Weight	kg	13000
Dimensions	mm	530021002450
