Micro-Grid System

The PowerLink microgrid portfolio features five distinct energy storage product series. These include the RHE, RHES, CHE, CHES, and IHE models. Each series is engineered to meet specific capacity and operational requirements.

RHE and RHES Series

These all in one residential energy storage systems deliver an output range of 12 to 100 kWe. They serve as compact and independent power solutions designed for homes, farms, mines, and remote island applications. They operate seamlessly in both on grid and off grid environments to maximize energy savings.

RHES Cost Effective Design

The RHES model serves as a highly cost effective alternative to the standard RHE unit. It utilizes standard 314Ah battery cells with a tailored battery capacity. To maintain a highly compact physical footprint, this version omits the fire suppression system and separate control cabinet. All electrical components are fully integrated and controlled directly inside the main unit.

CHE and CHES Series

These commercial microgrid systems provide a robust output ranging from 30 to 1000 kWe. They are versatile battery energy storage solutions built for demanding applications such as rental fleets, construction sites, port operations, and marine power. Users benefit from ultra high energy density and flexible configurations that deliver reliable and eco friendly power.

IHE Series

This industrial hybrid energy system is available in powerful 1250 kWe and 2500 kWe models. It operates as a grid connected battery energy storage system optimized for large scale applications like solar power plants, wind farms, and grid frequency regulation. The highly integrated design delivers ultra high energy density to ensure industrial users receive a highly efficient and low carbon energy solution.

PowerLink manufactures two primary categories of energy storage products. These are hybrid energy systems and micro grid systems. Our hybrid energy systems include the PES PHE BES and ABS product series. The PowerLink micro grid system portfolio features three distinct product lines. These are the RHE CHE and IHE series.

Hybrid Energy Systems
Our hybrid energy systems focus heavily on demanding off grid applications. These systems deliver a highly complementary power supply by combining multiple energy sources. We integrate advanced energy storage batteries with photovoltaics and robust diesel generators. This hybrid approach directly meets the exact industrial demand for continuous and reliable electricity.

Advanced Micro Grid Systems
A PowerLink micro grid system operates as an industrial grade battery energy storage system. Every micro grid system we build is fully capable of parallel grid connection and independent off grid operation. A typical micro grid system features high integration combined with ultra high energy density and highly flexible configuration options. By deploying our micro grid system commercial and industrial users gain access to fully independent power stations. Ultimately this micro grid system delivers highly efficient power solutions that promote practical energy saving and environmental responsibility.

Powerlink microgrid system is a battery energy storage system suitable for grid-connected and off-grid applications.

It features high integration, ultra-high energy density, and flexible configuration, providing users with independent power supply or energy-efficient, eco-friendly power solutions.

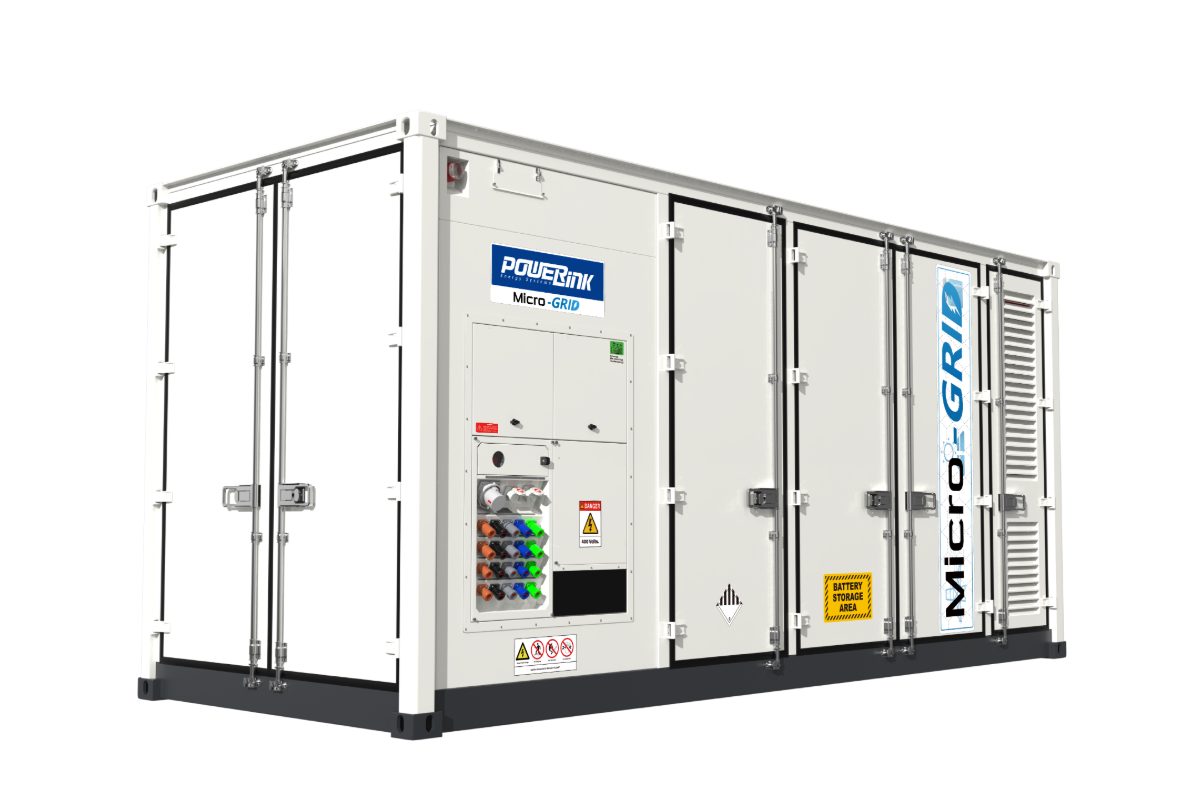

The IHE series industrial and commercial microgrid systems feature high integration, ultra-high energy density, and flexible configuration, providing users with independent power supplies or energy-efficient and environmentally friendly energy products.

• Large-capacity microgrid system, suitable for peak shaving, frequency regulation, etc., with a power output of 1250-2500kWe.
• Utilizes a modular design with separate battery cabinets and PCS cabinets for rapid assembly and deployment.
• EMS intelligent management system for real-time monitoring and scheduling of BMS and PCS systems, operable locally or remotely via APP & Web.
• IP54 protection rating, suitable for harsh operating environments.
• Power output panel equipped with copper busbars for easy operation.

The CHE series commercial microgrid systems feature high integration, ultra-high energy density, and flexible configuration, providing users with independent power sources or energy-efficient and environmentally friendly energy products.

Large-capacity microgrid systems are suitable for commercial applications, peak shaving and valley filling to reduce electricity costs, with power output ranging from 30-1000 kWh.

The BMS system employs a three-tiered management architecture of battery stacks, battery clusters, and battery packs, with a total capacity of 104.5-2080 kWh.

The fire suppression system uses perfluorohexanone (PFH) extinguishing agent and is equipped with automatic detection and triggering systems such as smoke and heat sensors.

The EMS intelligent management system provides real-time monitoring and scheduling of the BMS and PCS systems, and can be operated via local HMI or remote APP & Web applications.

A large-capacity cooling system allows the entire unit to operate in ambient temperatures from -30°C to 50°C.

The unit has an IP54 protection rating, adapting to harsh operating environments.

• Peak Shaving & Valley Filling: Reduce electricity costs by utilizing price differentials between off-peak and peak hours.
• PV Energy Storage: Maximize self-consumption of solar energy (supports PV input up to 50kW).
• UPS / Off-grid Power Supply: Provides uninterrupted power during grid outages with fast off-grid switching capability.
• Power Trading: Enables participation in grid interaction and electricity market transactions.

The system is compatible with multiple energy inputs: batteries, grid, generator and PV (Batt+Grid/Gen+PV).

• Peak Shaving & Valley Filling: Reduce electricity expenses.
• PV Energy Storage: Improve solar self-consumption rate.
• UPS / Off-grid Power Supply: Provides seamless, uninterrupted power during grid outages.

The entire CHES series (from CHESS30 to CHESS125) adopts an advanced liquid cooling temperature control system with R404a refrigerant, ensuring battery safety and service life under high-load conditions.

In terms of noise control, all models produce only 58 dBA at a 7-meter distance, operating very quietly. They are highly suitable for noise-sensitive commercial offices, residential areas and indoor environments.

This residential microgrid system operates in parallel with the power grid, charging/discharging according to a time-of-use schedule, reducing electricity costs for users by approximately 70%.

• Power output: 12-100kWh; battery capacity: 30.72-125kWh; supports 1C charge/discharge rate.
• Equipped with 4 photovoltaic input interfaces, utilizing green energy with a power output of 18-153.6kWp; wind power can also be connected.
• EMS intelligent management system, providing real-time monitoring and scheduling of the BMS and PCS systems; operable via local HMI or remote APP & Web.
• IP54 protection rating, suitable for harsh operating environments.
• Power output panel equipped with fast-connect sockets and copper busbars for plug-and-play operation.

Microgrids are mainly used for off-grid scenarios such as power supply at construction sites, tower cranes, and events. They are also applied in grid-connected scenarios including PV and wind power storage, peak shaving, and frequency regulation.

In addition, they can be used in both grid-connected and off-grid modes for factories, mining, agriculture, and commercial applications.

The output power ranges from 12 kWe to 2500 kWe, covering a wide range of applications.

• Peak Shaving & Valley Filling: Reduce electricity costs by utilizing price differentials between off-peak and peak hours.
• PV Energy Storage: Maximize self-consumption of solar energy (supports PV input up to 50kW).
• UPS / Off-grid Power Supply: Provides uninterrupted power during grid outages with fast off-grid switching capability.
• Power Trading: Enables participation in grid interaction and electricity market transactions.

The system is compatible with multiple energy inputs: batteries, grid, generator and PV (Batt+Grid/Gen+PV).

The entire CHES series (from CHESS30 to CHESS125) adopts an advanced liquid cooling temperature control system with R404a refrigerant, ensuring battery safety and service life under high-load conditions.

In terms of noise control, all models produce only 58 dBA at a 7-meter distance, operating very quietly. They are highly suitable for noise-sensitive commercial offices, residential areas and indoor environments.

• Peak Shaving & Valley Filling: Reduce electricity expenses.
• PV Energy Storage: Improve solar self-consumption rate.
• UPS / Off-grid Power Supply: Provides seamless, uninterrupted power during grid outages.

Unlike large commercial liquid-cooled systems, the entire RHES series (including RHES12S, RHES24S and their three-phase versions) uses natural cooling, with no additional air conditioning or liquid cooling units required. This simplifies system structure and reduces maintenance costs.

All models operate at only 50 dBA at a 7-meter distance, extremely quiet and perfect for noise-sensitive residential or indoor installations.
