Key Differences Between Tier 3 vs. Tier 4 Generators

The Generator EPA Tier Ratings

The Environmental Protection Agency (EPA) introduced the tier rating system to regulate diesel engine emissions in non-road applications, including generators. These standards aim to reduce harmful pollutants such as nitrogen oxides (NOx), particulate matter (PM), carbon monoxide (CO), and hydrocarbons (HC), which significantly impact air quality and contribute to environmental degradation. The tier system is progressively stricter, with Tier 1 being the least restrictive and Tier 4 representing the most advanced emission control technologies.

As emissions standards evolve, businesses must adapt their equipment to meet these requirements. Generators are categorized under different tiers based on their emission control systems, with Tier 3 and Tier 4 being the primary focus for current regulatory compliance.

Evolution from Tier 3 to Tier 4 Compliance

Tier 3 and Tier 4 generator standards, set by the Environmental Protection Agency (EPA), aim to reduce the environmental impact of diesel generators through progressively stricter emission controls.

● Tier 3 Compliance: Introduced technologies like Exhaust Gas Recirculation (EGR) to lower nitrogen oxides (NOx) and Diesel Particulate Filters (DPF) to trap particulate matter (PM), marking a significant step toward cleaner emissions.

● Tier 4 Compliance: Requires advanced systems, such as Selective Catalytic Reduction (SCR) with Diesel Exhaust Fluid (DEF) to cut NOx by 90%, and Diesel Oxidation Catalysts (DOC) to further reduce carbon monoxide (CO) and hydrocarbons (HC).

Compliance strategies vary: businesses may need to upgrade equipment to meet Tier 4 standards, though exemptions apply to emergency standby generators, often governed by Tier 2 or Tier 3 rules. Regulations under EPA’s 40 CFR Part 1039 outline required emission reductions and testing protocols.

By staying informed on regulations and leveraging industry expertise, businesses can balance compliance with operational efficiency, ensuring reduced environmental impact while maintaining functionality.

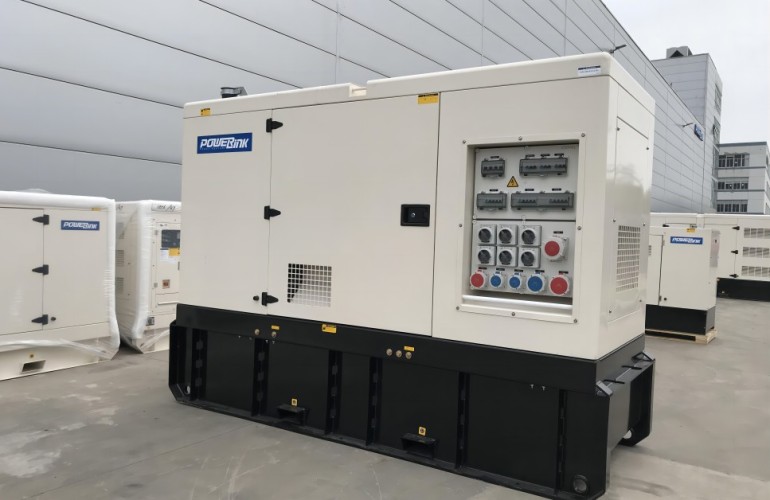

What is Tier 3 generators

Tier 3 generators utilize established emission control technologies to mitigate pollutants. Exhaust Gas Recirculation (EGR) reduces nitrogen oxides (NOx) emissions by redirecting a portion of exhaust gases back into the combustion chamber, lowering peak combustion temperatures. This process minimizes the formation of NOx, a major contributor to smog and acid rain. Diesel Particulate Filters (DPF) trap particulate matter (PM), or soot, preventing its release into the atmosphere. These filters physically capture PM, which is then periodically burned off in a regeneration process. While effective in reducing some pollutants, Tier 3 technologies offer a moderate level of emission reduction, meeting the baseline standards established for this tier.

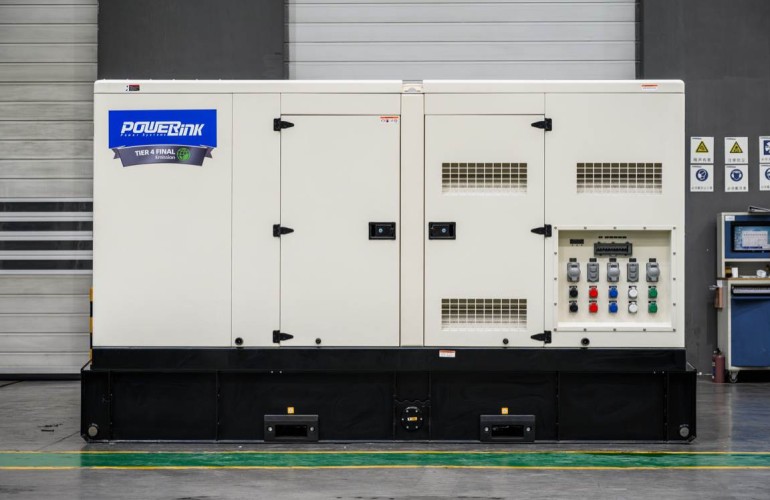

What is Tier 4 generators

Tier 4 generators represent a significant advancement in emissions control, integrating sophisticated technologies for a more comprehensive approach. Selective Catalytic Reduction (SCR) is a key component. SCR systems inject a urea-based Diesel Exhaust Fluid (DEF) into the exhaust stream. This DEF reacts with NOx in the presence of a catalyst, converting it into harmless nitrogen and water vapor. This technology achieves a substantial reduction in NOx, up to 90% compared to Tier 3 levels. Further enhancing emission reduction, Diesel Oxidation Catalysts (DOC) are employed. DOCs oxidize carbon monoxide (CO) and hydrocarbons (HC), converting them into carbon dioxide (CO2) and water vapor. This combination of SCR and DOC technologies results in significantly cleaner exhaust.

Performance differences between Tier 3 and Tier 4 generators

Benefits of Tier 4 Generators

Tier 4 generators provide a range of advantages beyond meeting EPA requirements, making them an excellent investment for businesses prioritizing efficiency, sustainability, and operational effectiveness.

● Environmental Impact:Drastically reduces NOx, PM, CO, and HC emissions, ensuring cleaner air and a safer workspace.

● Efficiency:Enhanced fuel economy and reduced maintenance needs lower operational costs.

● Quiet and Durable: Quieter operation with advanced systems for longer lifespan.

● Future-Proof: Advanced technology supports potential upgrades to meet future standards like Tier 5.

Tier 4 generators offer a sustainable, cost-effective, and regulatory-compliant solution, ensuring long-term value for businesses.

What Applications Require Tier 4 Standards?

Many generators now fall under Tier 4 regulations to reduce emissions and meet stringent environmental requirements. Here are some of the most common applications:

Prime Power Generators

Prime power generators provide the primary source of electricity for facilities or projects disconnected from the grid. These generators operate continuously to power equipment, machinery, and utilities. Due to their extensive runtime and high emissions potential, they must comply with Tier 4 standards to ensure reduced environmental impact.

Portable Generators

Portable generators used in commercial, construction, or industrial applications must also adhere to Tier 4 regulations. These generators are commonly deployed at construction sites, off-grid projects, and large events where reliable, temporary power is required. Their compliance ensures cleaner operation even in environments with high regulatory scrutiny.

Choosing Between Tier 3 and Tier 4 Generators

Deciding between Tier 3 and Tier 4 generators involves balancing initial investment, operational costs, and regulatory requirements:

Cost Implications

Tier 4 generators feature advanced technologies like Selective Catalytic Reduction (SCR) and Diesel Oxidation Catalyst (DOC), resulting in higher upfront costs. However, their superior fuel efficiency lowers long-term operating expenses, making them cost-effective for high-usage applications.

Maintenance Needs

Tier 3 generators, using simpler systems like Exhaust Gas Recirculation (EGR) and Diesel Particulate Filters (DPF), have lower maintenance demands, often manageable by on-site staff. Tier 4 generators require specialized maintenance for SCR and DEF systems, including regular refills and servicing of catalysts, increasing complexity and cost.

Applications

Tier 4 generators are ideal for urban areas and environmentally sensitive projects due to their compliance with stringent EPA standards. Tier 3 generators suit regions with relaxed regulations, offering reliable performance at lower costs for less frequent operations.

By evaluating these factors alongside regulatory needs and sustainability goals, businesses can select the generator that best aligns with their operational priorities and long-term objectives.

Purchase Reliable Generators for Your Business from Powerlink

Now that you understand how the EPA Tier system works, you can confidently choose the right generator for your business. At Powerlink, we offer a wide range of machines to provide backup or primary power solutions tailored to your needs. As one of the most trusted brands in the industry, we are committed to helping our customers access the reliable power they need with an extensive catalog of generators to browse.

All our generators are rigorously tested to ensure optimal performance and comply with the EPA diesel engine tier standards for their model year. If you need assistance determining the right generator size for your business or have questions about purchasing or selling a generator, contact the experts at Powerlink.

With years of experience serving industries like mining and construction, Powerlink provides the equipment you need and trust. We not only offer expert advice and industry-leading warranties but also deliver comprehensive power solutions. Wherever you are, we will customize and install a power solution tailored to your specific needs.

Frequently Asked Questions

What is the primary difference between Tier 3 and Tier 4 generators?

The main difference lies in emissions levels and control systems. Tier 4 generators feature stricter emissions controls, resulting in significantly lower NOx and PM emissions compared to Tier 3 models.

Are Tier 4 generators more expensive than Tier 3 generators?

Yes, Tier 4 generators tend to be more expensive upfront and have higher maintenance costs due to their advanced emissions control systems. However, their improved fuel efficiency can help offset these costs over time, making them more economical in high-usage scenarios.

Can I use a Tier 3 generator in an area with strict emissions regulations?

This depends on local regulations. Some regions, particularly urban or environmentally sensitive areas, may require Tier 4 compliance.

Do Tier 4 generators offer better fuel efficiency than Tier 3 generators?

Yes, Tier 4 generators generally provide better fuel efficiency, particularly under high-load conditions. Their advanced technology optimizes combustion, reducing fuel consumption compared to Tier 3 models.

What maintenance considerations should I account for with Tier 4 generators?

Tier 4 generators require more frequent and specialized maintenance to ensure optimal performance and regulatory compliance. Key considerations include:

● Regular cleaning or replacement of Diesel Particulate Filters (DPF).

● Maintenance of Selective Catalytic Reduction (SCR) systems, including Diesel Exhaust Fluid (DEF) refills.

● Monitoring and servicing of Diesel Oxidation Catalysts (DOC).
Proper maintenance is critical to extending the lifespan and reliability of Tier 4 generators.

Are there exemptions for using Tier 3 generators?

Yes, in some cases. For example, emergency standby generators may be allowed to operate under Tier 3 or even Tier 2 standards, depending on the application and local regulations. Always verify exemptions based on your specific use case.
