500，1000，2500 Ampere
Distributor
Our Power Distributor is a high-performance optional part for all PowerLink gensets, engineered to safely and efficiently distribute generated power to multiple on-site devices with reliable overload protection, boosting power supply flexibility for diverse working conditions.
We offer three tailored specifications to match different load demands:

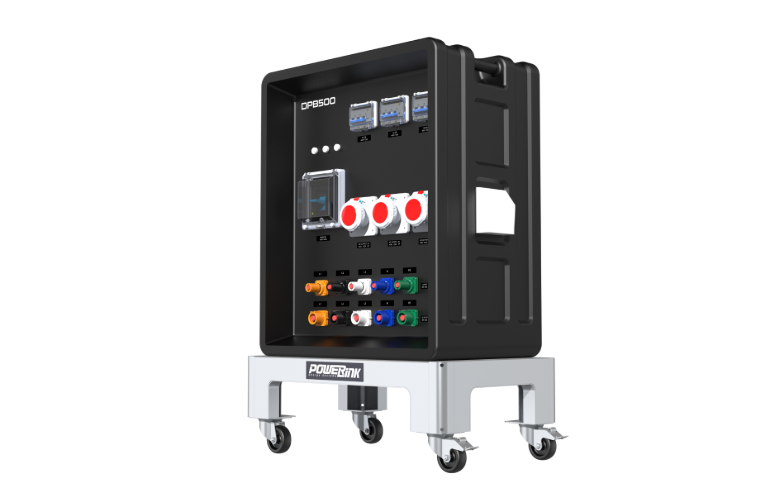

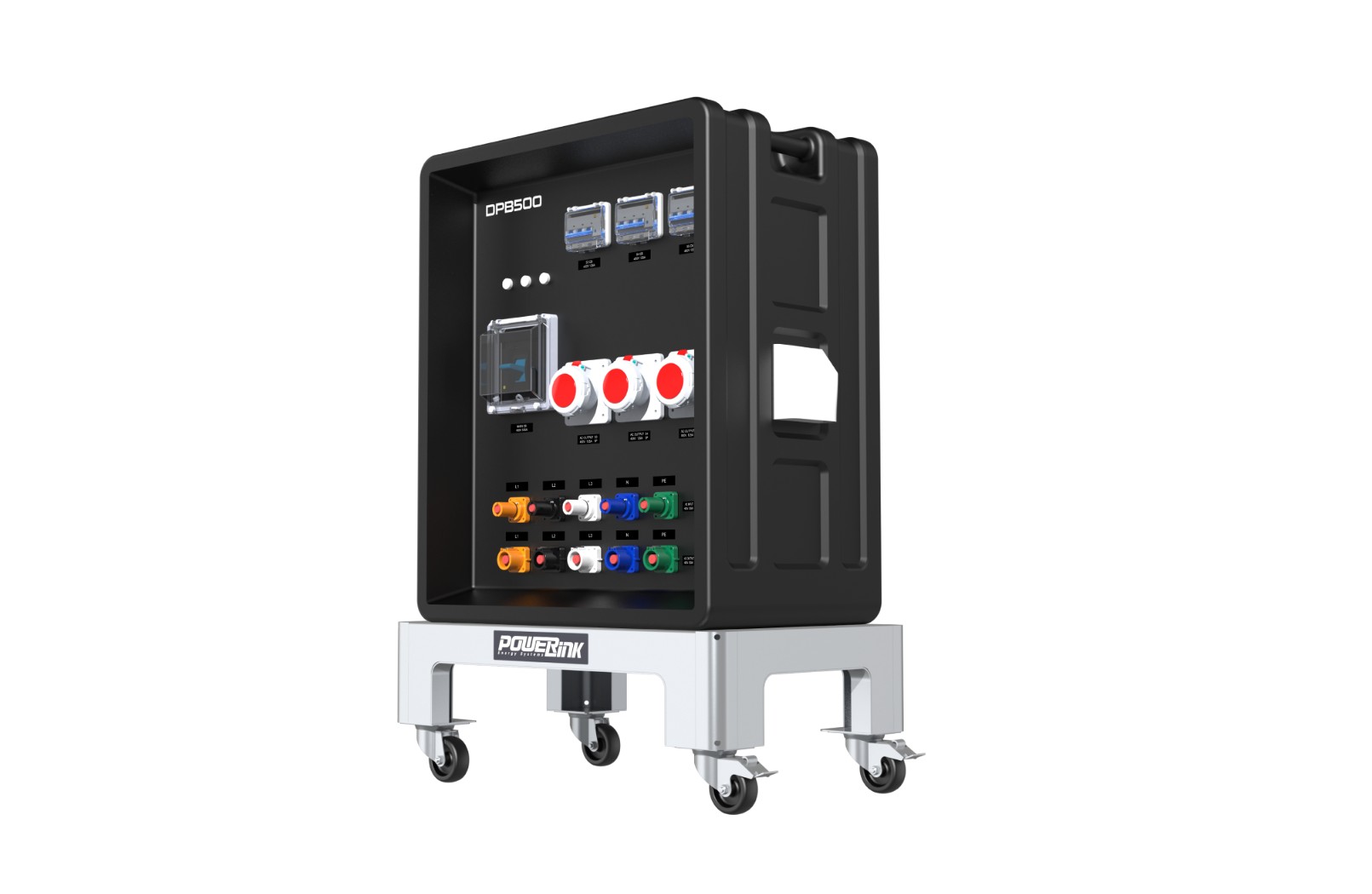

The 500A model is ideal for low-to-moderate load scenarios like small construction sites, portable equipment and light commercial backup;

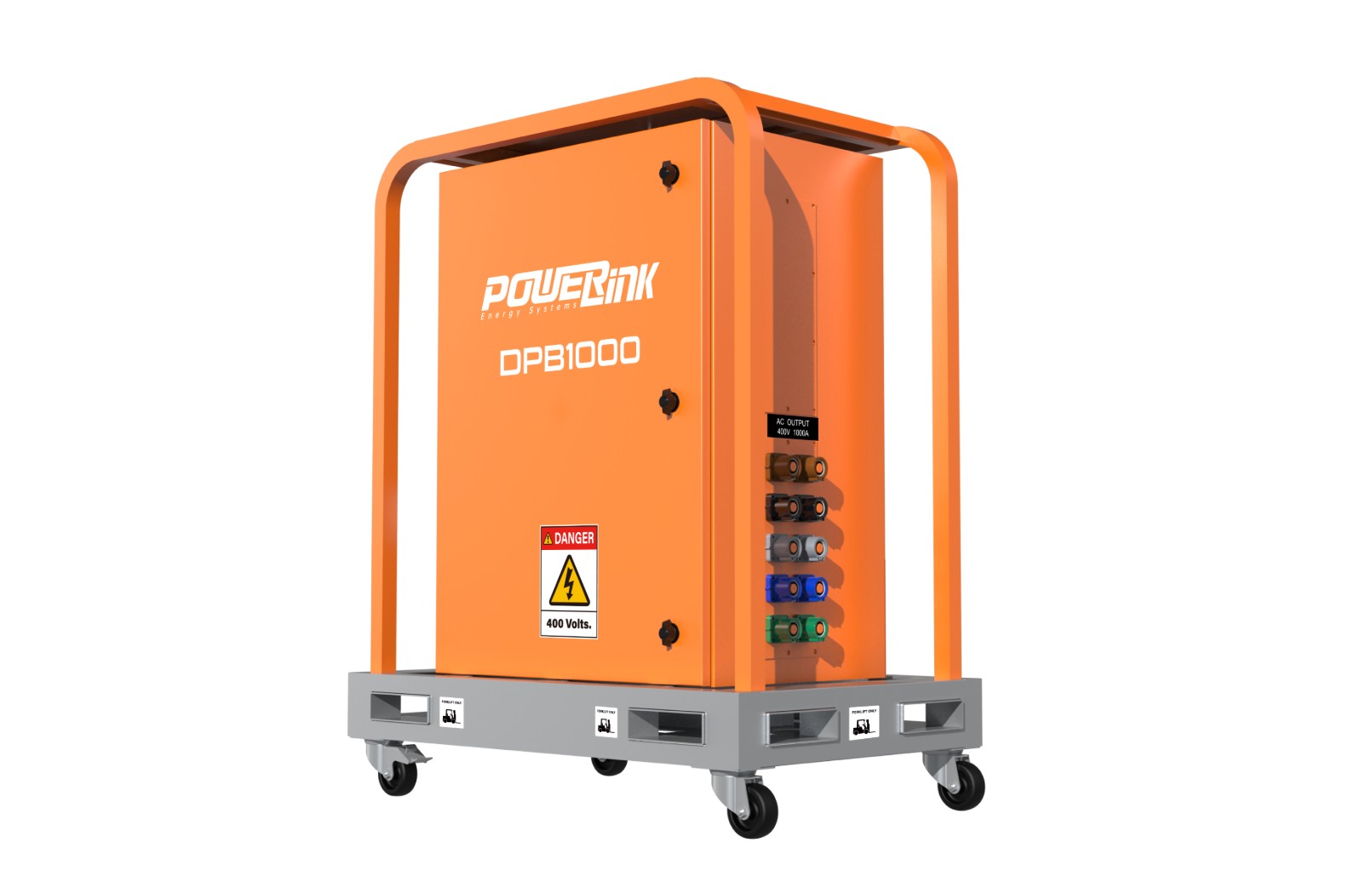

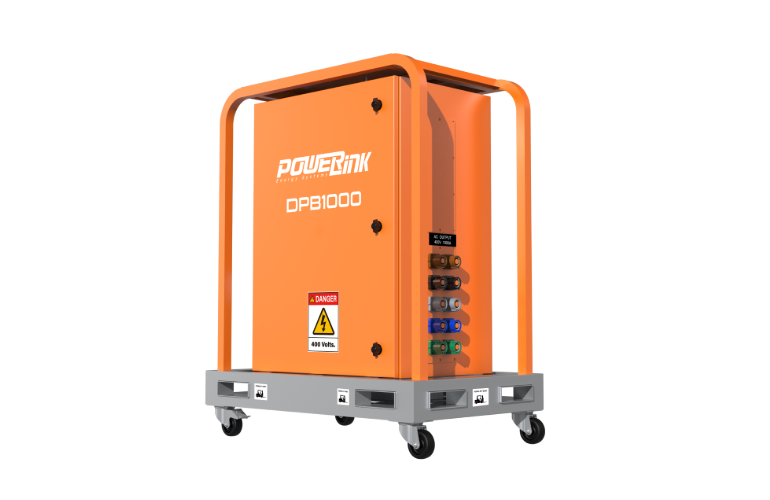

The 1000A version caters to mid-range needs including medium-scale projects, industrial park standby and mid-sized events;
The 2500A unit delivers heavy-duty performance for high-power applications such as large industrial bases, data centers and major infrastructure projects. All variants integrate seamlessly with Powerlink systems, providing a custom-fit power distribution solution.
Features
Conductivity & Stability:
Built with high-conductivity copper alloy conductors to minimize voltage drop, ensuring consistent performance even during continuous operation for medium-scale power needs.
IP54 Protection:
Features IP54 dust/moisture resistance and built-in overload protection, delivering reliable safeguarding for commercial and light industrial applications.
Modular Design & Dual-Voltage Versatility:
Modular structure simplifies installation and maintenance, while 120/240V dual-voltage compatibility enhances adaptability for lighting, HVAC, and office equipment power distribution.
Ask an Expert
PowerLink provides tailored, high-efficiency energy solutions for sustainable power around the world.
86-2157-858-099 ext 8820
Specification
Register & Download
FAQs
What are the characteristics of PES series energy storage products and which scenarios are they mainly used for?
The PES series hybrid unit is a mobile hybrid system and energy-saving system product designed for off grid applications such as leasing, construction, ports, mining, events, emergencies, and ship power supply. It supports solar power input and diesel generator input, and can be used in combination with batteries or independently. It can provide users with independent power supply or efficient energy products that are energy-saving and environmentally friendly.
- The overall protection level of the product is IP54, suitable for harsh usage environments;
- Series product power output range: 30-500kWe;
- EMS intelligent management system, real-time detection and scheduling of BMS system, PCS system, etc., and can be operated through local HMI or remote APP&Web;
- The BMS system adopts a three-level management architecture of battery stack, battery cluster, and battery pack, with a total capacity of 62-576kWh and supports 1C charging/discharging.
What are the characteristics of PHE series energy storage products and which scenarios are they mainly used for?
PHE is a mobile hybrid energy system product that is powered by batteries, diesel generators, photovoltaics, and other sources.
- Power output range: 125-500kWe;
- The battery system uses liquid-cooled battery packs with a total capacity of 237-1040kWh.
- EMS intelligent management system, which can be operated through local HMI or remote APP&Web;
- The whole machine is suitable for environmental temperatures ranging from -20 to 50 ℃.
The PHE series products can be widely used in off-grid application scenarios such as leasing, construction, ports, mining, sports events, emergency response, and ship power supply.
How long is the battery life? Can the battery be replaced?
The designed service life is usually based on a charge and discharge life of over 6000 cycles, with approximately 10 years of use per day; The battery pack can be replaced by simply unplugging the cable connector and reinstalling up to 10 bolts. The replaced battery pack can be recycled at a discounted price.
How to choose PowerLink energy storage products?
PowerLink energy storage products can be divided into two categories: hybrid systems and microgrid systems, which can be selected according to application scenarios.
There are three major series of mobile hybrid products, with different specifications, control logic, functional scope, and application scenarios. It is necessary to determine our application requirements and then match the functions of each series of products according to these major requirements.
The mobile microgrid series products have 3 major series and 14 application scenarios, including 10 for low voltage systems and 4 for medium to high voltage systems. They can operate in parallel and off grid environments, and have obvious advantages in peak shaving and frequency regulation, peak valley arbitrage, green power de oiling, and uninterruptible power supply applications. Based on the application scenarios, the major product categories are selected and matched with specific model specifications.
Do the PES and RHE series only have three-phase output? Can three-phase and single-phase output be carried out simultaneously?
PES only has three-phase output, RHE12S and RHE24S in the RHE series have single-phase output, while other products have three-phase output. Three phase and single-phase cannot be output simultaneously
