80 kWe/101.4 kWh
BES 80S3

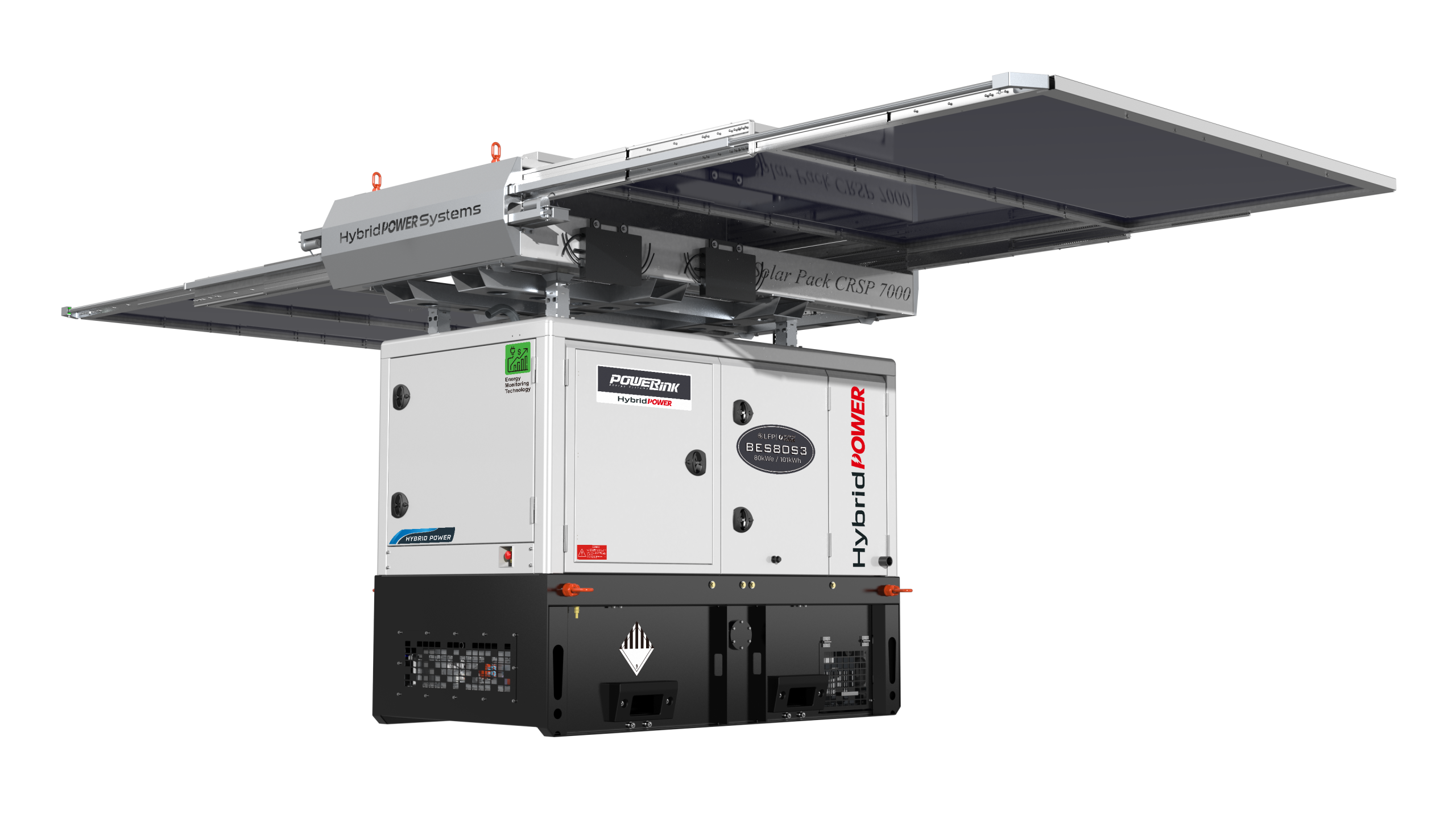

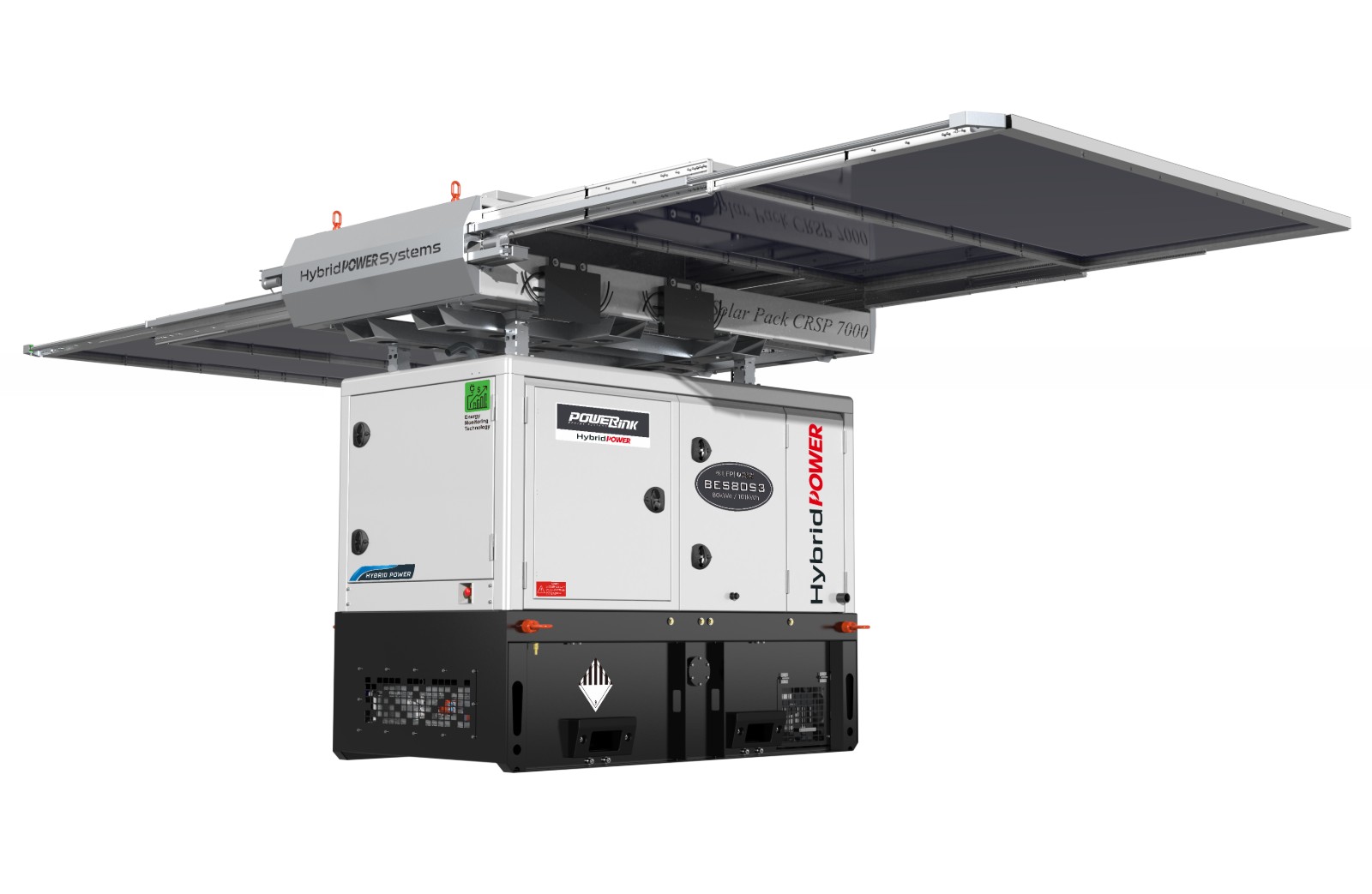

The BES80S3 is an all-in-one Liquid Cooled Battery Storage solution. Delivering 80kWe/101kWh, it offers high efficiency for islands and remote stations. The BES80S3 merges energy storage batteries, PV modules, and diesel generators in a seamless, all-in-one configuration, providing a complementary power solution that combines wind, solar, diesel, and energy storage systems. Featuring a compact design and easy plug-and-play installation, it is a top choice for remote islands, mountainous rural areas, field stations, backup power requirements, and a host of other applications.
Modular structure design
Genuine spare parts
Plug-and-Play Convenience
Rugged & Reliable Performance
Features
Intelligent EMS
Real-time monitoring/scheduling for BMS/PCS, operable via local HMI or remote APP/Web
Hybrid Energy System
20kWe rated power output; 30.7kWh battery capacity; 2.5kWp PV power
Oil-PV-Storage hybrid power
Integrates with energy storage battery, PV modules and diesel generator
Battery system adopts liquid cooling
Operating temperature range: -20°C to 50°C.
Ask an Expert
PowerLink provides tailored, high-efficiency energy solutions for sustainable power around the world.
86-2157-858-099 ext 8820
Specification
| Output Power | kVA/kW | 80/80 |
| Output voltage | AC V | 380/400/415 |
| Battery Capacity | kWh | 101.4 |
| Grid Power Input | kVA/kW | 80/80 |
| Gen Power Input | kVA/kW | 125/100 |
| Solar Power Capacity | kWp | 38.4+38.4 |
| 40′ Loading | qty | 4 |
| Noise Level(hybrid mode) | dBA@7m | 55 |
| Noise Level(battery mode) | dBA@7m | 50 |
| Dry Weight | kg | 2500 |
| Dimensions | mm | 3000*1150*2000 |
Download
BES 80S3 Specification Datasheet
BES 80S3-Specification
Register & Download
BES 80S3 Warranty Manual
BESS Warranty Manual-5 Years-20250924
Register & Download
BES 80S3 Brochure Manual
BESS Brochure Manual-5 Years-20250924
Register & Download
Case & Solution
Energy Storage: Reliable Power for Field Construction Camps

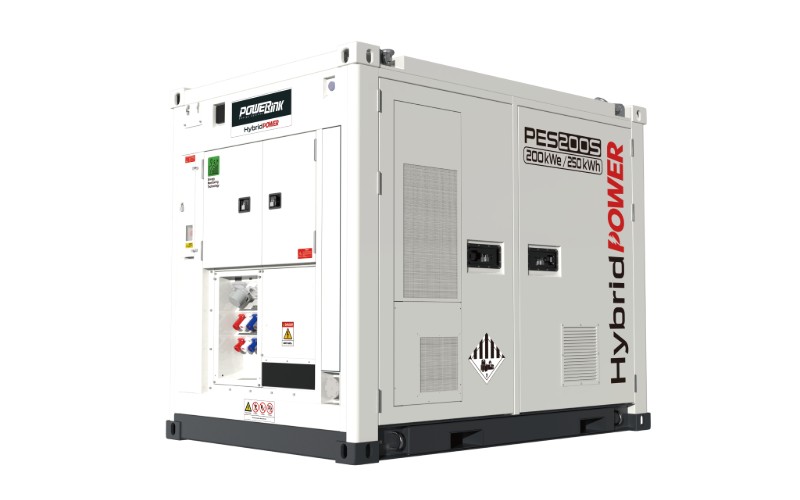

- Equipment: 1*PES500 and BES80S3 Energy Storage Product
- Offering a solution centered on “oil-solar-storage complementarity
- Field : A large field construction camp
- Power Range: 20 KWe to 500 KWe
FAQs
What are the output power and battery capacity specifications of the BES80S3 unit?
Output power of 80 KWe, battery capacity of 101.4 KWh
What is the photovoltaic power generation capacity and diesel generator output of the BES80S3?
It features a photovoltaic power generation capacity of (38.4+38.4) kWp and a diesel generator output power of 125 kVA.
What system design does the BES80S3 adopt, and what kind of energy complementarity can it achieve?
Adopting an integrated design that combines energy storage batteries, photovoltaic modules, and diesel generators, this three-phase power supply unit enables oil-solar-storage complementarity.
What application scenarios is the BES80S3 unit suitable for?
It is suitable for remote islands, mountainous rural areas, field stations, backup power supplies, and other related applications.
