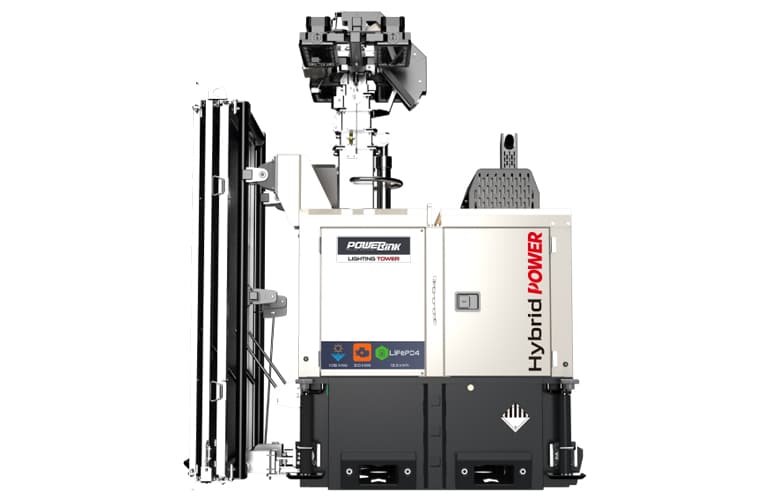

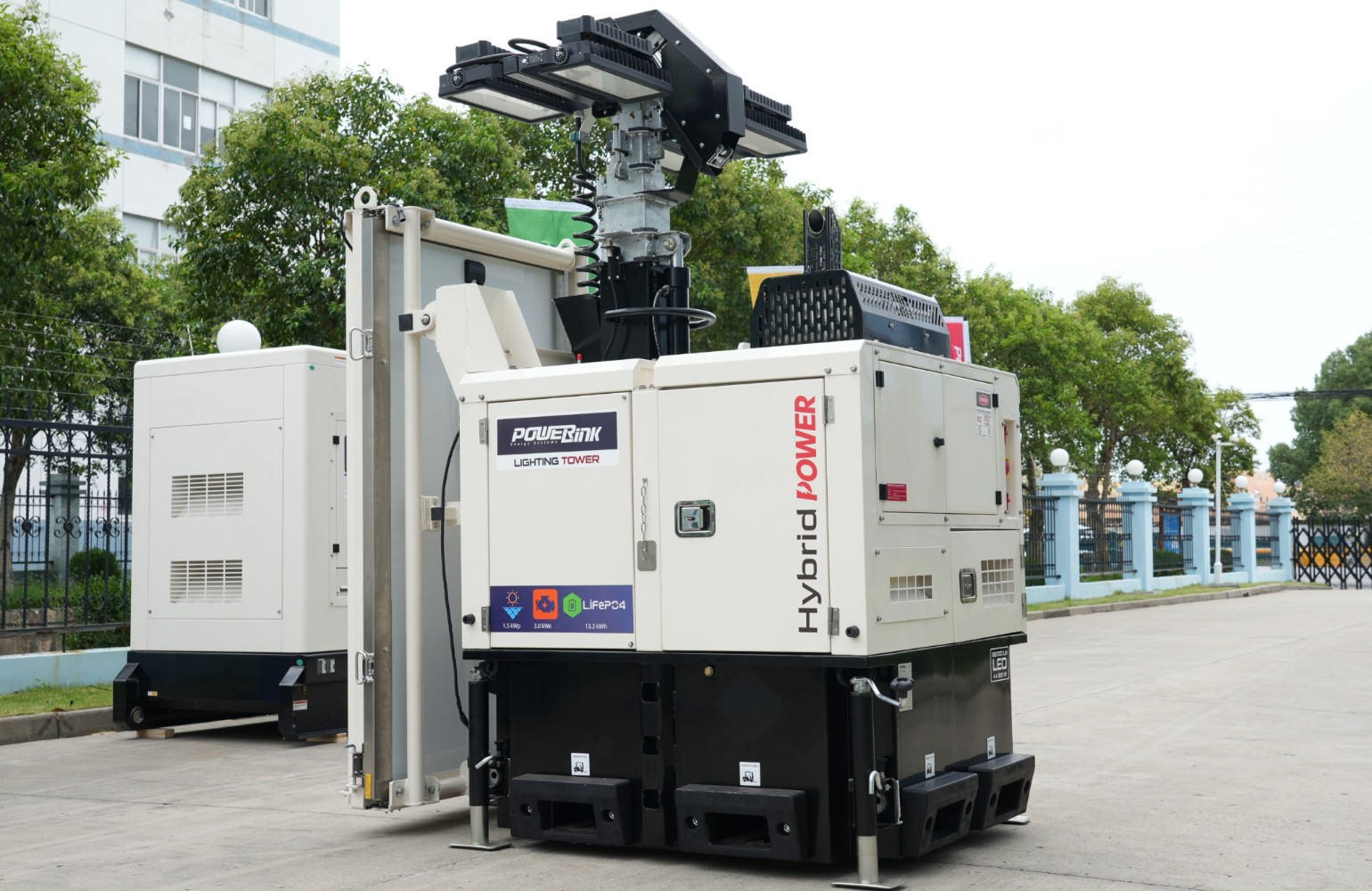

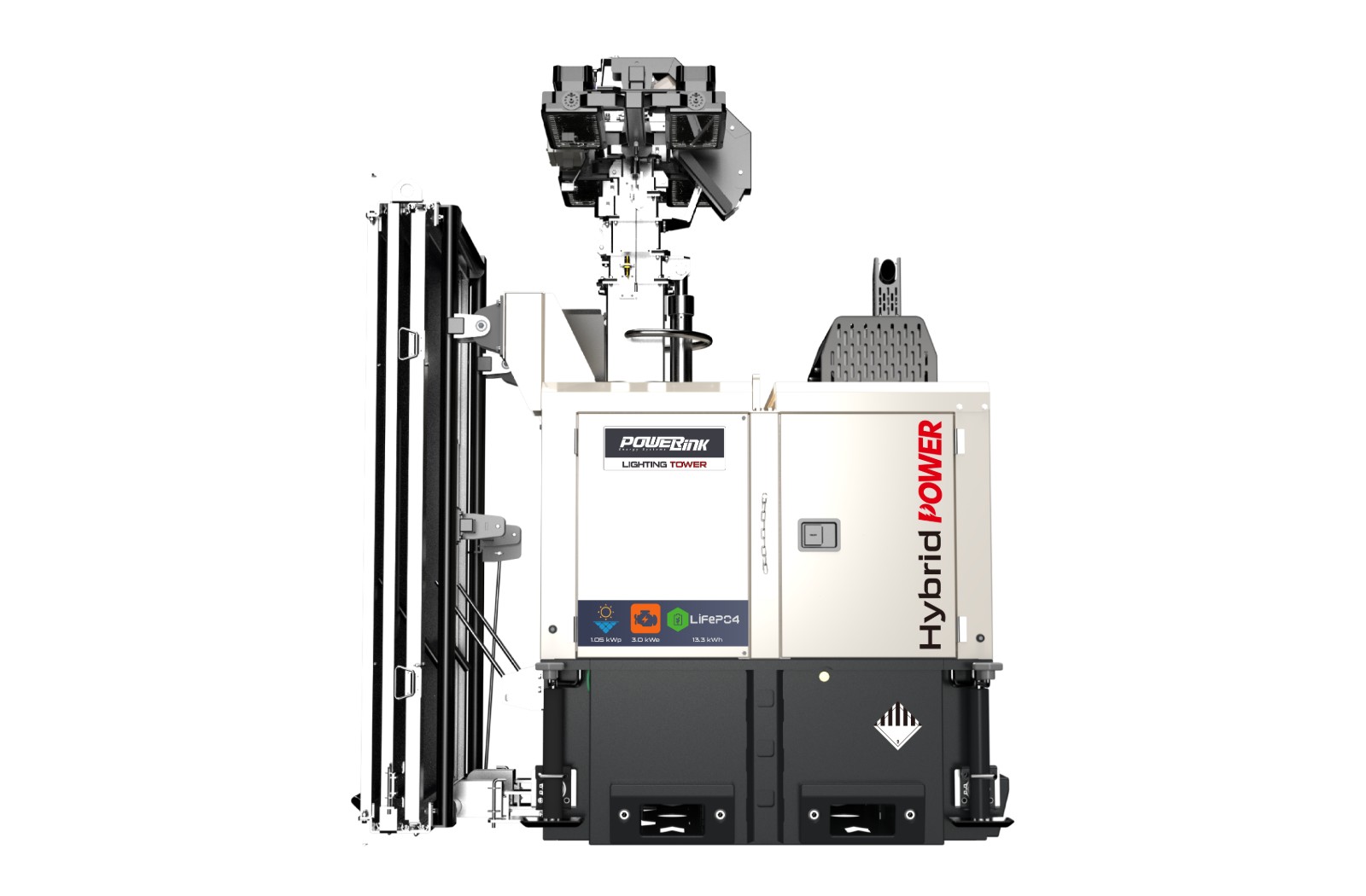

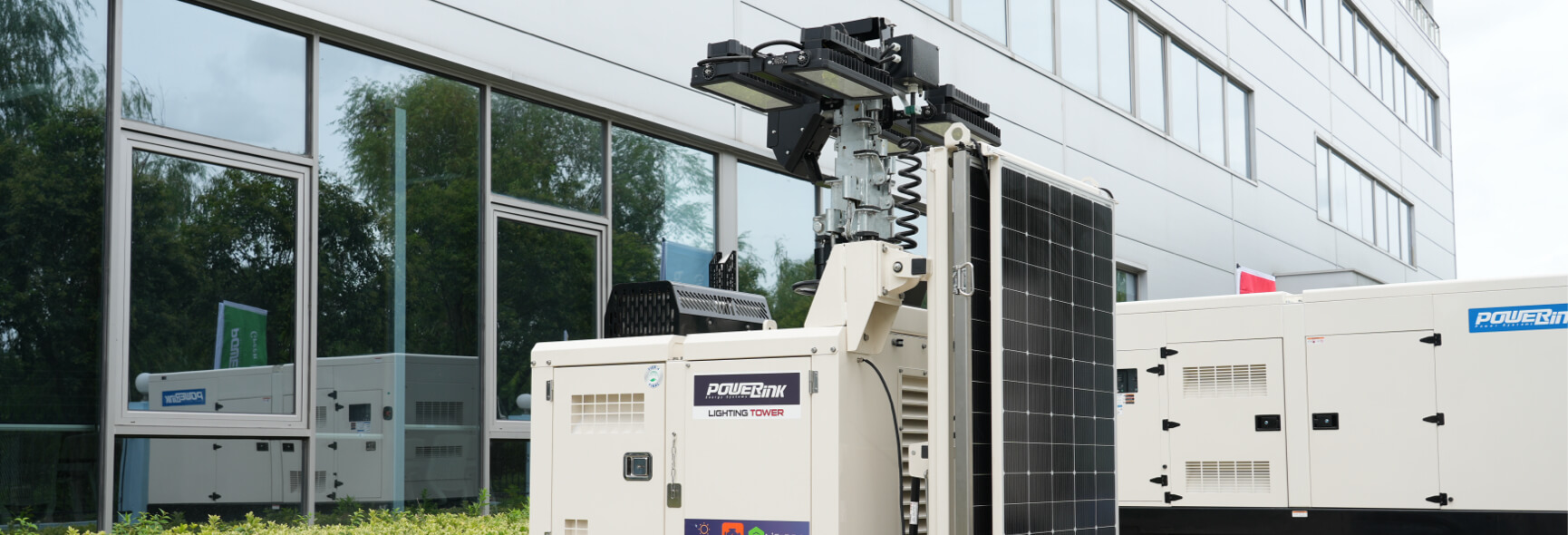

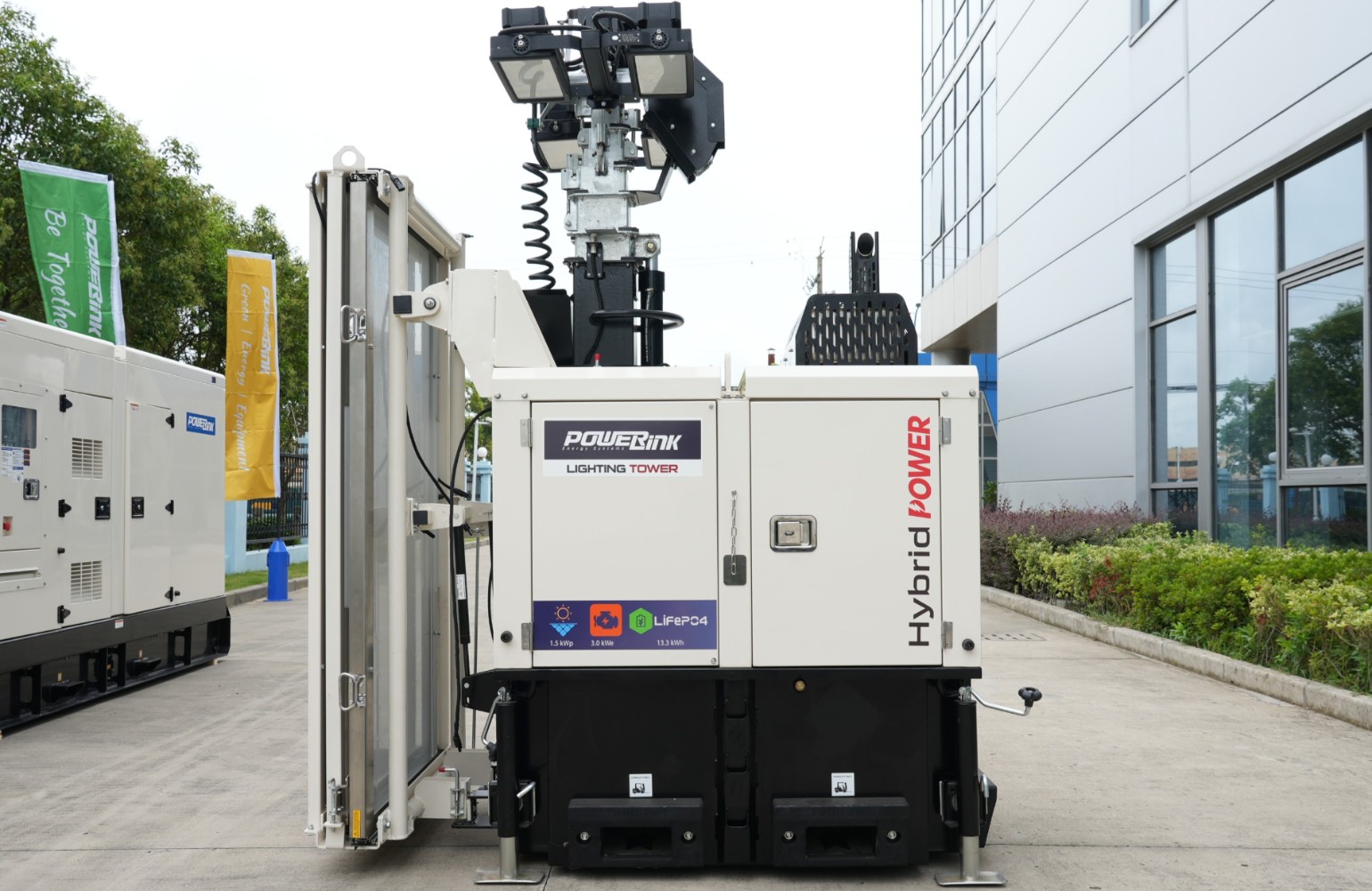

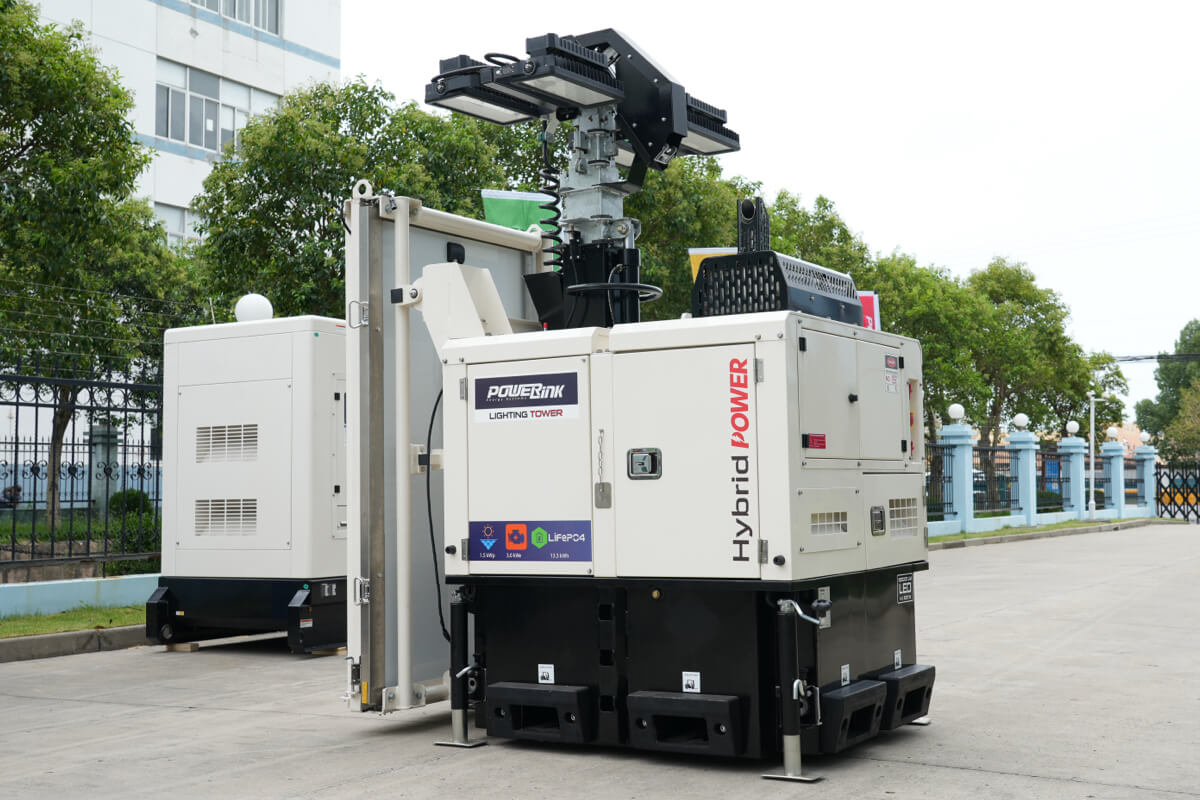

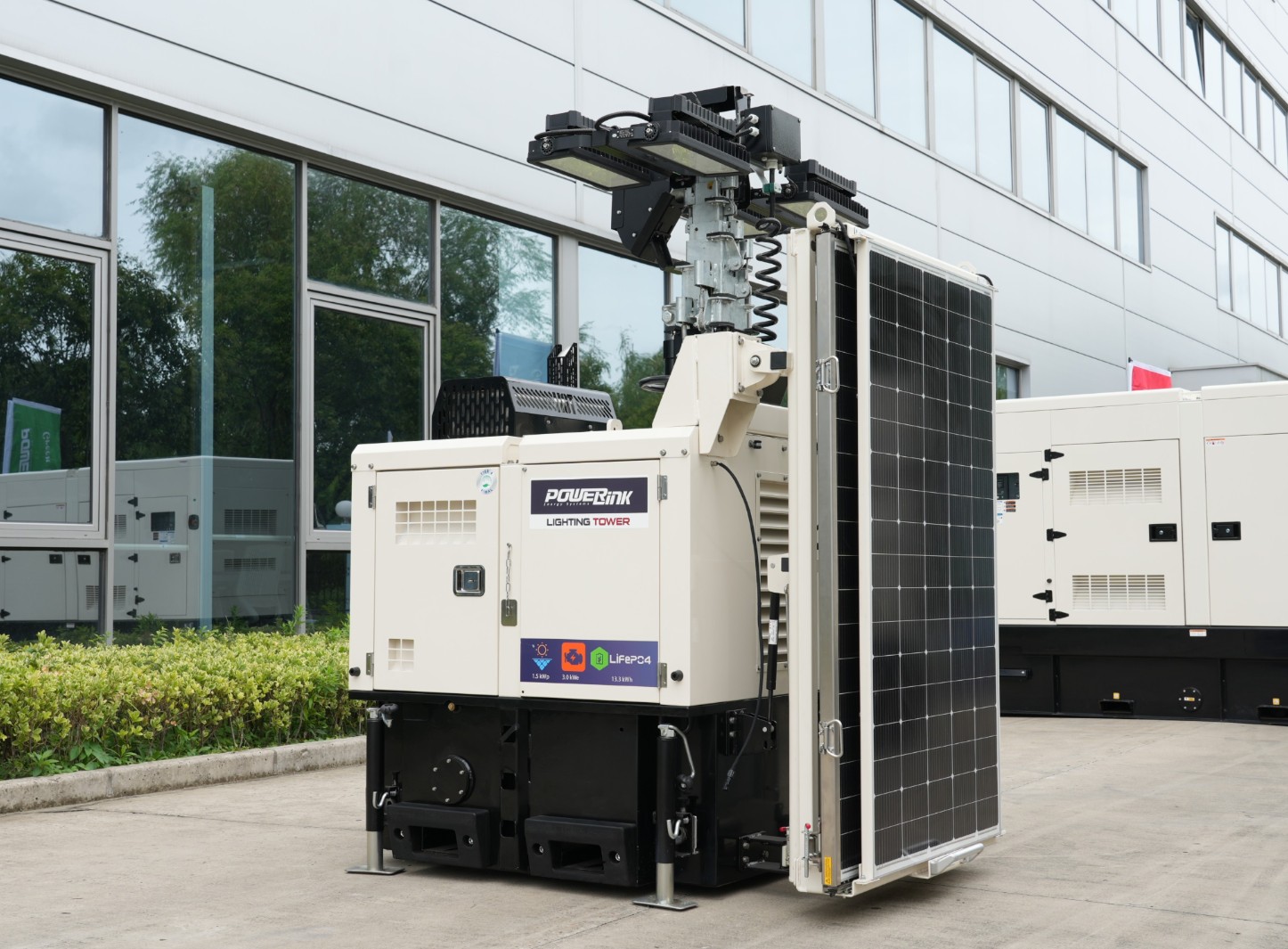

FS2000-HKDC Solar Hybrid Light Tower

This solar hybrid light tower utilizes three distinct energy sources: a 1.05kWp solar panel array for daytime charging, a heavy-duty 13.3kWh energy storage battery, and a highly efficient 3kW DC diesel generator to ensure uninterrupted power under any weather condition. operation modes (manual, automatic, and timed) with light-sensing auto-switching and multi-stage brightness adjustment.

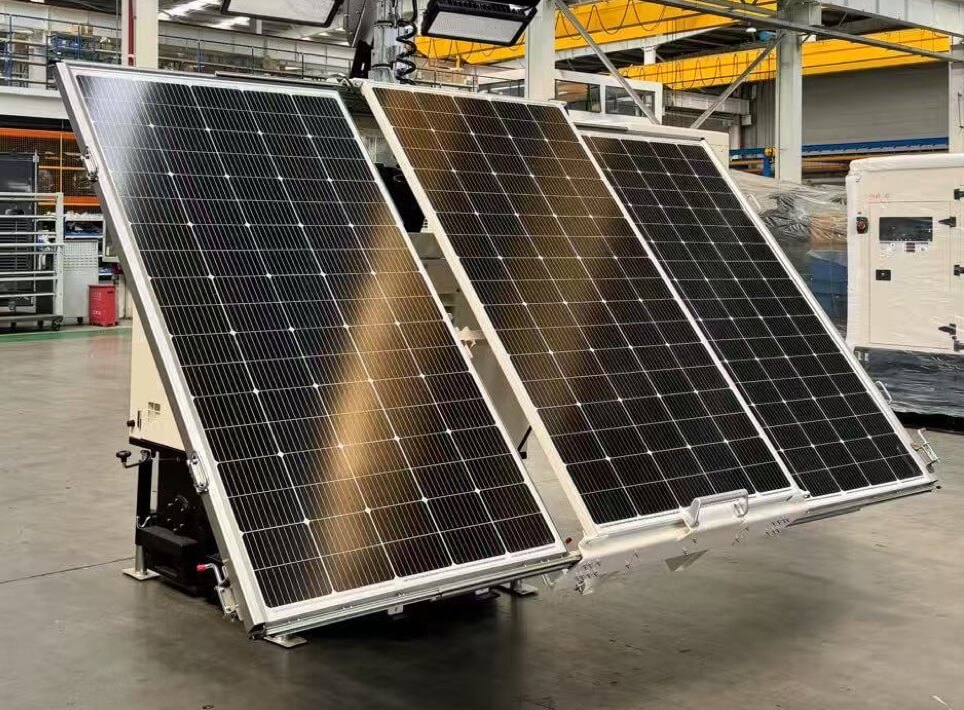

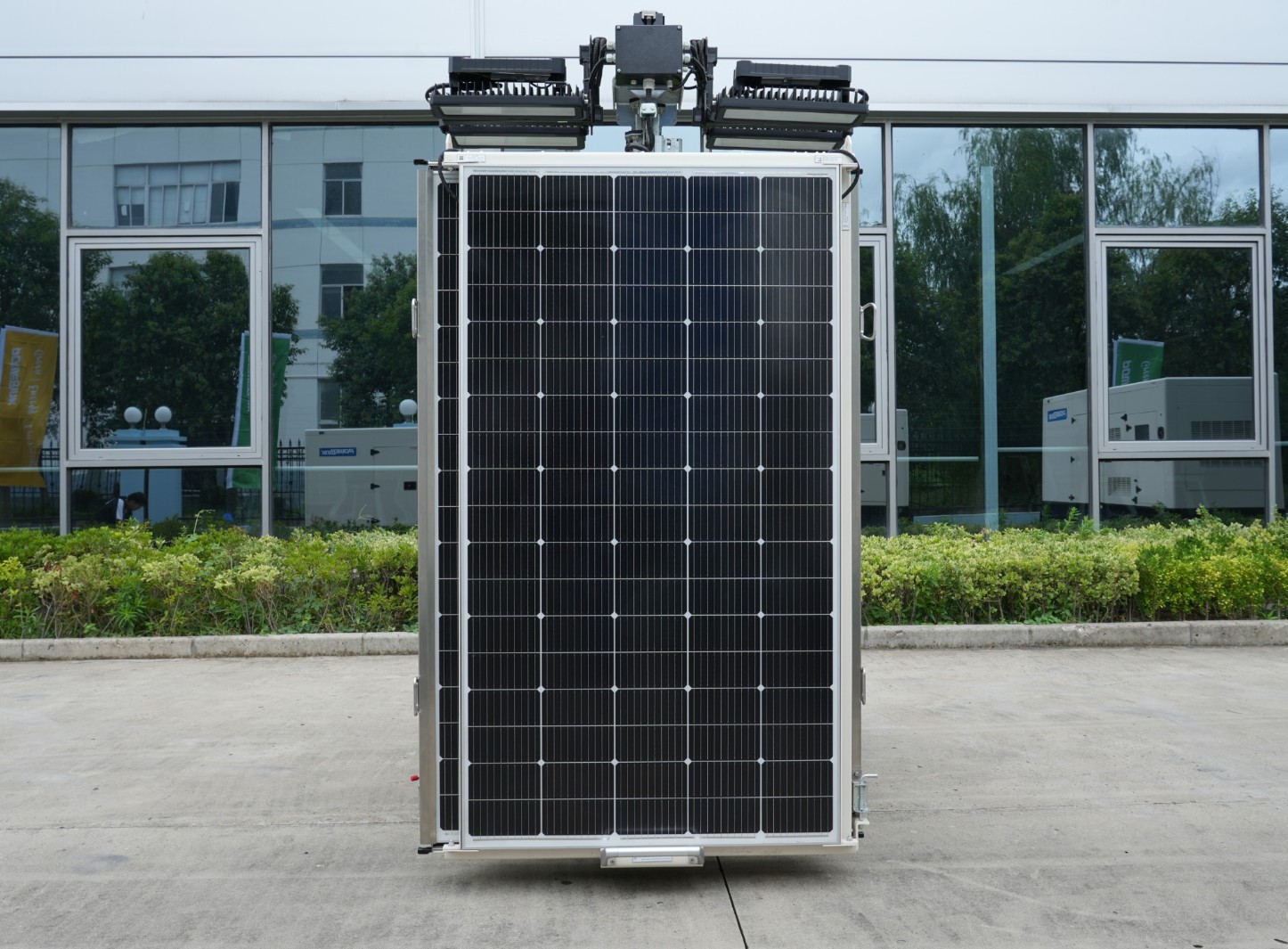

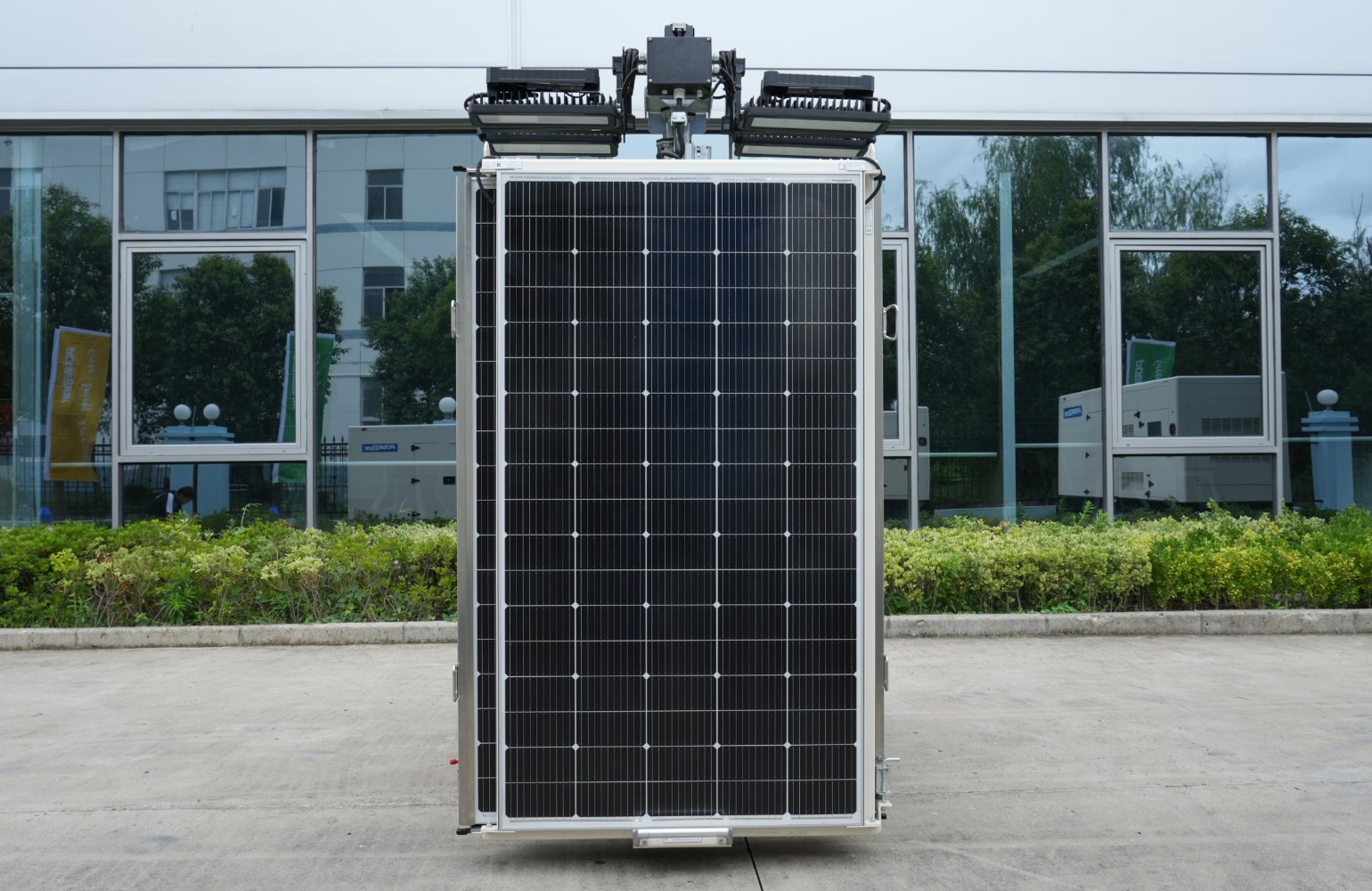

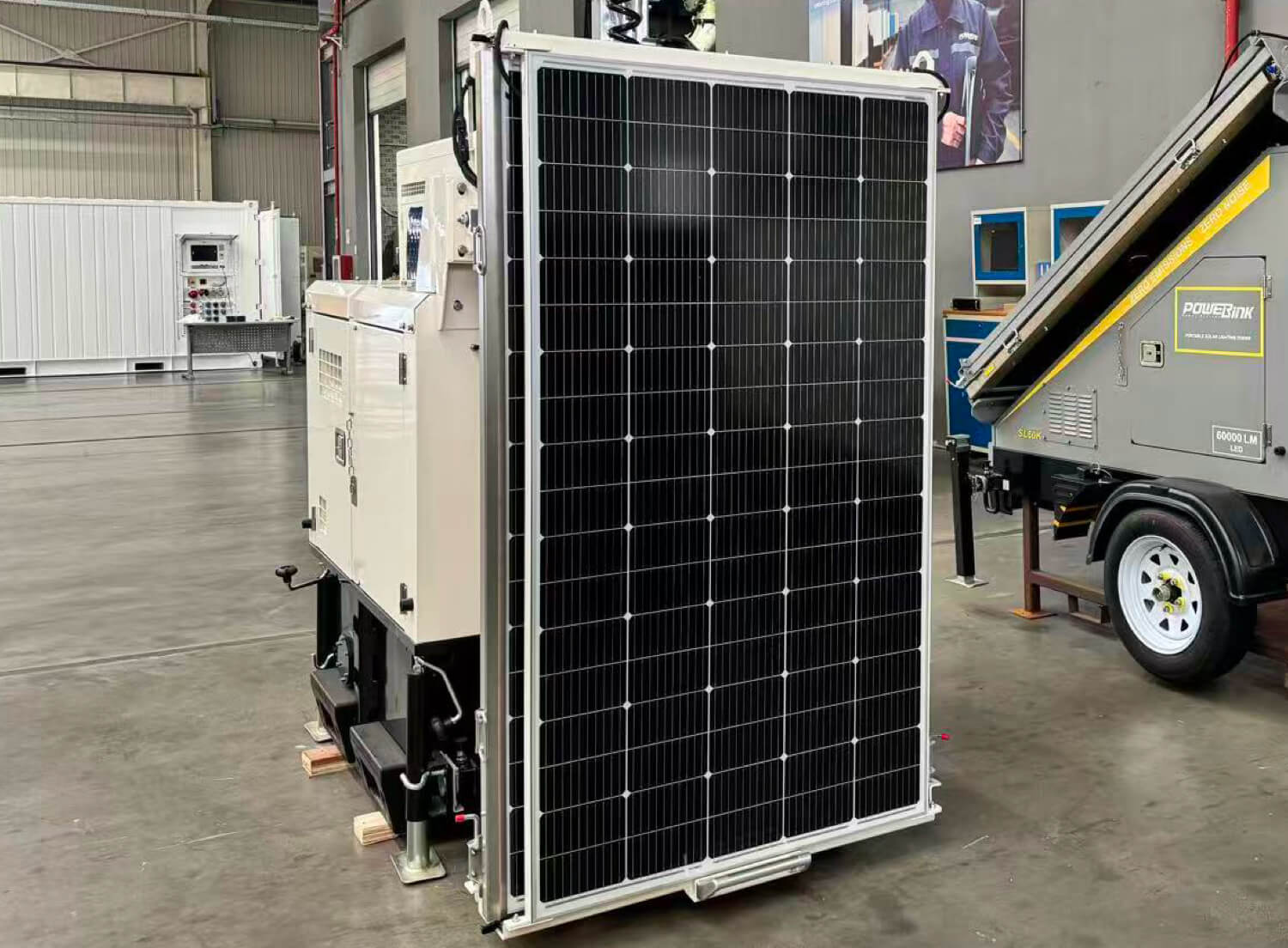

Yes. Under optimal conditions, the 1.05kWp solar panels actively recharge the massive 13.3kWh battery during the day. At night, the unit runs on “Battery-Powered Mode,” providing 100% silent, zero-emission lighting, completely eliminating the need for the diesel generator.

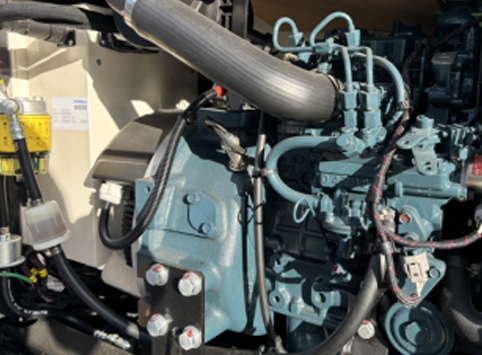

By prioritizing free solar energy and high-capacity battery power, the internal 3kW diesel generator only runs as a backup to top up the battery. This hybrid architecture can reduce fuel consumption and engine wear by up to 80% compared to standard diesel-only models.

Unlike trailer-mounted units, this fixed hybrid solar lighting tower has no tires, axles, or drawbars to maintain, repair, or get stuck in the mud. It is designed to be securely placed by a forklift or crane for long-term projects, offering superior structural durability.

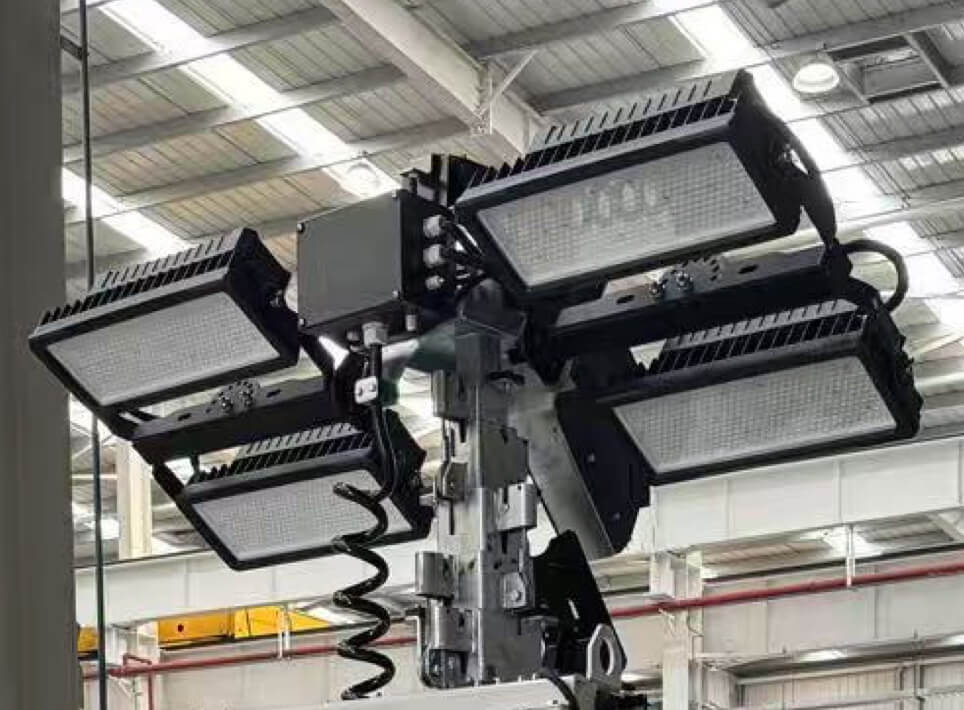

The FS2000-HKDC is equipped with four 320W industrial-grade LED lamps, producing a combined output of 192,000 lumens. This provides massive, flicker-free coverage comparable to traditional metal halide towers but at a fraction of the energy cost.

For maximum operator safety, the tower features a premium hydraulic lifting system. With a single press of a button on the control panel, the mast smoothly extends up to its maximum working height of 8.5 meters.

No. The integrated smart PLC system features light-sensing auto-switching. It will automatically detect ambient light levels, turn the LEDs on at dusk, manage the solar/battery/diesel power sources overnight, and shut down at dawn.

Yes, the intelligent control system supports advanced remote monitoring. Site managers can easily track battery health, solar charging efficiency, fuel levels in the 85L tank, and operational modes via a mobile device or PC.

The compact chassis features standard industrial forklift pockets at the base and heavy-duty hoisting rings on top. This makes loading onto flatbed trucks or packing into sea containers fast, safe, and highly space-efficient.

Yes! If your site demands 100% green energy with zero diesel usage, we highly recommend our purely solar-powered [SL60K Solar Lighting Tower]. If you need a towable hybrid unit, explore the [MS2000-HDKC].
