300 kWe

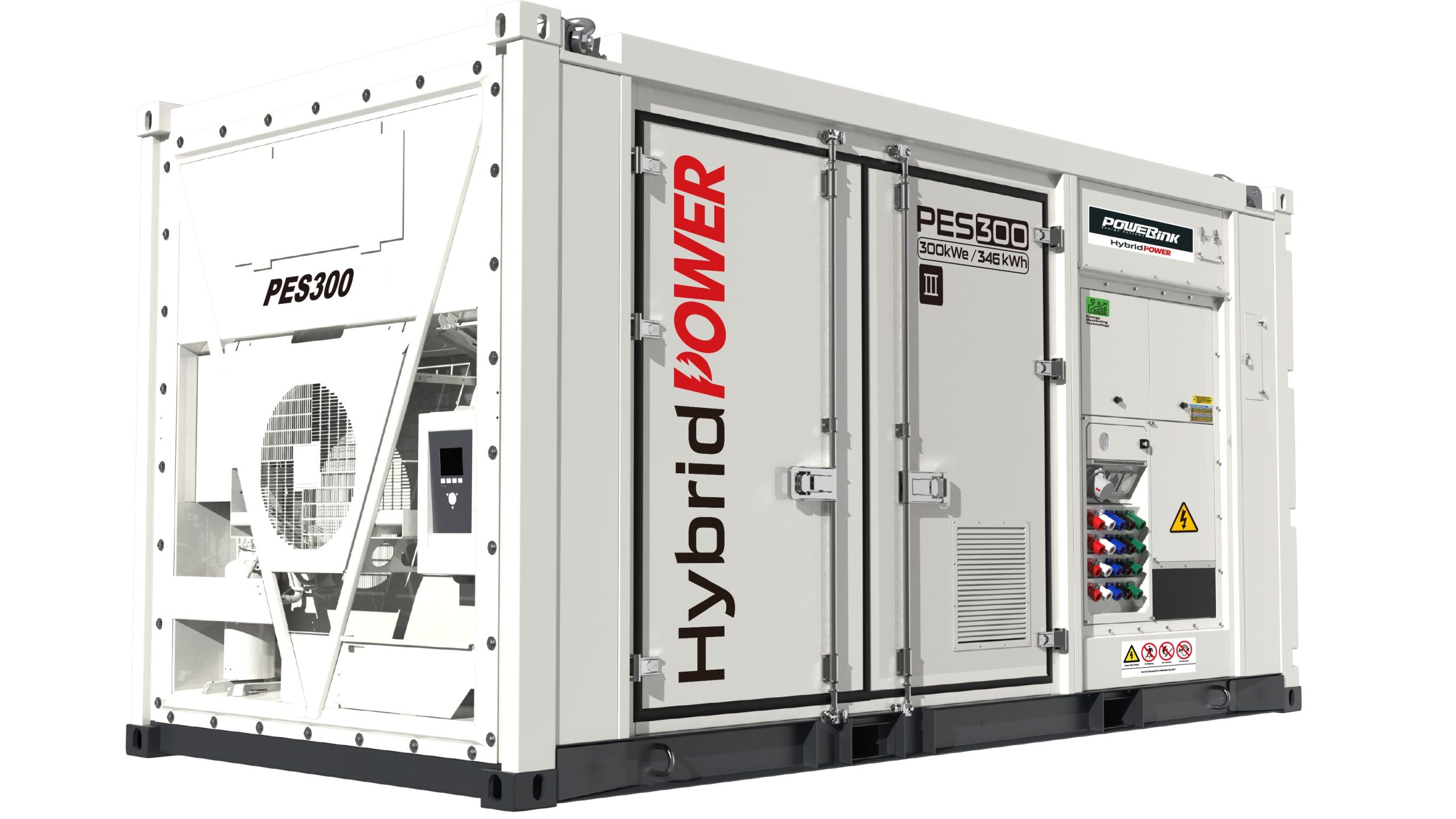

PES 300
PowerLink PES 300—your portable hybrid energy solution designed for low OPEX and high returns. Engineered to thrive in island power, on-site operations, construction sites, mining, and energy rental scenarios, it takes battery power as the core, complemented by PV, diesel genset, and grid inputs. Ideal for uneven load output, it cuts large generator uptime by up to 90%, slashing operational and maintenance costs—with even greater savings when paired with on-site PV arrays.
Modular structure design
Genuine spare parts
Plug-and-Play Convenience
Rugged & Reliable Performance
Features
BMS with Three-Level Management Architecture
Features hierarchical control over battery stacks, clusters, and packs, with a total battery capacity of 115.2kWh for stable energy storage.
Intelligent EMS
Provides real-time monitoring and dispatching of BMS, PCS, and other core systems. Accessible via local HMI, remote APP, or Web portal for hassle-free operation.
Hybrid Energy System
With 300kWe output power, seamlessly integrates multiple energy sources—battery, grid power, diesel generation, and solar PV
Ask an Expert
PowerLink provides tailored, high-efficiency energy solutions for sustainable power around the world.
86-2157-858-099 ext 8820
Specification
| System Output Power | kWe | 300 |
| Output VOLTAGE | V | 380/400/415 |
| Battery Capacity | kWh | 345.6 |
| PV Input | kWp | 110 |
| AC Charger | kW | 3*30 |
| 40′ Loading | qty | 2 |
| Noise Level | dBA@7m | 58 |
| Dry Weight | kg | 9424 |
| Dimensions | mm | 4650*2300*2500 |
Download
PES 300 Specification Datasheet
PES300-Specification
Register & Download
PES 300 Warranty Manual
BESS Warranty Manual-5 Years-20250924
Register & Download
PES 300 Brochure Manual
BESS Brochure Manual-5 Years-20250924
Register & Download
FAQs
What are the output power and battery capacity of the PES300 unit?
Output power: 300 KWe，Battery capacity: 345.6 KWh
What is the rated power of the PV system matched with the PES300 unit?
PV Rated power: 110 KWp
What charging/discharging rate does the battery of the PES300 unit support?
Support 1C charging/discharging
What is the overall protection level of the PES300 unit? And what kind of operating environment is this protection level suitable for?
The overall protection level is IP54, which is suitable for harsh operating conditions.
What are the specifications of the interfaces and their corresponding powers provided by the PES300 unit at the input and output ends of the power connection respectively?
Power connection input: AC socket: 3P / 5W, 1×300 kW, 3×30 kW，AC copper: 3P / 4W, 300 kW，DC socket: 110 kW Power connection output：AC socket: 3P / 5W, 1x300kW，AC socket: 1P, 1x16A; 3P, 1x32A，AC copper: 3P / 4W, 300kW
