LOW-PRESSURE / DISCHARGE PRESSURE：7-8BAR
DIESEL AIR COMPRESSOR
PowerLink’s air compressor is built to perform where it matters most, delivering reliable, high-efficiency compressed air in the harshest environments. With an operating temperature range from -25°C to 50°C, it conquers extreme cold and scorching heat alike, ensuring uninterrupted performance in all seasons and conditions.
For maximum protection, the integrated dual-stage air filtration system safeguards both engine and compressor from contaminants—ideal for dusty job sites. An industrial-grade muffler with condensate drain ensures quiet, clean operation, while the 0–100% variable air output control adjusts seamlessly to demand, optimizing energy use and fuel economy.
Rental
Mining
Factory
Outdoor Constructions
Port
Features
Environmental and Endurance
Ambient temperature adaptability:-25°℃ ~ 50°C.Continuous operation >8h
Core Power and Efficiency

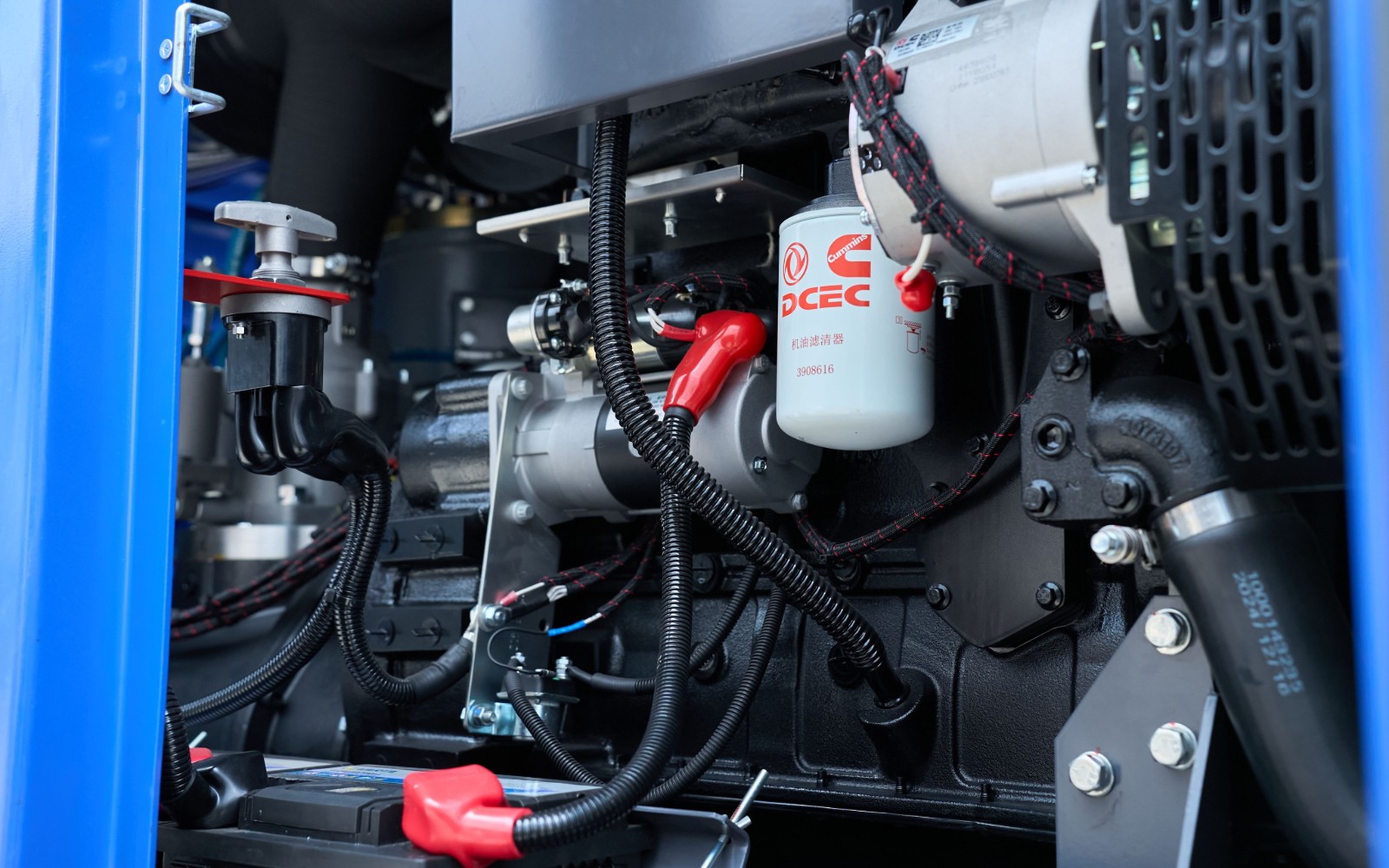

Diesel engine: Efficient, powerful and fuel-saving. Air control system: 0-100% discharge volumesmooth adjustment.
Filtration and Purity
Air filter: Dual protection. Oil-air separator: Oil residue ratio < 3ppm.
Maintenance and Structure

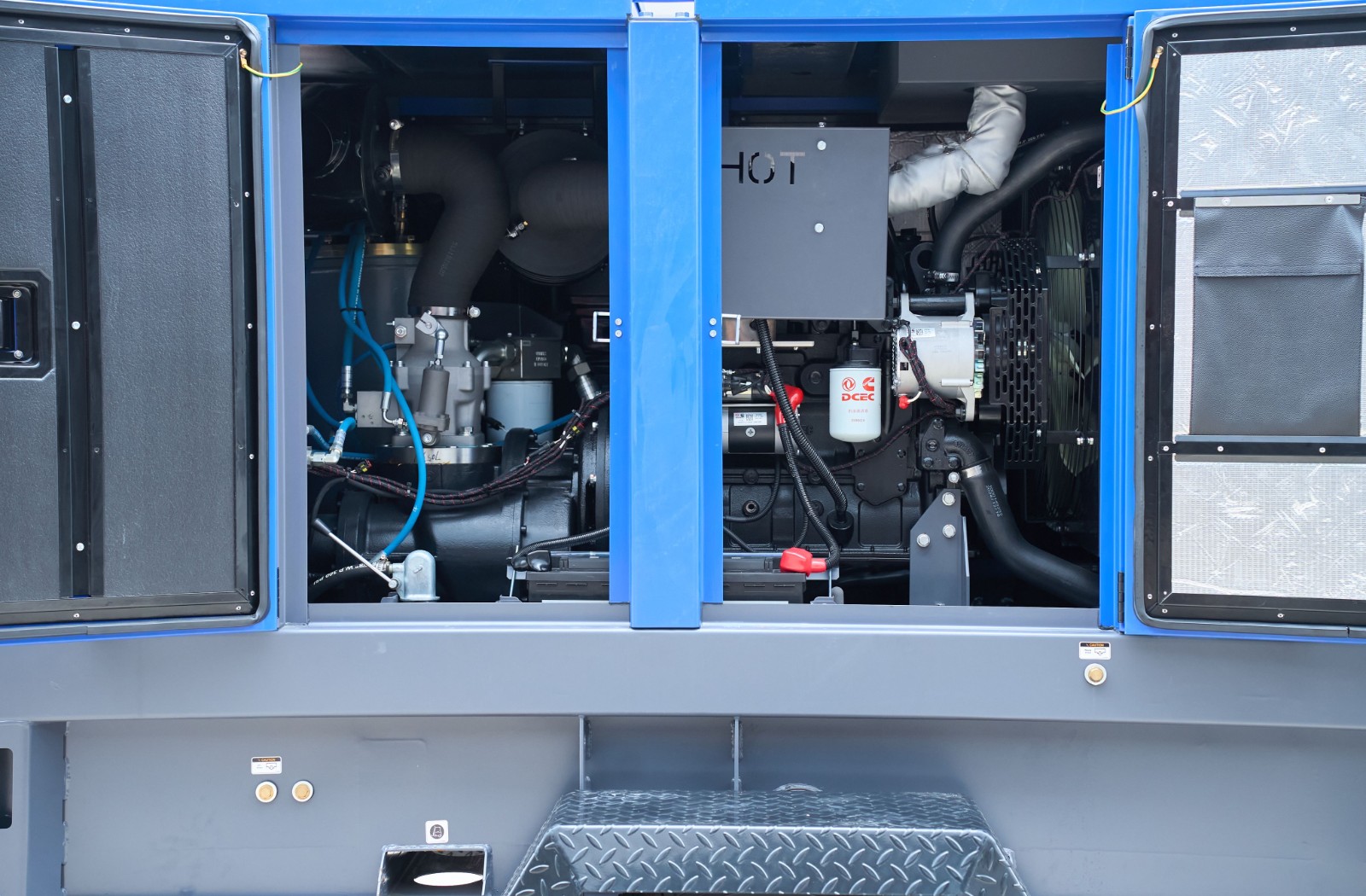

Spacious maintenance door. Dual hanger: Strong structure, safe lifting.
Ask an Expert
PowerLink provides tailored, high-efficiency energy solutions for sustainable power around the world.
86-2157-858-099 ext 8820
Specification

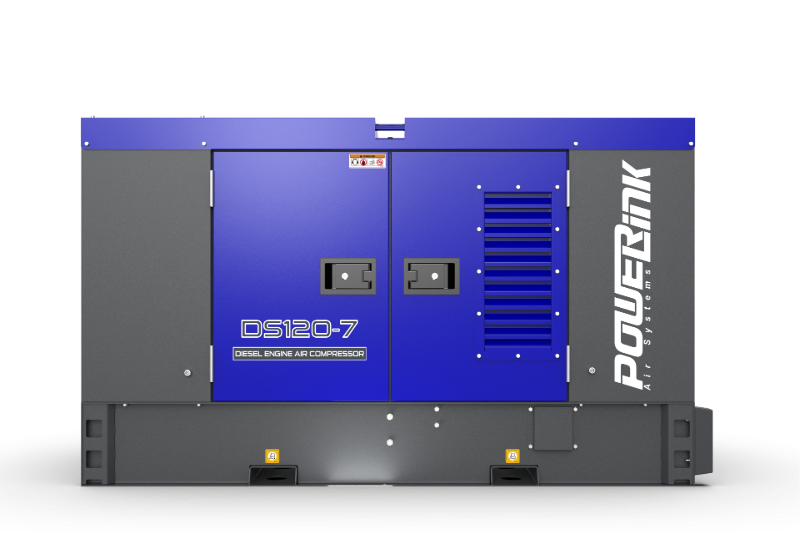

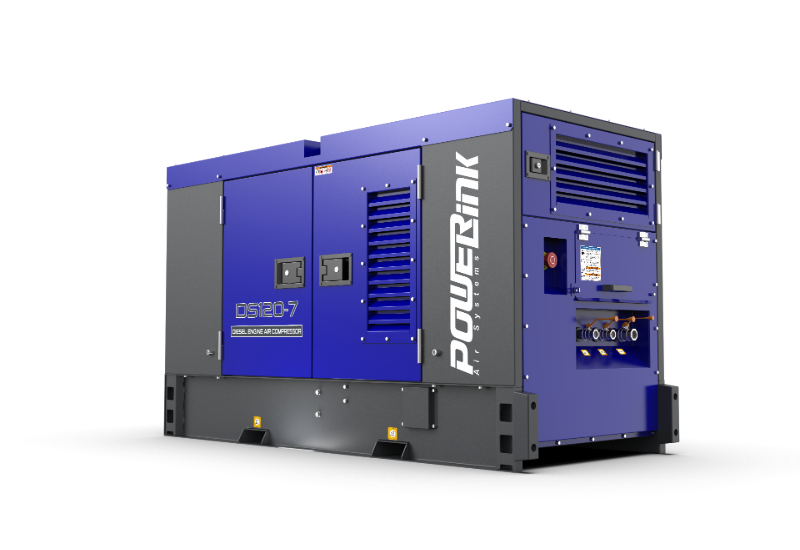

DS120-7
| Speed | rpm | 3000rpm |
| Discharge pressure | bar | 7.0bar |
| Discharge flow | cfm | 123cfm |
| Power | kw | 33 |
| Dimensions | mm | 2201*1104*1007 |
| Tank | L | 75 |
| Weight | kg | 994 |
| Engine brand | / | KUBOTA |
| Structure | / | Single-boom |
DS120-7 Specification Datasheet
Register & DownloadDS120-7 Operation Manual
DS120-7 Parts Manual
DS185-7
| Speed | rpm | 3000rpm |
| Discharge pressure | bar | 7.0bar |
| Discharge flow | cfm | 185cfm |
| Power | kw | 33 |
| Dimensions | mm | 2201*1104*1007 |
| Tank | L | 70 |
| Weight | kg | 993 |
| Engine brand | / | KUBOTA |
| Structure | / | Single-boom |
DS185-7 Specification Datasheet
DS185-7 Operation Manual
DS185-7 Parts Manual
DS200-7
| Speed | rpm | 2700rpm |
| Discharge pressure | bar | 7.0bar |
| Discharge flow | cfm | 199cfm |
| Power | kw | 44 |
| Dimensions | mm | 2107*1099*1004 |
| Tank | L | 80 |
| Weight | kg | 1003 |
| Engine brand | / | KUBOTA |
| Structure | / | Single-boom |
DS200-7 Specification Datasheet
DS200-7 Operation Manual
DS200-7 Parts Manual
DS60-8
| Speed | rpm | 3600rpm |
| Discharge pressure | bar | 8.0bar |
| Discharge flow | cfm | 37cfm |
| Power | kw | 14.9 |
| Dimensions | mm | 1852*923*939 |
| Tank | L | 30 |
| Weight | kg | 697 |
| Engine brand | / | KUBOTA |
| Structure | / | Single-boom |
DS60-8 Specification Datasheet
DS60-8 Operation Manual
DS60-8 Parts Manual
DS80-8
| Speed | rpm | 3000rpm |
| Discharge pressure | bar | 8.0bar |
| Discharge flow | cfm | 66cfm |
| Power | kw | 18.5 |
| Dimensions | mm | 1852*923*939 |
| Tank | L | 30 |
| Weight | kg | 697 |
| Engine brand | / | KUBOTA |
| Structure | / | Single-boom |
DS80-8 Specification Datasheet
DS80-8 Operation Manual
DS80-8 Parts Manual
DS350-8
| Speed | rpm | 2600rpm |
| Discharge pressure | bar | 8.0bar |
| Discharge flow | cfm | 324cfm |
| Power | kw | 74 |
| Dimensions | mm | 2183*1104*1007 |
| Tank | L | 75 |
| Weight | kg | 908 |
| Engine brand | / | KUBOTA |
| Structure | / | Single-boom |
DS350-8 Specification Datasheet
DS350-8 Operation Manual
DS350-8 Parts Manual
DR135-8
| Speed | rpm | 2600rpm |
| Discharge pressure | bar | 8.0bar |
| Discharge flow | cfm | 109cfm |
| Power | kw | 30 |
| Dimensions | mm | 2195*1104*1007 |
| Tank | L | 75 |
| Weight | kg | 1036 |
| Engine brand | / | PowerLink |
| Structure | / | Single-boom |
DR135-8 Specification Datasheet
DR135-8 Operation Manual
DR135-8 Parts Manual
DR200-7
| Speed | rpm | 2700rpm |
| Discharge pressure | bar | 7.0bar |
| Discharge flow | cfm | 198cfm |
| Power | kw | 40 |
| Dimensions | mm | 2173*1004*1007 |
| Tank | L | 75 |
| Weight | kg | 1162 |
| Engine brand | / | PowerLink |
| Structure | / | Single-boom |
DR200-7 Specification Datasheet
DR200-7 Operation Manual
DR200-7 Operation Manual
DR285-8
| Speed | rpm | 2700rpm |
| Discharge pressure | bar | 8.0bar |
| Discharge flow | cfm | 282cfm |
| Power | kw | 55 |
| Dimensions | mm | 2560*1448*1707 |
| Tank | L | 150 |
| Weight | kg | 1565 |
| Engine brand | / | PowerLink |
| Structure | / | Single-boom |
DR285-8 Specification Datasheet
DR285-8 Operation Manual
DR285-8 Parts Manual
DR275-8
| Speed | rpm | 2200rpm |
| Discharge pressure | bar | 8.0bar |
| Discharge flow | cfm | 274cfm |
| Power | kw | 68 |
| Dimensions | mm | 2620*1456*1714 |
| Tank | L | 170 |
| Weight | kg | 1660 |
| Engine brand | / | PowerLink |
| Structure | / | Single-boom |
DR275-8 Specification Datasheet
DR275-8 Operation Manual
DR275-8 Parts Manual
DR400-8
| Speed | rpm | 2200rpm |
| Discharge pressure | bar | 8.0bar |
| Discharge flow | cfm | 424cfm |
| Power | kw | 93 |
| Dimensions | mm | 2560*1340*1570 |
| Tank | L | 240 |
| Weight | kg | 2090 |
| Engine brand | / | DECE |
| Structure | / | Single-boom |
DR400-8 Specification Datasheet
DR400-8 Operation Manual
DR400-8 Parts Manual
DR600-8
| Speed | rpm | 2200rpm |
| Discharge pressure | bar | 8.0bar |
| Discharge flow | cfm | 595cfm |
| Power | kw | 132 |
| Dimensions | mm | 3613*1633*1819 |
| Tank | L | 300 |
| Weight | kg | 2500 |
| Engine brand | / | DECE |
| Structure | / | Single-boom |
DR600-8 Specification Datasheet
DR600-8 Operation Manual
DR600-8 Parts Manual
DR750-8
| Speed | rpm | 1900rpm |
| Discharge pressure | bar | 8.0bar |
| Discharge flow | cfm | 741cfm |
| Power | kw | 176 |
| Dimensions | mm | 3900*1850*1400 |
| Tank | L | 450 |
| Weight | kg | 3550 |
| Engine brand | / | DECE |
| Structure | / | Single-boom |
DR750-8 Specification Datasheet
DR750-8 Operation Manual
DR750-8 Parts Manual
DR950-8
| Speed | rpm | 1900rpm |
| Discharge pressure | bar | 8.0bar |
| Discharge flow | cfm | 844cfm |
| Power | kw | 195 |
| Dimensions | mm | 3900*1850*1400 |
| Tank | L | 450 |
| Weight | kg | 3205 |
| Engine brand | / | DECE |
| Structure | / | Single-boom |
DR950-8 Specification Datasheet
DR950-8 Operation Manual
DR950-8 Parts Manual
DR1200-8
| Speed | rpm | 1900rpm |
| Discharge pressure | bar | 8.0bar |
| Discharge flow | cfm | 1183cfm |
| Power | kw | 250 |
| Dimensions | mm | 4697*2150*2462 |
| Tank | L | 780 |
| Weight | kg | 5231 |
| Engine brand | / | DECE |
| Structure | / | Double-boom |
DR1200-8 Specification Datasheet
DR1200-8 Operation Manual
DR1200-8 Parts Manual
DR1250-8
| Speed | rpm | 2000rpm |
| Discharge pressure | bar | 8.0bar |
| Discharge flow | cfm | 1243cfm |
| Power | kw | 256 |
| Dimensions | mm | 4697*2150*2462 |
| Tank | L | 780 |
| Weight | kg | 5231 |
| Engine brand | / | DECE |
| Structure | / | Double-boom |
DR1250-8 Specification Datasheet
DR1250-8 Operation Manual
DR1250-8 Parts Manual
