400 kWe

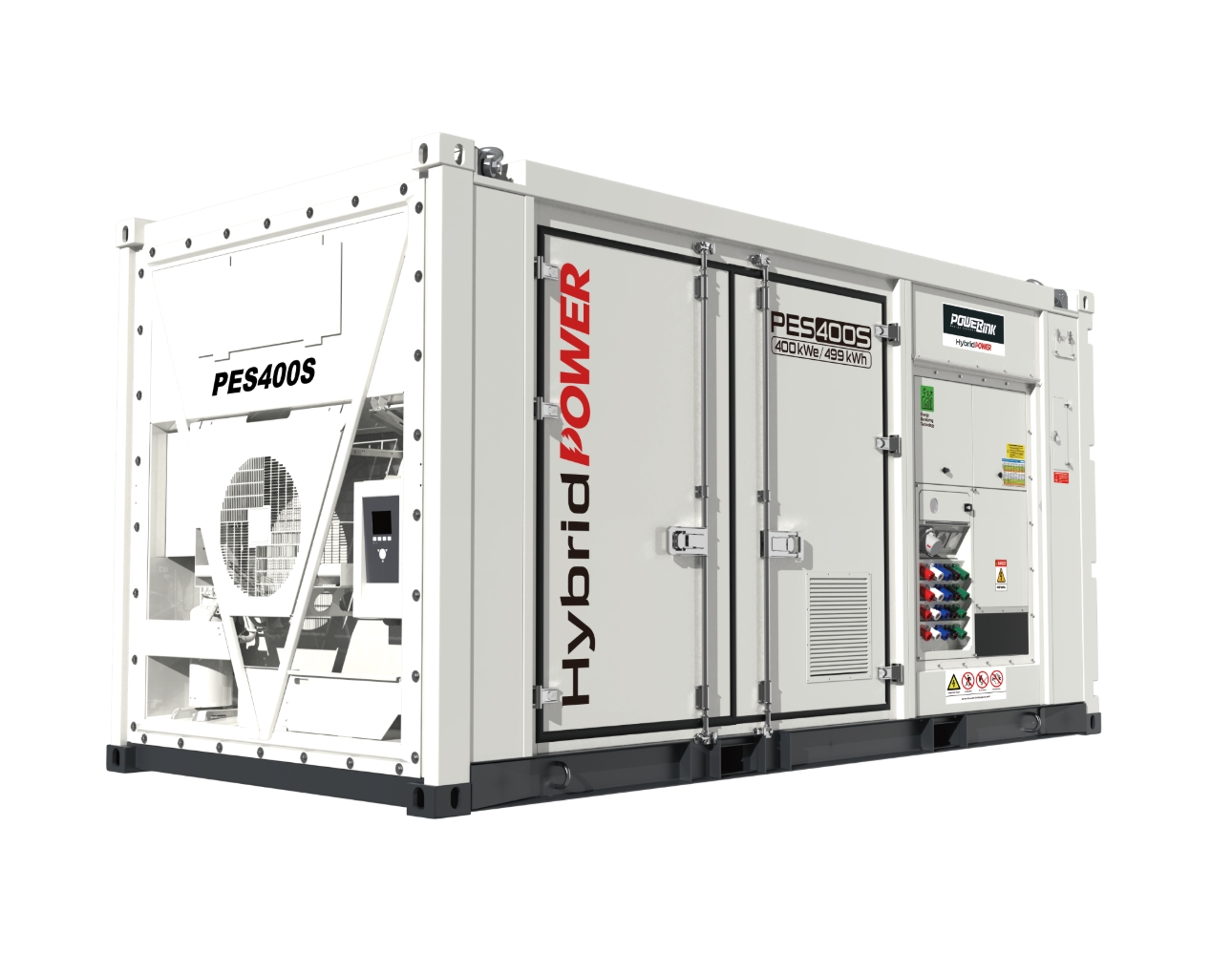

PES 400
PowerLink PES400—Adaptive hybrid power platform targeting low OPEX and high profitability. Deployable in island energy networks, temporary worksites, infrastructure projects, resource extraction zones, and rental applications, it centers on battery storage while blending solar, diesel, and grid support. Ideal for variable power loads, it reduces generator uptime drastically (up to 90%), lowering costs—amplified efficiency when paired with photovoltaic arrays.
Modular structure design
Genuine spare parts
Plug-and-Play Convenience
Rugged & Reliable Performance
Features
BMS with Three-Level Management Architecture
Features hierarchical control over battery stacks, clusters, and packs, with a total battery capacity of 115.2kWh for stable energy storage.
Intelligent EMS
Provides real-time monitoring and dispatching of BMS, PCS, and other core systems. Accessible via local HMI, remote APP, or Web portal for hassle-free operation.

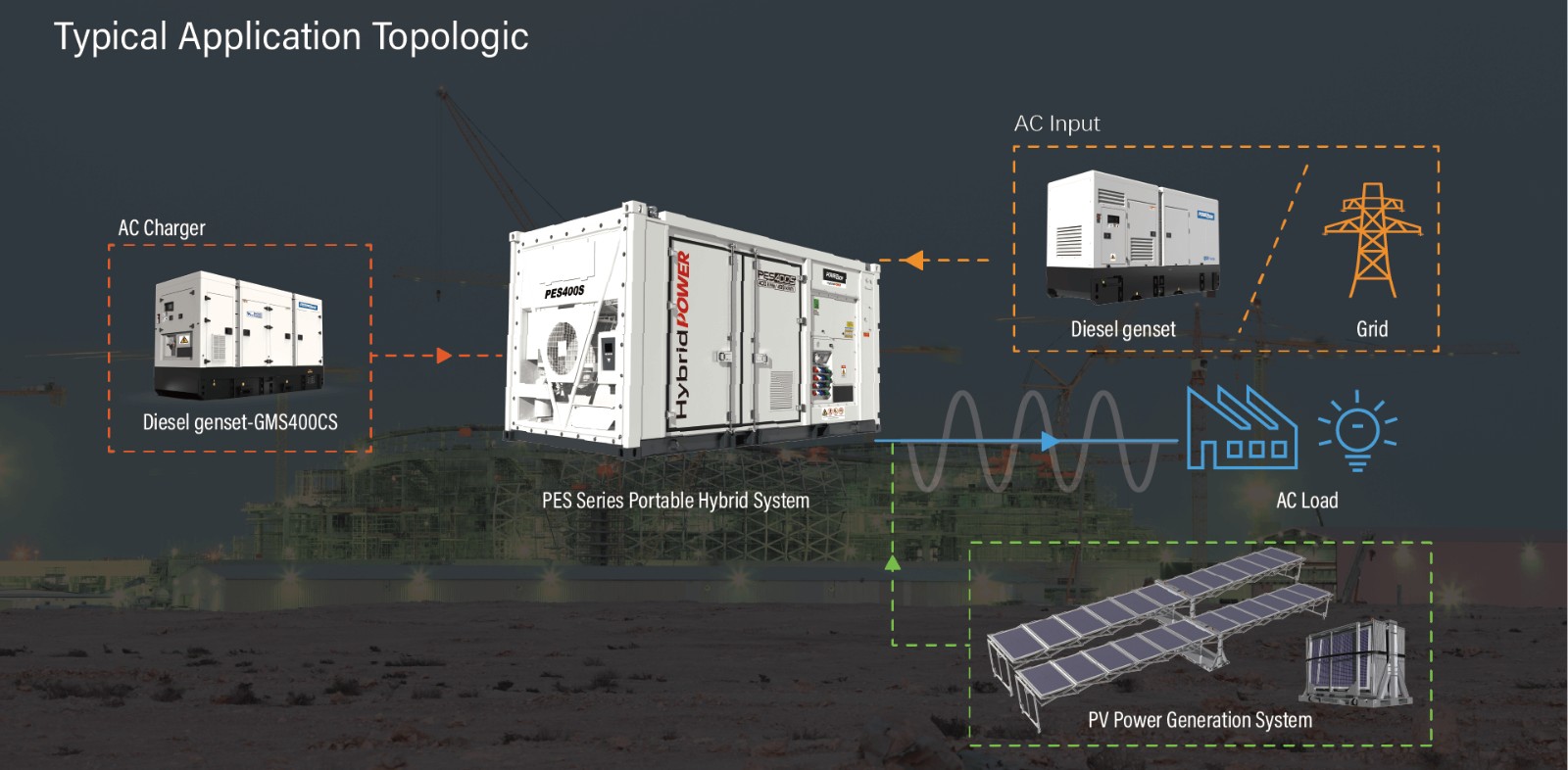

Hybrid Energy System
With 400kWe output power, seamlessly integrates multiple energy sources—battery, grid power, diesel generation, and solar PV
Ask an Expert
PowerLink provides tailored, high-efficiency energy solutions for sustainable power around the world.
86-2157-858-099 ext 8820
Specification
| System Output Power | kWe | 400 |
| Output VOLTAGE | V | 380/400/415 |
| Battery Capacity | kWh | 460.8 |
| PV Input | kWp | 110 |
| AC Charger | kW | 4*20 |
| 40′ Loading | qty | 1 |
| Noise Level | dBA@7m | 58 |
| Dry Weight | kg | 12000 |
| Dimensions | mm | 4650*2300*2500 |
Download
PES 400 Specification Datasheet
PES400-Specification
Register & Download
PES 400 Warranty Manual
BESS Warranty Manual-5 Years-20250924
Register & Download
PES 400 Brochure Manual
BESS Brochure Manual-5 Years-20250924
Register & Download
FAQs
What are the output power and battery capacity of the PES400 unit?
Output power: 400 KWe，Battery capacity：460.8 KWh
What is the rated power of the PV system matched with the PES400 unit?
PV Rated power: 110 KWp
What charging/discharging rate does the battery of the PES400 unit support?
Support 1C charging / discharging
What is the overall protection level of the PES400 unit? And what kind of operating environment is this protection level suitable for?
The overall protection level is IP54, which is suitable for harsh operating conditions.
What are the specifications of the interfaces and their corresponding powers provided by the PES400 unit at the input and output ends of the power connection respectively?
Power connection input: AC socket: 3P/5W, 1×400 kW, 4x20kW，AC copper: 3P / 4W, 400 kW，DC socket: 110 kW Power connection output：AC socket: 3P / 5W, 1x400kW，AC socket: 1P, 1x16A; 3P, 1x32A，AC copper: 3P/4W, 400kW
