MEDIUM-PRESSURE / DISCHARGE PRESSURE:10-10.5BAR

DIESEL AIR COMPRESSOR

A high-capacity fuel tank with built-in fuel gauge and electronic sensor supports over 8 hours of continuous operation, making it ideal for remote sites, extended shifts, and unattended applications.

Equipped with an intelligent PLC control system, the compressor enables real-time monitoring, automatic safety shutdowns, and enhanced operational reliability. The four-wheel drive mobile system with foldable design and large turning radius ensures superior manoeuvrability on rough terrain and easy transport.

Diesel Air Compressor Medium-Pressure
Diesel Air Compressor Medium-Pressure
Diesel Air Compressor Medium-Pressure
Commited to Service

Rental

Commited to Service

Mining

Commited to Service

Factory

Commited to Service

Outdoor Constructions

Commited to Service

Port

Features

Environmental Adaptability

Ambient temperature adaptability:-25°℃~ 50°℃. Radiator: With high-temp, protection meshsuitable for 50°℃ ambient temp.

Core Power Components

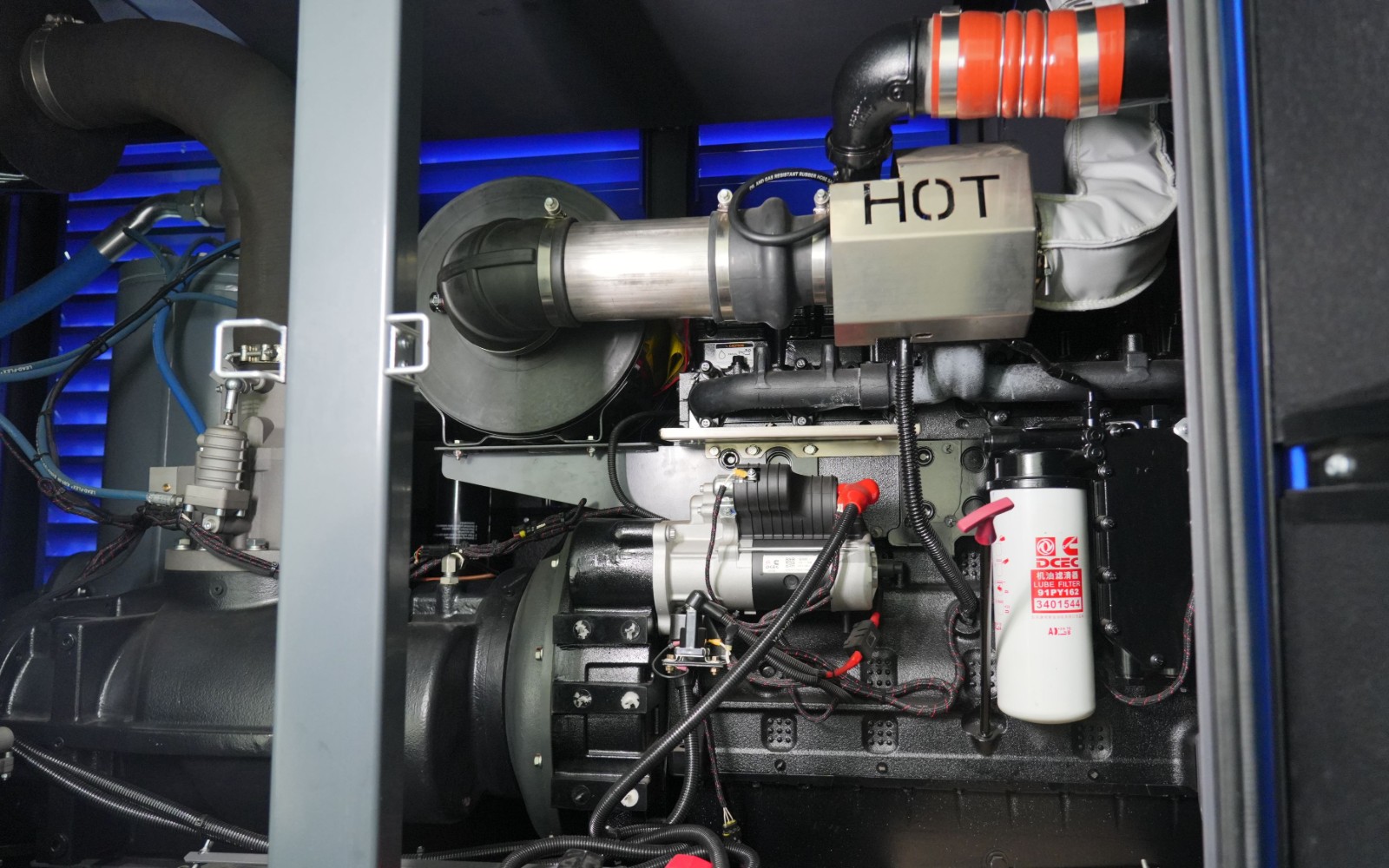

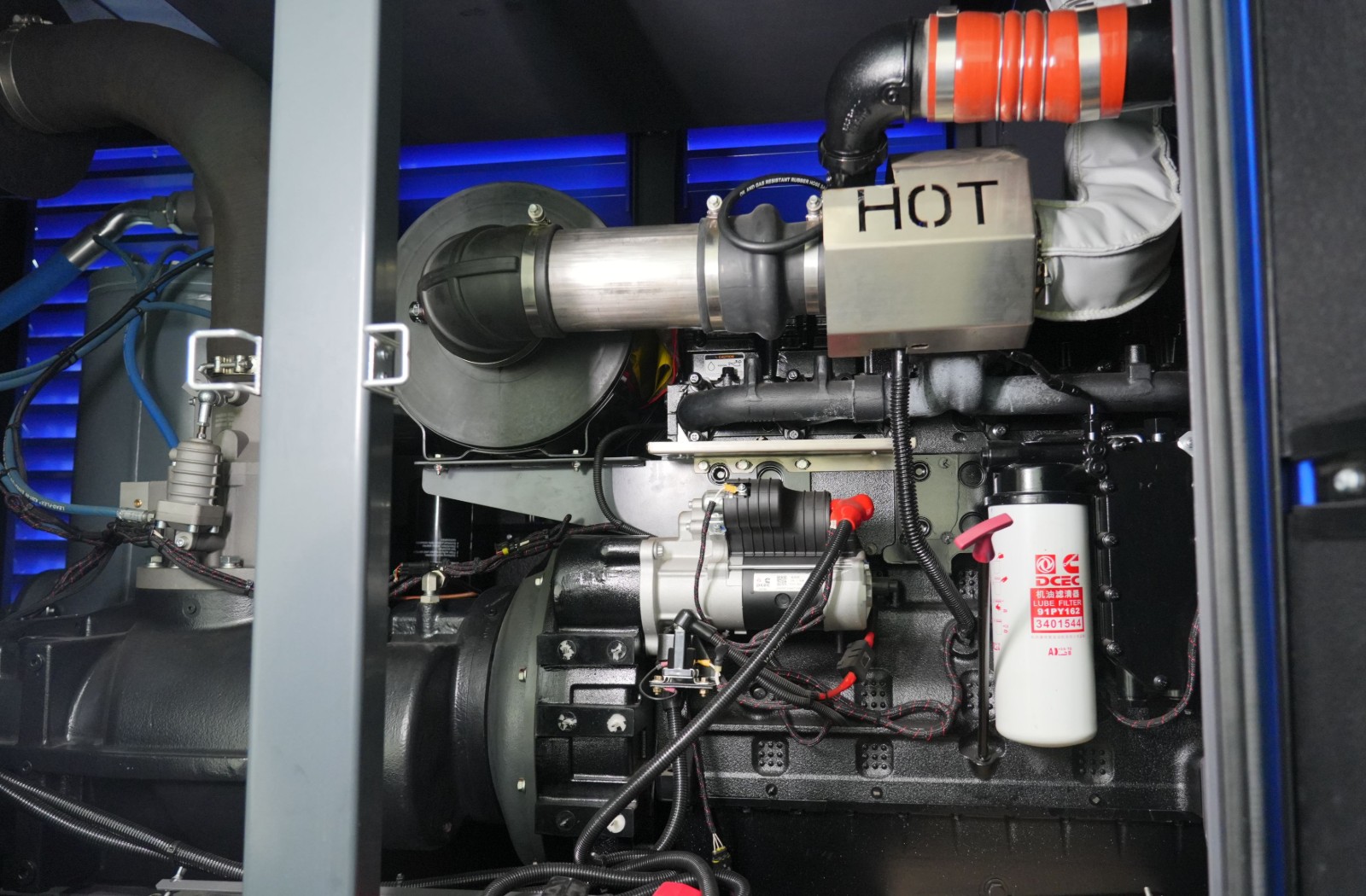

Diesel engine: Efficient, powerful and fuel-saving. Compressor: Oil-injected double-screw rotor.

Durability and Filtration

Chassis: Strong structure, reliable and durable. Air filter: Dual protection for engine and compressor.

Maintenance and Mobility

Removable drawbar, adjustable towing ring height. Forklift channel.

Ask an Expert

PowerLink provides tailored, high-efficiency energy solutions for sustainable power around the world.

Specification

DS120-10
DS200-10
DS250-10
DS200-12.5
DS285-12.5
DR135-10
DR400-10
DR520-10
DR750-10
DR950-10

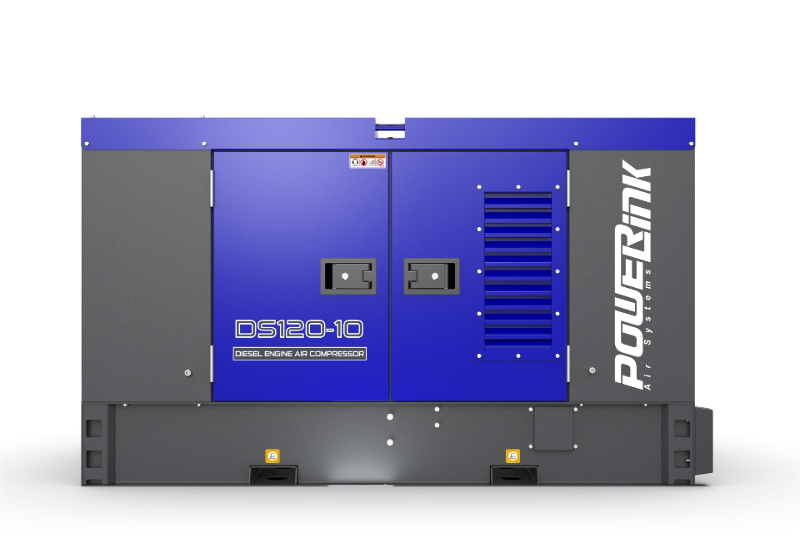

DS120-10

DS120-10



Speed rpm 3000rpm
Discharge pressure bar 10.0bar
Discharge flow cfm 122cfm
Power kw 33
Dimensions mm 2107*1099*1004
Tank L 80
Weight kg 1003
Engine brand / KUBOTA
Structure / Single-jib



DS120-10 Specification Datasheet

DS120-10 Operation Manual

DS120-10 Parts Manual

DS200-10

DS200-10



Speed rpm 2700rpm
Discharge pressure bar 10.0bar
Discharge flow cfm 198cfm
Power kw 44
Dimensions mm 2078*1104*1004
Tank L 60
Weight kg 1032
Engine brand / KUBOTA
Structure / Single-jib





DS200-10 Specification Datasheet

DS200-10 Operation Manual

DS200-10 Parts Manual

DS250-10

DS250-10



Speed rpm 2600rpm
Discharge pressure bar 10.0bar
Discharge flow cfm 240cfm
Power kw 63
Dimensions mm 2107*1104*1004
Tank L 80
Weight kg 1041
Engine brand / KUBOTA
Structure / Single-jib





DS250-10 Specification Datasheet

DS250-10 Operation Manual

DS250-10 Parts Manual

DS200-12.5

DS200-12.5



Speed rpm 2600rpm
Discharge pressure bar 12.5bar
Discharge flow cfm 189cfm
Power kw 63
Dimensions mm 2107*1104*1004
Tank L 80
Weight kg 1041
Engine brand / KUBOTA
Structure / Single-jib





DS200-12.5 Specification Datasheet

DS200-12.5 Operation Manual

DS200-12.5 Parts Manual

DS285-12.5

DS285-12.5



Speed rpm 2600rpm
Discharge pressure bar 12.5bar
Discharge flow cfm 287cfm
Power kw 74
Dimensions mm 2183*1104*1007
Tank L 75
Weight kg 908
Engine brand / KUBOTA
Structure / Single-jib





DS285-12.5 Specification Datasheet

DS285-12.5 Operation Manual

DS285-12.5 Parts Manual

DR135-10

DR135-10



Speed rpm 2700rpm
Discharge pressure bar 10.0bar
Discharge flow cfm 133cfm
Power kw 40
Dimensions mm 2173*1104*1007
Tank L 75
Weight kg 1162
Engine brand / PowerLink
Structure / Single-jib



DR135-10 Specification Datasheet

DR135-10 Operation Manual

DR135-10 Parts Manual

DR400-10

DR400-10



Speed rpm 2200rpm
Discharge pressure bar 10.0bar
Discharge flow cfm 314cfm
Power kw 93
Dimensions mm 2560*1340*1570
Tank L 240
Weight kg 1830
Engine brand / DECE
Structure / Single-jib



DR400-10 Specification Datasheet

DR400-10 Operation Manual

DR400-10 Parts Manual

DR520-10

DR520-10



Speed rpm 2200rpm
Discharge pressure bar 10.0bar
Discharge flow cfm 521cfm
Power kw 132
Dimensions mm 2676*1456*1570
Tank L 230
Weight kg 1736
Engine brand / DECE
Structure / Single-jib



DR520-10 Specification Datasheet

DR520-10 Operation Manual

DR520-10 Parts Manual

DR750-10

DR750-10



Speed rpm 1900rpm
Discharge pressure bar 10.0bar
Discharge flow cfm 731cfm
Power kw 176
Dimensions mm 4038*1500*1850
Tank L 450
Weight kg 3184
Engine brand / DECE
Structure / Single-jib



DR750-10 Specification Datasheet

DR750-10 Operation Manual

DR750-10 Parts Manual

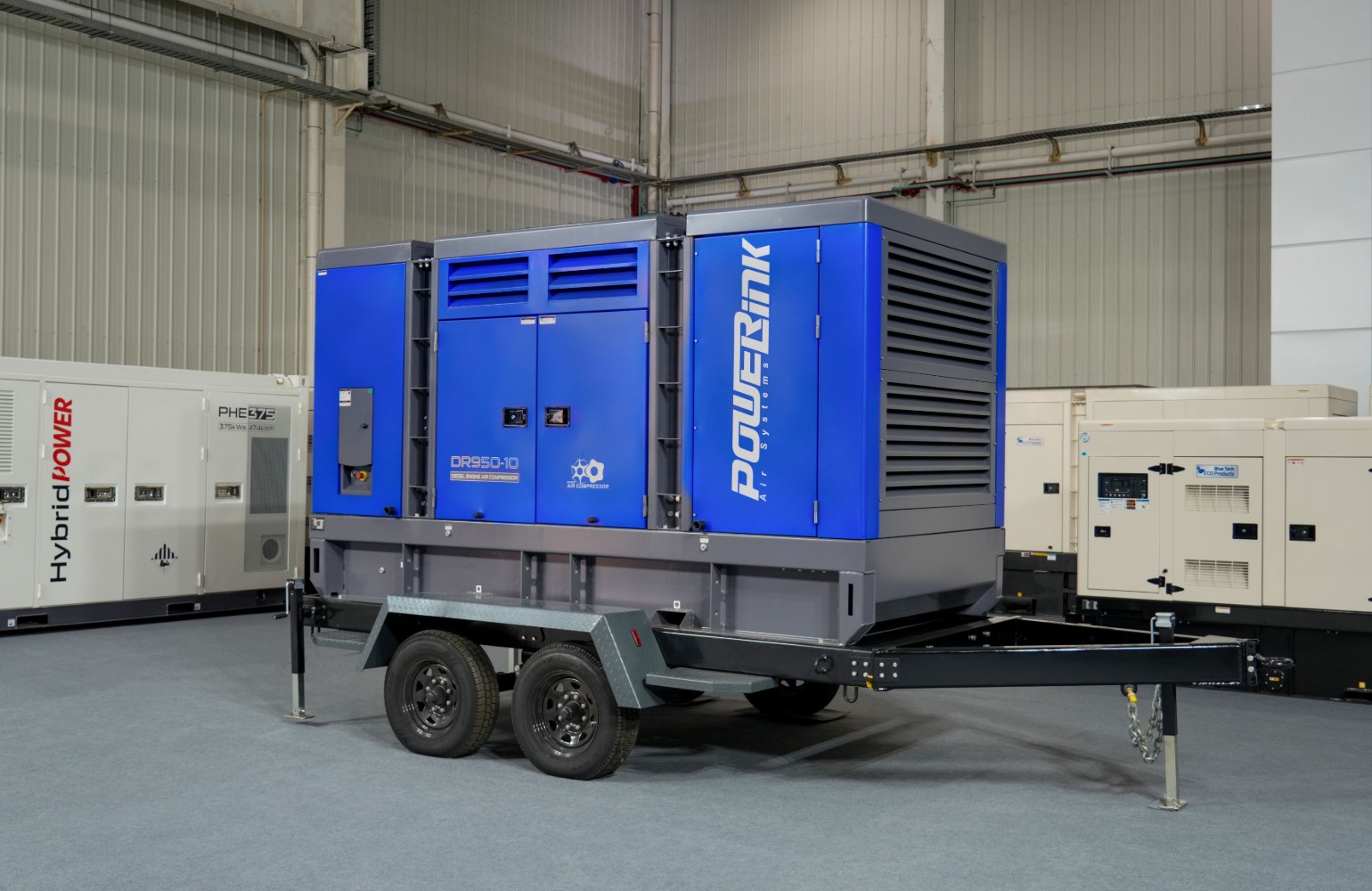

DR950-10

DR950-10



Speed rpm 2000rpm
Discharge pressure bar 10.0bar
Discharge flow cfm 925cfm
Power kw 256
Dimensions mm 3800*1750*2287
Tank L 600
Weight kg 4644
Engine brand / DECE
Structure / Double-jib



DR950-10 Specification Datasheet

DR950-10 Operation Manual

DR950-10 Parts Manual

Video

Diesel Air Compressor Medium-Pressure video
