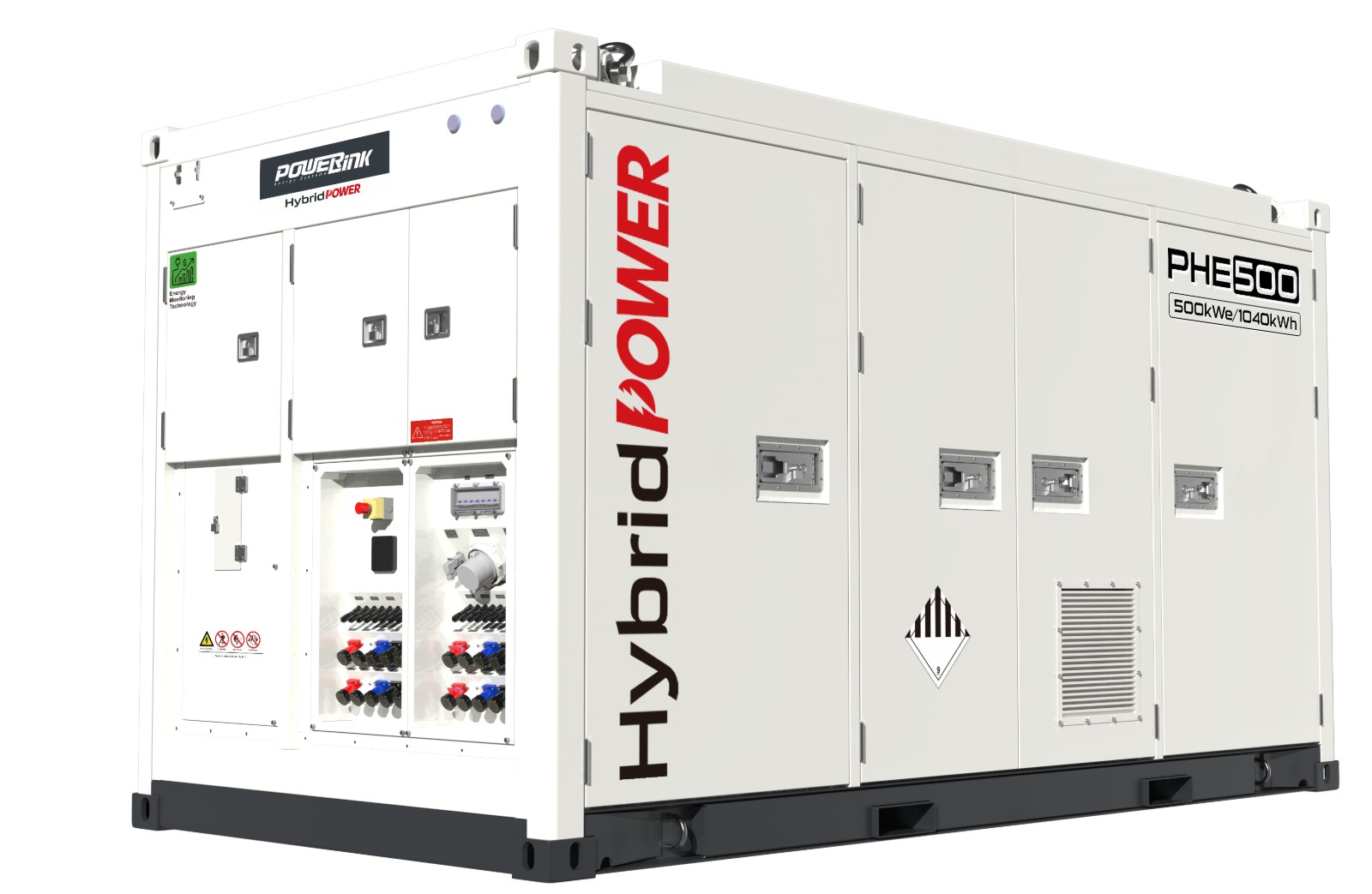

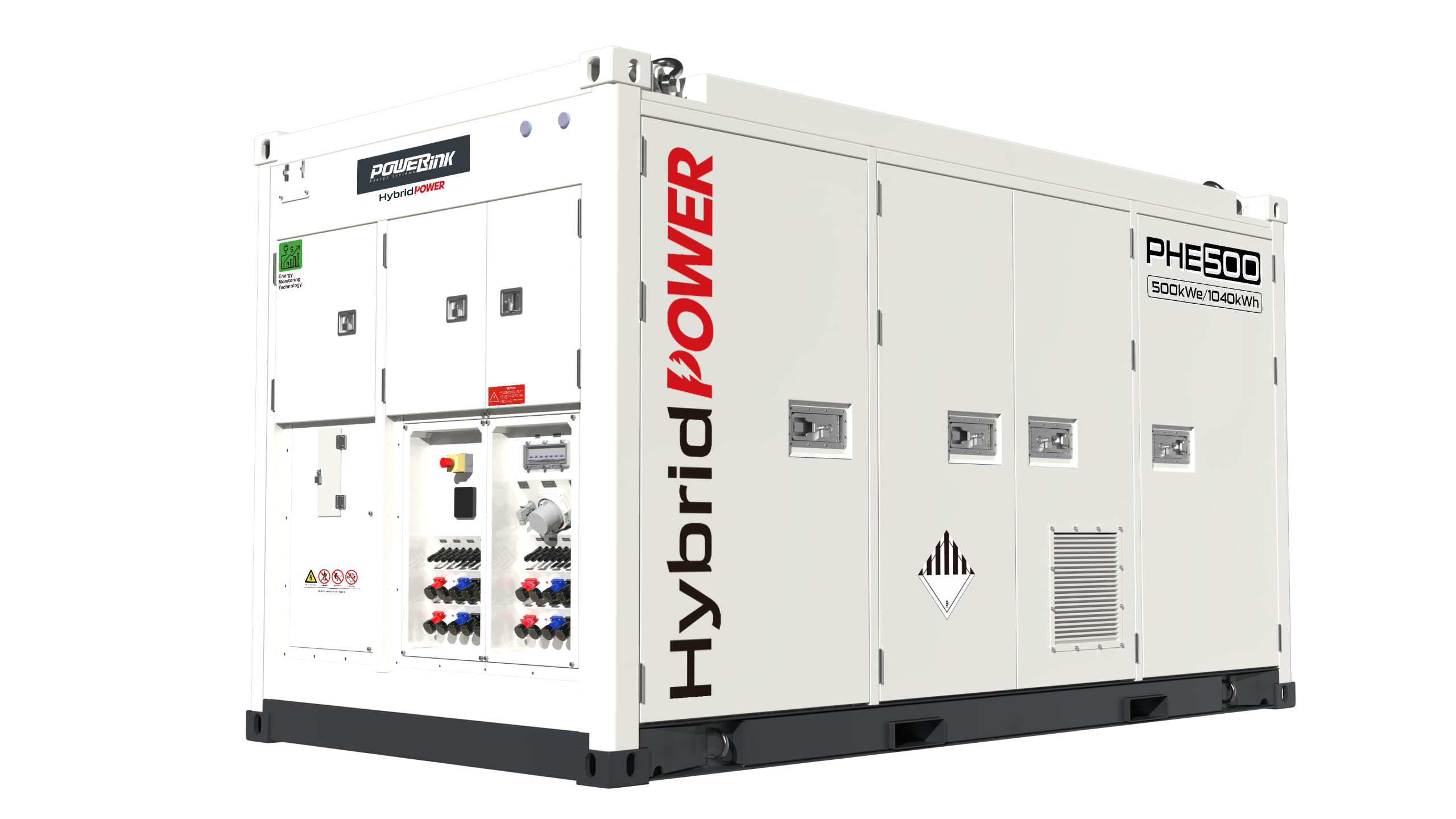

500 kWe/1040kWh
PHE 500
PowerLink PHE500—Your portable off-grid hybrid energy-saving solution, perfect for leasing, construction, ports, mining, events, emergency response, and marine power supply.
Modular structure design
Genuine spare parts
Plug-and-Play Convenience
Rugged & Reliable Performance
Features
Intelligent EMS
Real-time monitoring/scheduling for BMS/PCS, operable via local HMI or remote APP/Web
Hybrid Energy System
With 500kWe output, 1040 kWh battery capacity, it integrates battery, diesel and PV
Battery Pack-level fire protection
Usewater-based extinguishing agent
Ask an Expert
PowerLink PES battery storage systems provide tailored, high-efficiency energy solutions for sustainable power around the world.
86-2157-858-099 ext 8820
Specification
| System Output Power | kWe | 500 |
| Output VOLTAGE | AC V | 380/400/415 |
| Battery Capacity | kWh | 1040 |
| Gen Input | kW | 100 |
| PV Input | kWp | 3*50 |
| 40′ Loading | qty | 2 |
| Noise Level(hybrid mode) | dBA@7m | 65 |
| Noise Level(battery mode) | dBA@7m | 55 |
| Dry Weight | kg | 13000 |
| Dimensions | mm | 5300*2100*2450 |
Download
PHE 500 Specification Manual
PHE500-Specification
Register & Download
PHE 500 Warranty Manual
BESS Warranty Manual-5 Years-20250924
Register & Download
PHE 500 Brochure Manual
BESS Brochure Manual-5 Years-20250924
Register & Download
Applications
- Leasing
- Mining
- Port
- Construction
- Events
FAQs
What energy storage battery products does Powerlink have?
PowerLink currently has two main types of energy storage products: hybrid energy systems and microgrid systems. Among them, hybrid energy systems include PES, PHE, BES, ABS and other series of products; The microgrid system has three series of products: RHE, CHE, and IHE,
Hybrid energy systems are mainly aimed at off grid scenarios, providing complementary power supply through multiple energy sources such as energy storage batteries, photovoltaics, and diesel generators to meet customers’ demand for reliable electricity.
Microgrid system is a battery energy storage system suitable for both parallel and off grid application scenarios. It has the characteristics of high integration, ultra-high energy density, and flexible configuration, and can provide users with independent power stations or efficient energy products that are energy-saving and environmentally friendly.
What are the characteristics of PHE series energy storage products and which scenarios are they mainly used for?
PHE is a mobile hybrid energy system product that is powered by batteries, diesel generators, photovoltaics, and other sources.
- Power output range: 125-500kWe;
- The battery system uses liquid-cooled battery packs with a total capacity of 237-1040kWh.
- EMS intelligent management system, which can be operated through local HMI or remote APP&Web;
- The whole machine is suitable for environmental temperatures ranging from -20 to 50 ℃.
The PHE series products can be widely used in off-grid application scenarios such as leasing, construction, ports, mining, sports events, emergency response, and ship power supply.
Which power generation technologies are effectively integrated with battery energy storage?
Battery energy storage systems have significant advantages when combined with renewable energy systems such as photovoltaics or wind energy, as the peak generation time of these systems may not necessarily be synchronized with user demand time. Therefore, using these devices can store excess electricity and then use or feed it into the grid when needed.
Is battery energy storage efficient?
Battery energy storage is one of the most efficient technologies in the power production chain. They can avoid waste and fully utilize the potential of renewable energy and distribution networks. During low demand periods, excess electricity is stored in batteries or sent to the grid, while during peak demand periods, energy storage batteries are discharged and supplied to users, achieving efficient energy utilization.
Is the energy storage system safe?
The energy storage device is installed in a special container connected to the power grid and equipped with advanced safety measures, such as using a battery pack level fire protection system, using perfluorohexane fire extinguishing agent, and each battery pack is designed with an independent fire protection pipeline. The EMS intelligent management system can perform local HMI or remote APP&Web operations on energy storage devices to check their operation and take safety measures when maintenance is required.
What are the significant characteristics of energy storage systems?
Battery energy storage has excellent characteristics,
1) Uninterruptible power supply
RHE energy storage devices can be used as a continuous energy source, but can also be used as backup energy to ensure uninterrupted household energy supply.
2) Optimize electricity usage
By taking advantage of the time difference in electricity prices, peak shaving and valley filling can be achieved, energy costs can be reduced, economic benefits can be obtained, and quantity demand can be monitored and regulated.
3) Reduce energy costs
Solar energy is a clean energy source with zero cost, which can convert solar energy into electricity and reduce energy costs.
How can energy storage systems be applied to the municipal power grid?
Energy storage systems meet the needs of end-users by storing electricity from the renewable energy plants they are connected to, and excess electricity can be uploaded to the grid connected city power grid. The battery energy storage system has a certain function as a grid regulator.
How long is the battery life? Can the battery be replaced?
The designed service life is usually based on a charge and discharge life of over 6000 cycles, with approximately 10 years of use per day; The battery pack can be replaced by simply unplugging the cable connector and reinstalling up to 10 bolts. The replaced battery pack can be recycled at a discounted price.
Is installation required?
No installation required, the power output panel is equipped with quick sockets, wiring copper bars, etc., plug and play, convenient and fast.
Does it need regular maintenance?
No need for regular maintenance. After the first debugging, only the dust on the power board needs to be cleaned every month. The battery is maintenance free, the inverter is maintenance free, and the system needs to be charged and discharged once a month to activate the memory.
Can it be remotely read and controlled using an APP?
PowerLink’s EnerWEB can be used for remote control on the APP or WEB end.
