MEDIUM-PRESSURE / DISCHARGE PRESSURE：10-10.5BAR
DIESEL AIR COMPRESSOR
PowerLink’s air compressor, designed for superior durability and quiet operation, is equipped with an industrial-grade muffler with condensate drain, a butterfly valve intake system for automatic airflow adjustment, and a dual-protection air filtration system—protecting both engine and compressor, with an optional dual-stage filter available for dusty environments. A heavy-duty radiator with high-temperature protective grilles ensures efficient cooling even in 50°C conditions.
Rental
Mining
Factory
Outdoor Constructions
Port
Features
Environmental Adaptability
Ambient temperature: -25°C ~ 50°C. SECC canopy: IP54.
Core Power & Air System
Efficient Diesel engine. Oil-injected double-screw rotor compressor.
Control & Filtration
PLC intelligent controller. Dual protection air filter. industrial grade Muffler. 0-100% discharge adjustment.
Mobility & Fuel
Four-wheel drive, foldable structure.Continuous operation > 8h
Ask an Expert
PowerLink provides tailored, high-efficiency energy solutions for sustainable power around the world.
86-2157-858-099 ext 8820
Specification

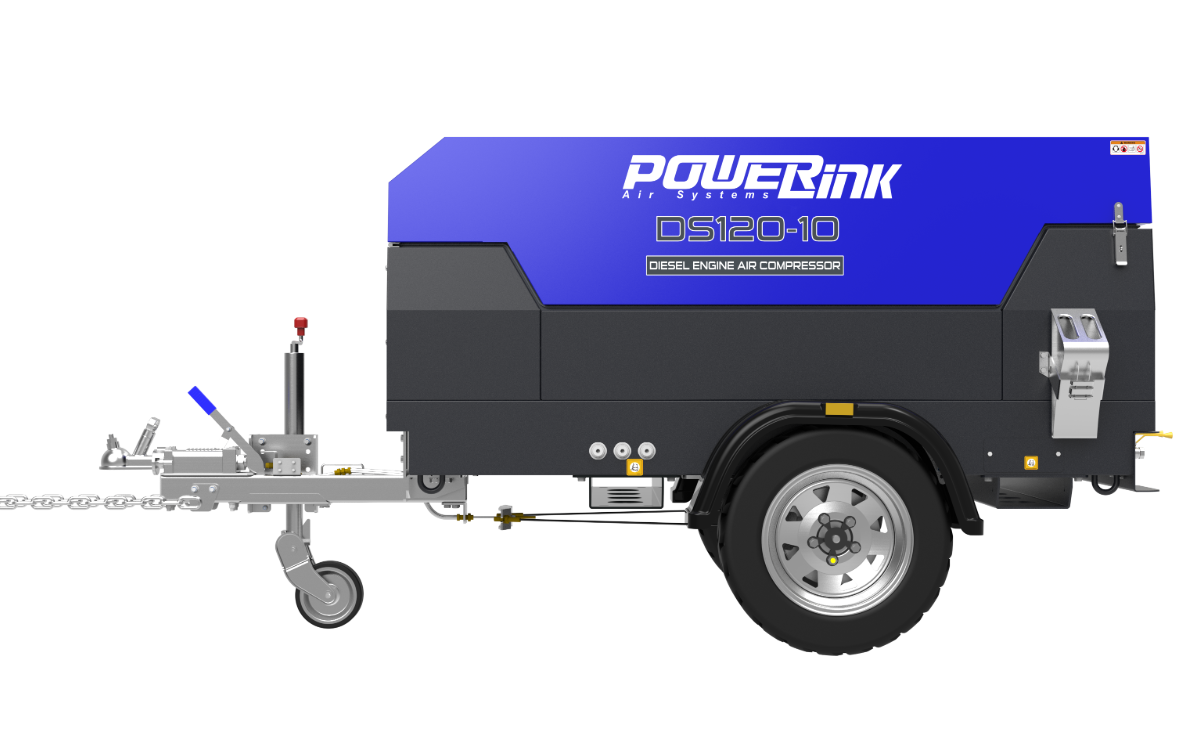

DS120-10
| Speed | rpm | 3000rpm |
| Discharge pressure | bar | 10.0bar |
| Discharge flow | cfm | 122cfm |
| Power | kw | 33 |
| Dimensions | mm | 2107*1099*1004 |
| Tank | L | 80 |
| Weight | kg | 1003 |
| Engine brand | / | KUBOTA |
| Structure | / | Clamshell |
DS120-10 Specification Datasheet
Register & DownloadDS120-10 Operation Manual
DS120-10 Parts Manual
DS200-10
| Speed | rpm | 2700rpm |
| Discharge pressure | bar | 10.0bar |
| Discharge flow | cfm | 198cfm |
| Power | kw | 44 |
| Dimensions | mm | 2078*1104*1004 |
| Tank | L | 60 |
| Weight | kg | 1032 |
| Engine brand | / | KUBOTA |
| Structure | / | Clamshell |
DS200-10 Specification Datasheet
DS200-10 Operation Manual
DS200-10 Parts Manual
DS250-10
| Speed | rpm | 2600rpm |
| Discharge pressure | bar | 10.0bar |
| Discharge flow | cfm | 240cfm |
| Power | kw | 63 |
| Dimensions | mm | 2107*1104*1004 |
| Tank | L | 80 |
| Weight | kg | 1041 |
| Engine brand | / | KUBOTA |
| Structure | / | Gull-wing |
DS250-10 Specification Datasheet
DS250-10 Operation Manual
DS250-10 Parts Manual
DS200-12.5
| Speed | rpm | 2600rpm |
| Discharge pressure | bar | 12.5bar |
| Discharge flow | cfm | 189cfm |
| Power | kw | 63 |
| Dimensions | mm | 2107*1104*1004 |
| Tank | L | 80 |
| Weight | kg | 1041 |
| Engine brand | / | KUBOTA |
| Structure | / | Gull-wing |
DS200-12.5 Specification Datasheet
DS200-12.5 Operation Manual
DS200-12.5 Parts Manual
DS285-12.5
| Speed | rpm | 2600rpm |
| Discharge pressure | bar | 12.5bar |
| Discharge flow | cfm | 287cfm |
| Power | kw | 74 |
| Dimensions | mm | 2183*1104*1007 |
| Tank | L | 75 |
| Weight | kg | 908 |
| Engine brand | / | KUBOTA |
| Structure | / | Gull-wing |
DS285-12.5 Specification Datasheet
DS285-12.5 Operation Manual
DS285-12.5 Parts Manual
DR135-10
| Speed | rpm | 2700rpm |
| Discharge pressure | bar | 10.0bar |
| Discharge flow | cfm | 133cfm |
| Power | kw | 40 |
| Dimensions | mm | 2173*1104*1007 |
| Tank | L | 75 |
| Weight | kg | 1162 |
| Engine brand | / | PowerLink |
| Structure | / | Clamshell |
DR135-10 Specification Datasheet
DR135-10 Operation Manual
DR135-10 Parts Manual
DR400-10
| Speed | rpm | 2200rpm |
| Discharge pressure | bar | 10.0bar |
| Discharge flow | cfm | 314cfm |
| Power | kw | 93 |
| Dimensions | mm | 2560*1340*1570 |
| Tank | L | 240 |
| Weight | kg | 1830 |
| Engine brand | / | DECE |
| Structure | / | Gull-wing |
DR400-10 Specification Datasheet
DR400-10 Operation Manual
DR400-10 Parts Manual
DR520-10
| Speed | rpm | 2200rpm |
| Discharge pressure | bar | 10.0bar |
| Discharge flow | cfm | 521cfm |
| Power | kw | 132 |
| Dimensions | mm | 2676*1456*1570 |
| Tank | L | 230 |
| Weight | kg | 1736 |
| Engine brand | / | DECE |
| Structure | / | Gull-wing |
DR520-10 Specification Datasheet
DR520-10 Operation Manual
DR520-10 Parts Manual
DR750-10
| Speed | rpm | 1900rpm |
| Discharge pressure | bar | 10.0bar |
| Discharge flow | cfm | 731cfm |
| Power | kw | 176 |
| Dimensions | mm | 4038*1500*1850 |
| Tank | L | 450 |
| Weight | kg | 3184 |
| Engine brand | / | DECE |
| Structure | / | Gull-wing |
DR750-10 Specification Datasheet
DR750-10 Operation Manual
DR750-10 Parts Manual
DR950-10
| Speed | rpm | 2000rpm |
| Discharge pressure | bar | 10.0bar |
| Discharge flow | cfm | 925cfm |
| Power | kw | 256 |
| Dimensions | mm | 3800*1750*2287 |
| Tank | L | 600 |
| Weight | kg | 4644 |
| Engine brand | / | DECE |
| Structure | / | Heave-duty |
DR950-10 Specification Datasheet
DR950-10 Operation Manual
DR950-10 Parts Manual
