Hybrid Energy System

PowerLink currently has two main types of energy storage products: hybrid energy systems and microgrid systems. Among them, hybrid energy systems include PES, PHE, BES, ABS and other series of products; The microgrid system has three series of products: RHE, CHE, and IHE,

Hybrid energy systems are mainly aimed at off grid scenarios, providing complementary power supply through multiple energy sources such as energy storage batteries, photovoltaics, and diesel generators to meet customers’ demand for reliable electricity.

Microgrid system is a battery energy storage system suitable for both parallel and off grid application scenarios. It has the characteristics of high integration, ultra-high energy density, and flexible configuration, and can provide users with independent power stations or efficient energy products that are energy-saving and environmentally friendly.

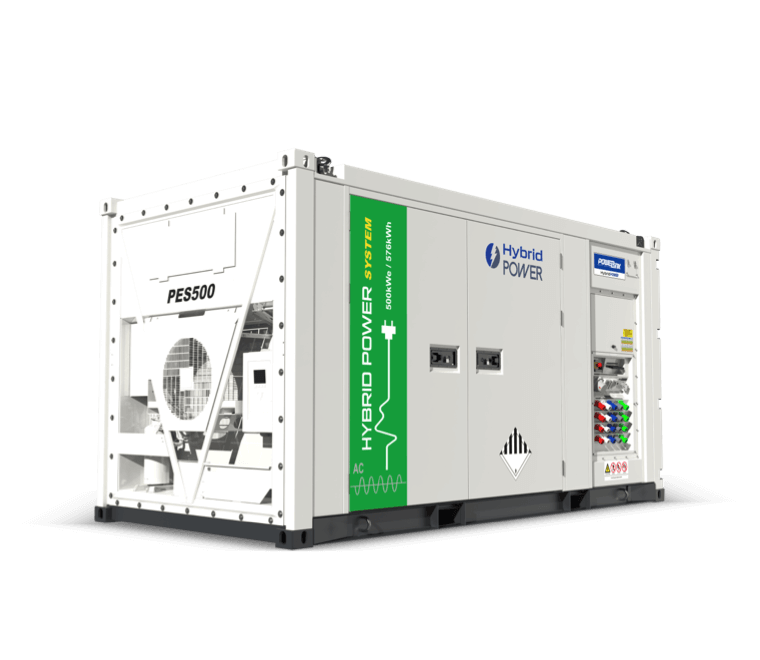

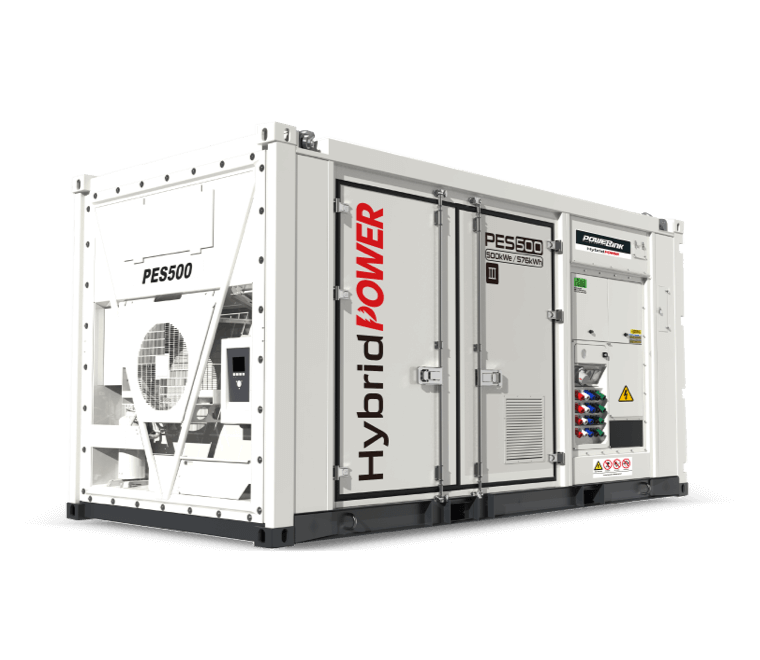

The PES series hybrid unit is a mobile hybrid system and energy-saving system product designed for off grid applications such as leasing, construction, ports, mining, events, emergencies, and ship power supply. It supports solar power input and diesel generator input, and can be used in combination with batteries or independently. It can provide users with independent power supply or efficient energy products that are energy-saving and environmentally friendly.

• The overall protection level of the product is IP54, suitable for harsh usage environments;
• Series product power output range: 30-500kWe;
• EMS intelligent management system, real-time detection and scheduling of BMS system, PCS system, etc., and can be operated through local HMI or remote APP&Web;
• The BMS system adopts a three-level management architecture of battery stack, battery cluster, and battery pack, with a total capacity of 62-576kWh and supports 1C charging/discharging.

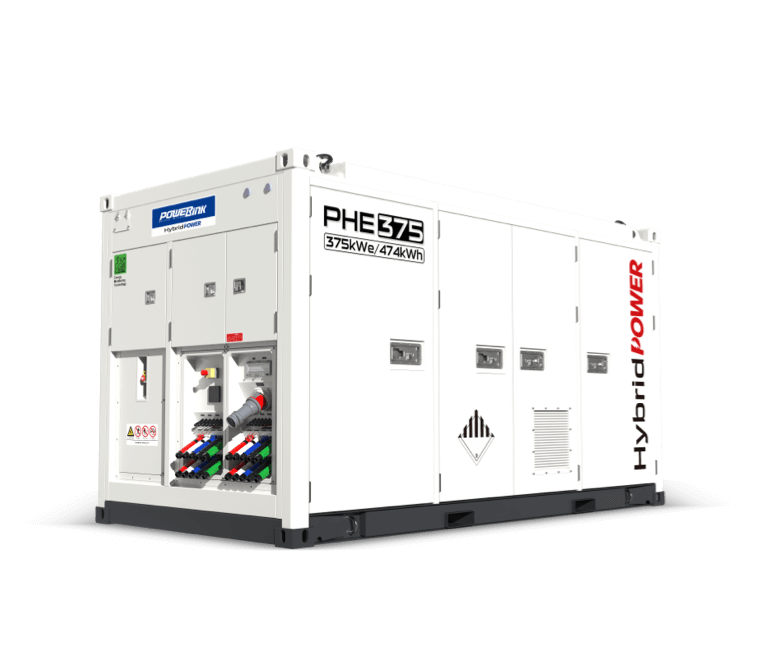

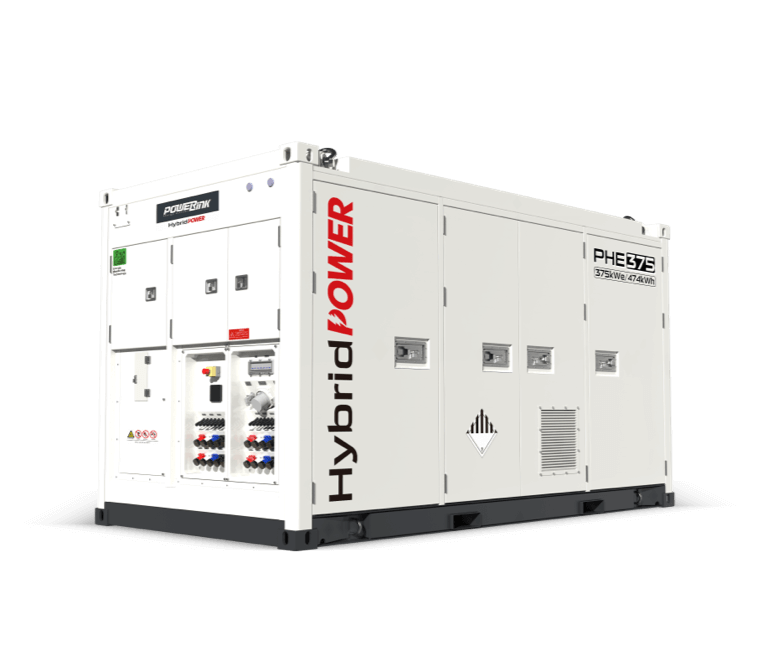

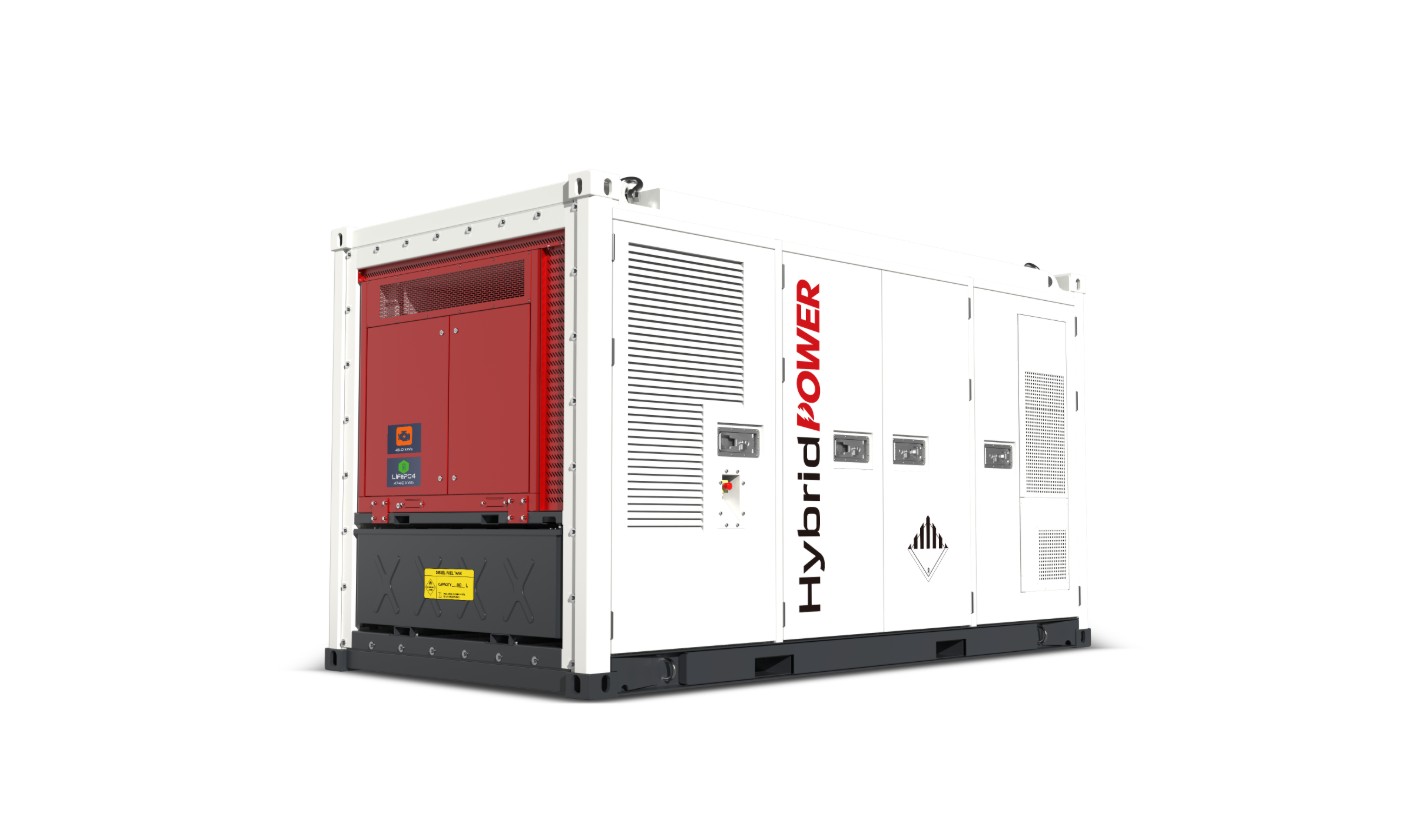

PHE is a mobile hybrid energy system product that is powered by batteries, diesel generators, photovoltaics, and other sources.

• Power output range: 125-500kWe;
• The battery system uses liquid-cooled battery packs with a total capacity of 237-1040kWh.
• EMS intelligent management system, which can be operated through local HMI or remote APP&Web;
• The whole machine is suitable for environmental temperatures ranging from -20 to 50 ℃.

The PHE series products can be widely used in off-grid application scenarios such as leasing, construction, ports, mining, sports events, emergency response, and ship power supply.

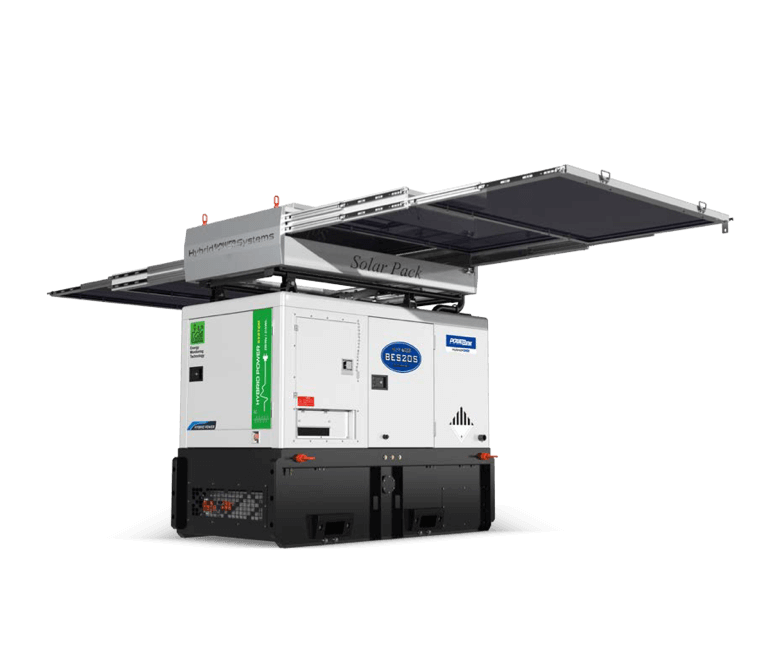

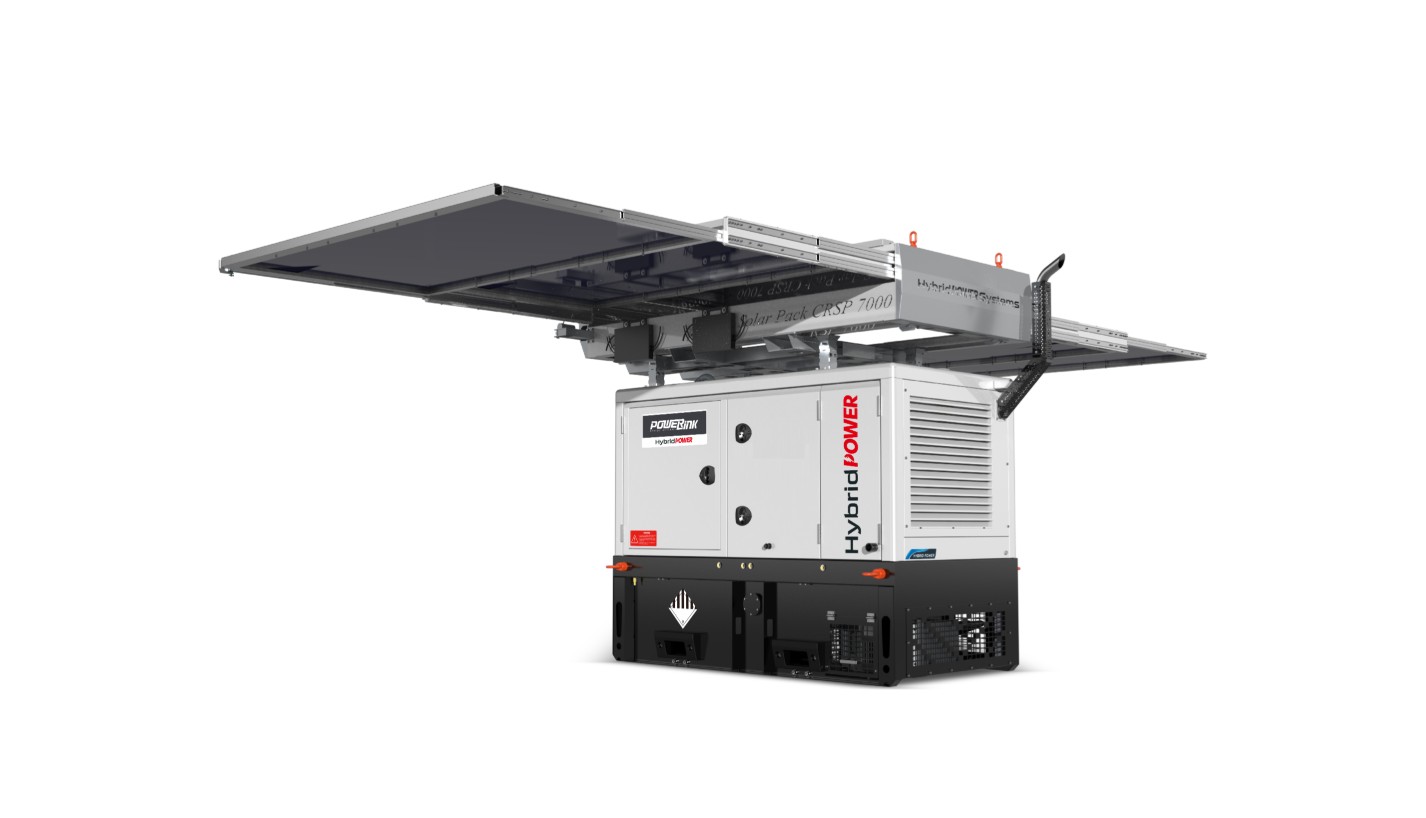

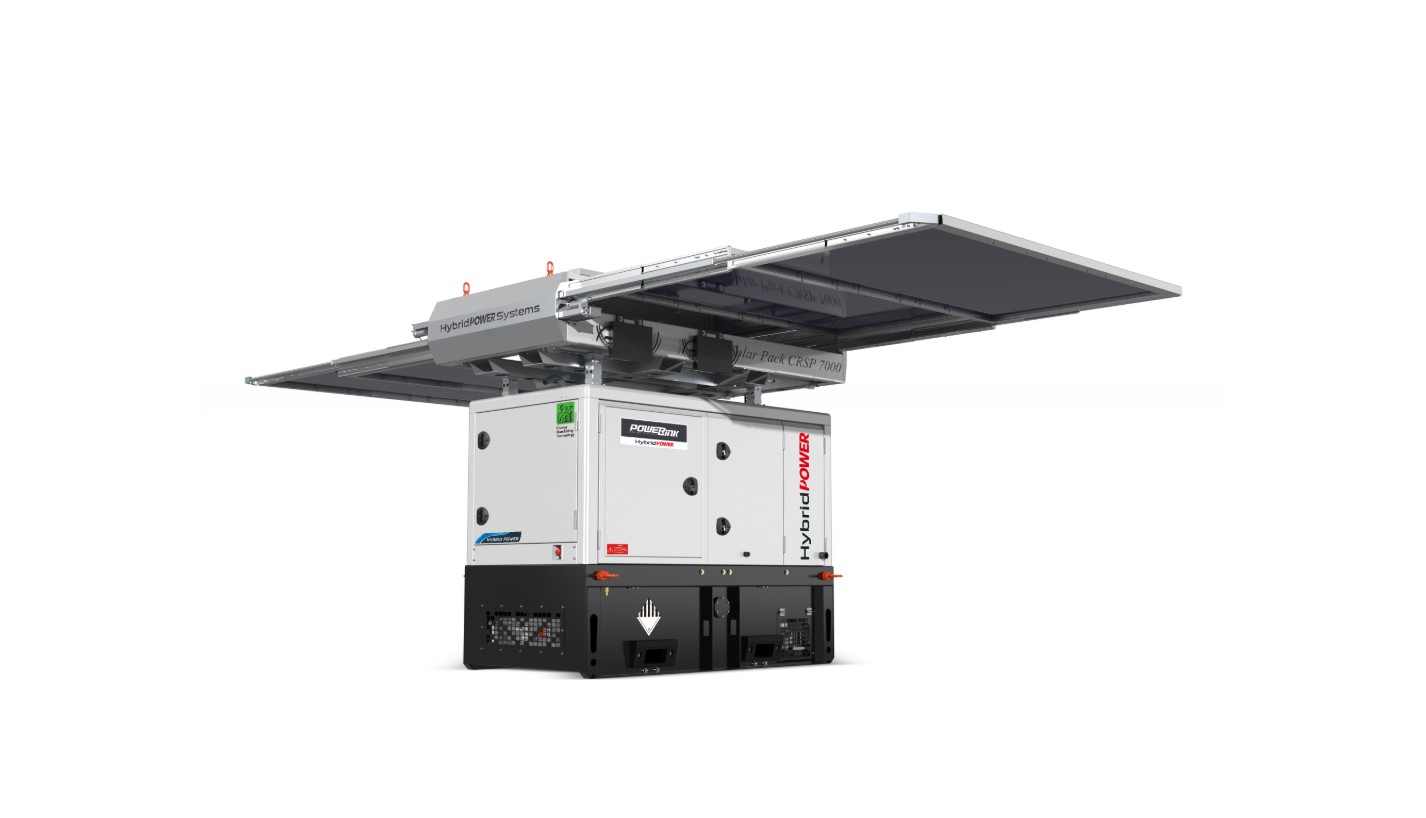

The BES series energy storage products belong to hybrid energy systems, and their main characteristics are:

• Configure diesel generators, solar panels, and multiple input interfaces such as photovoltaic and mains power to meet the energy consumption needs of users at different levels of cost.
• Rated power output of 20-80 kWh, battery capacity of 30.7-101.4 kWh, diesel power generation of 24-80 kWh, internal integrated photovoltaic power generation of 2.5-3.6 kWp, external input of 36-77.8 kWp photovoltaic power generation.
• EMS intelligent management system, real-time detection and scheduling of BMS system, PCS system, etc., and can be operated through local HMI or remote APP&Web.
• The battery system adopts liquid cooling method and is suitable for ambient temperatures ranging from -20 to 50 ℃. The overall protection level is IP54, suitable for a wide range of usage environments.
• The power output panel is equipped with quick sockets, wiring copper bars, etc., which are plug and play.

The BES series oil photovoltaic storage hybrid power supply integrates energy storage batteries, photovoltaic modules, and diesel generators to achieve complementary power supply of oil photovoltaic storage. It has a compact structure, plug and play, and is suitable for remote islands, mountainous rural areas, field stations, and backup Fields such as power supply.

The ABS series hybrid unit is a trailer mobile hybrid system and energy-saving system product designed for off grid application scenarios such as leasing, mining areas, construction sites, emergency rescue, outdoor activities, etc.

• Support solar power generation input and diesel generator input, mixed with batteries or used independently;
• Supports one click switching between 480V/208V dual voltages through the human-machine interface (HMI);
• Energy storage battery system, with a total capacity of 237-1040kWh, supporting 1C charging/discharging;
• EMS intelligent management system, real-time detection and scheduling of BMS system, PCS system, etc., and can be operated through local HMI or remote APP&Web;
• The battery system adopts liquid cooling method and is suitable for ambient temperatures ranging from -20 to 50 ℃;
• The overall protection level of the machine is IP54, suitable for a wide range of usage environments;
• Lightweight, small in size, equipped with a trailer for easy mobility;
• The product has a power output range of 200-500kWe.

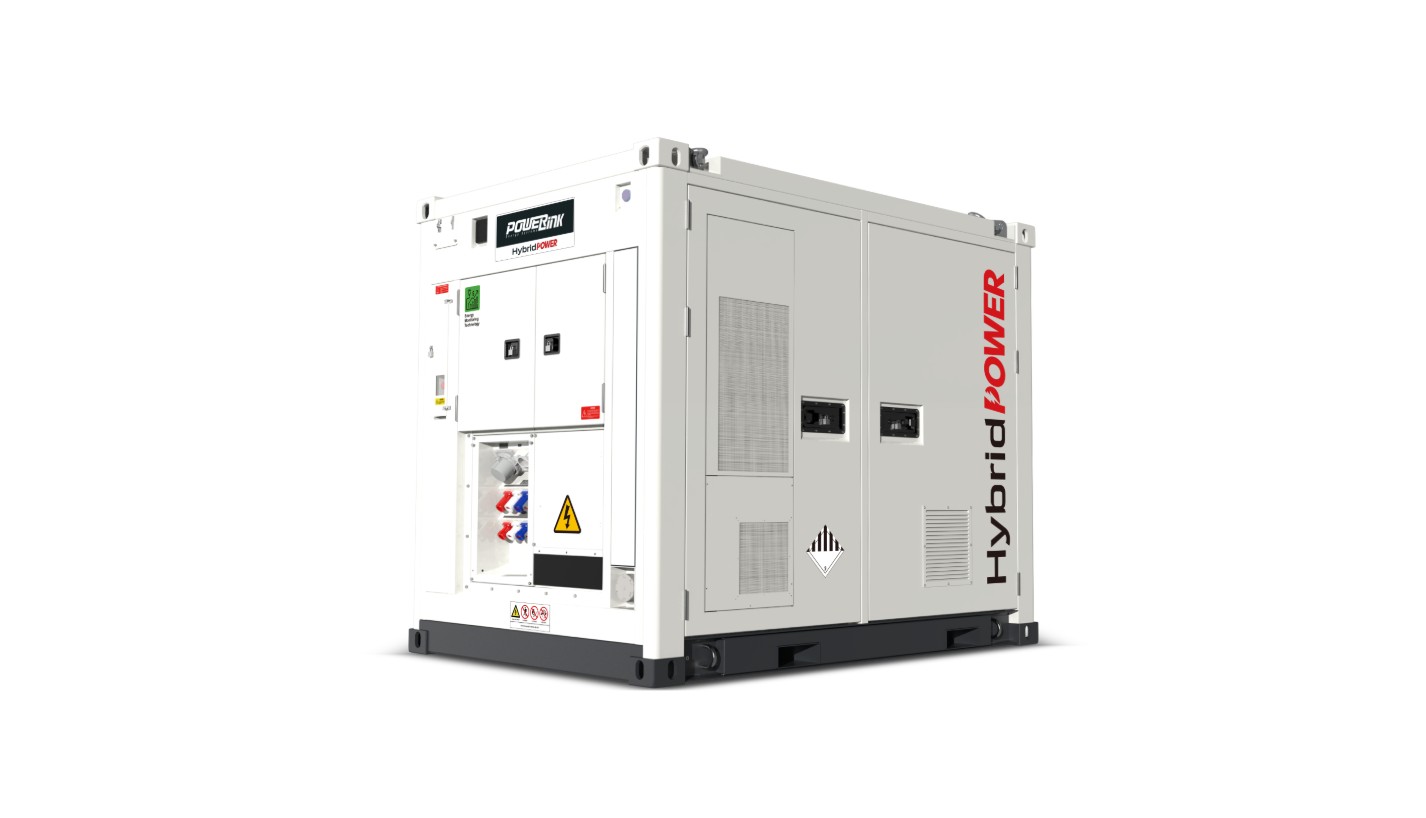

The RHE series household energy storage all-in-one machine is a small-scale independent power supply and energy-saving system product designed for household, farm, mining, island, and parallel or off grid application scenarios.

Main features:

• A household microgrid system, used in parallel with the power grid and charged/discharged according to a time-sharing plan, can reduce electricity costs for users by about 70%.
• Power output of 12-100kWe, battery capacity of 30.72-115kWh, supporting 1C charging/discharging rate.
• Configure 4 photovoltaic input interfaces, utilizing green energy with a power of 18-153.6 kWp, and can also be connected to wind energy.
• EMS intelligent management system, real-time detection and scheduling of BMS system, PCS system, etc., and can be operated through local HMI or remote APP&Web.
• The overall protection level of the machine is IP54, suitable for harsh usage environments.

The power output panel is equipped with quick sockets, wiring copper bars, etc., which are plug and play.

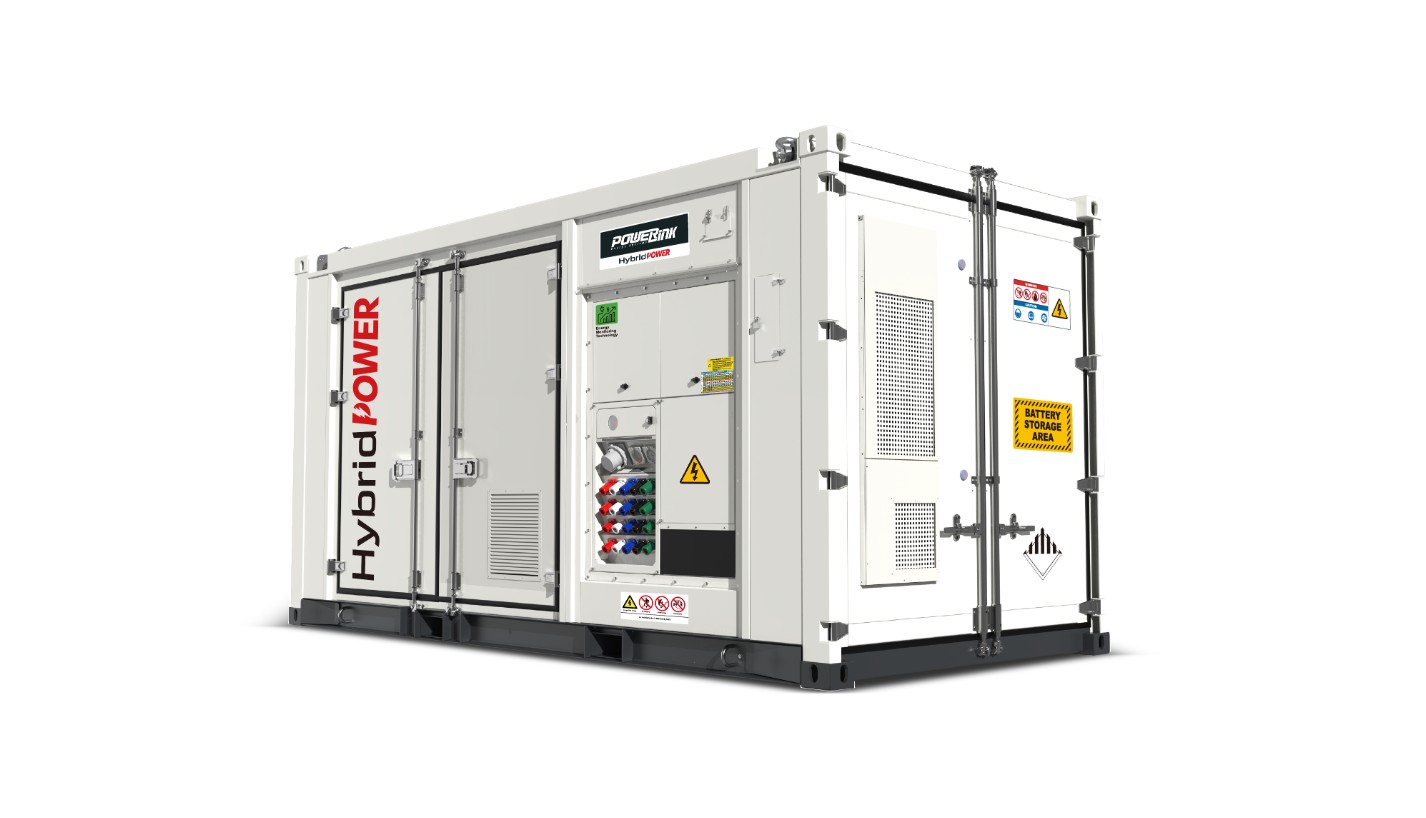

CHE is a medium-sized microgrid system that integrates energy storage batteries, PCS, EMS, and multiple input/output interfaces into an integrated cabinet. It supports seamless switching between parallel and off-grid systems and can be paired with rooftop or ground-mounted photovoltaic power generation systems.

It is suitable for commercial buildings, small and medium-sized factories, UPS power supplies, and other fields. It can operate flexibly in six different application scenarios, whether it is single machine or multi machine mixed network or single machine operation, with higher flexibility, greatly optimizing and reducing energy costs.

• Large capacity microgrid system, suitable for commercial fields, with green electricity for oil removal, peak shaving and valley filling, reducing electricity costs, and power output of 125-1000kWe.
• The BMS system adopts a three-level management architecture including battery stack, battery cluster, and battery pack, with a total capacity of 237-2080kWh.
• The fire protection system uses perfluorohexane fire extinguishing agent and is equipped with automatic detection and triggering systems such as smoke and temperature sensors.
• EMS intelligent management system, real-time detection and scheduling of BMS system, PCS system, etc., and can be operated through local HMI or remote APP&Web.
• Large capacity refrigeration system, making the whole machine suitable for ambient temperatures ranging from -30 to 50 ℃.
• The overall protection level of the machine is IP54, suitable for harsh usage environments.

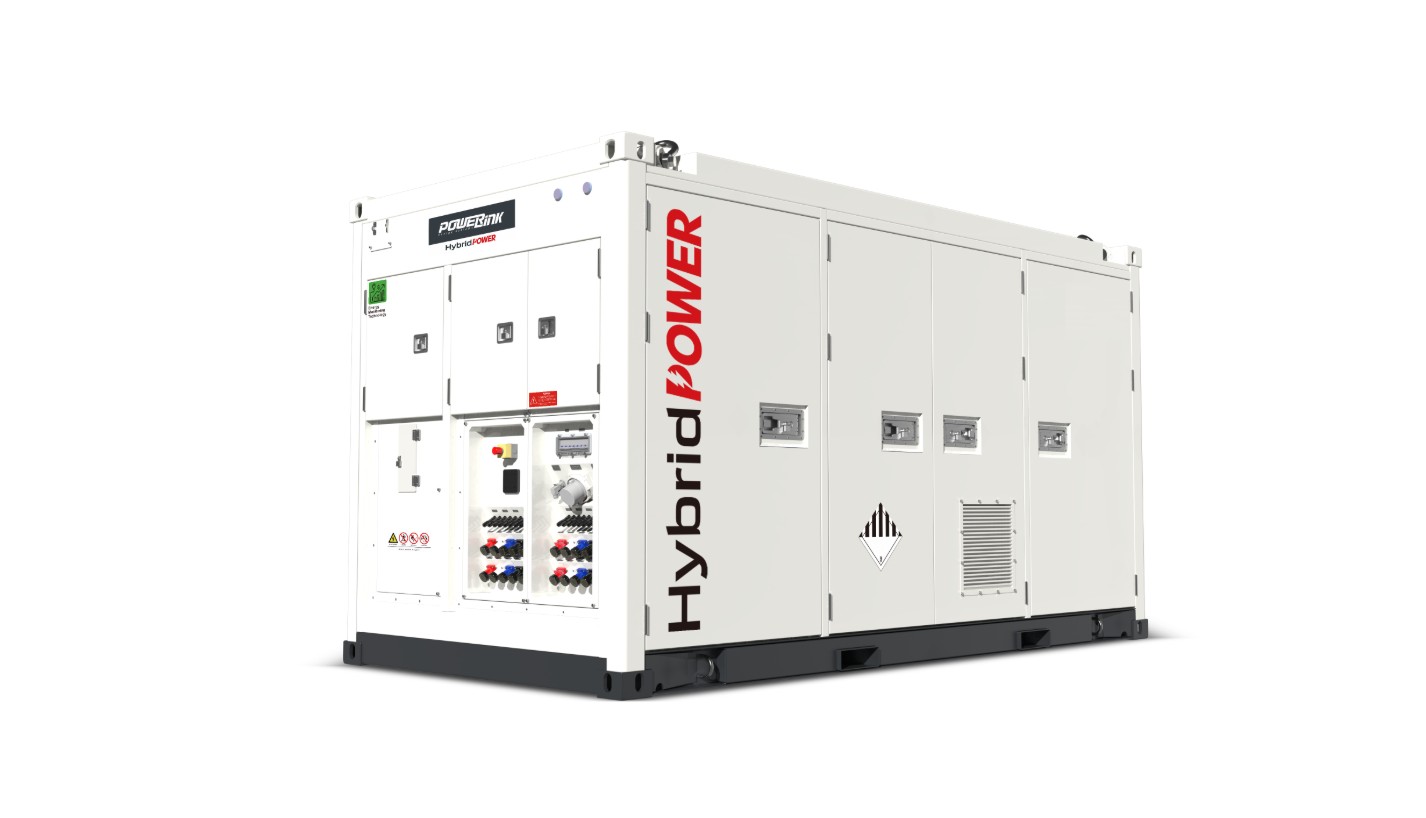

The IHE series medium/high voltage microgrid system adopts a standard 20 foot high cabinet compartment layout. The large capacity energy storage battery compartment is equipped with package level and compartment level fire protection systems, heat dissipation systems, and is matched with special PCS and boost grid connected modules to support high-power charging/discharging.

It is suitable for large factories, ground photovoltaic power stations, and grid-side peak shaving and frequency regulation applications. It can be used in conjunction with medium and high voltage diesel generator sets to form an independent power grid and supply power to communities without grids. The IHE series can be flexibly applied to four different power grid scenarios.

• Large capacity microgrid system, suitable for peak shaving, frequency regulation, etc., with a power output of 1250-2500kWe.
• Adopting a modular design with a split-type battery cabinet, PCS cabinet, step-up transformer cabinet, grid-connected cabinet, and quick combination for use.
• EMS intelligent management system, real-time detection and scheduling of BMS system, PCS system, etc., and can be operated through local or remote APP and Web.
• The overall protection level of the machine is IP54.
• Large capacity refrigeration system, making the whole machine suitable for ambient temperatures ranging from -30 to 50 ℃;
• The power output panel is equipped with copper bars for wiring, making it easy to operate.

Battery energy storage systems have significant advantages when combined with renewable energy systems such as photovoltaics or wind energy, as the peak generation time of these systems may not necessarily be synchronized with user demand time. Therefore, using these devices can store excess electricity and then use or feed it into the grid when needed.

Battery energy storage is one of the most efficient technologies in the power production chain. They can avoid waste and fully utilize the potential of renewable energy and distribution networks. During low demand periods, excess electricity is stored in batteries or sent to the grid, while during peak demand periods, energy storage batteries are discharged and supplied to users, achieving efficient energy utilization.

The energy storage device is installed in a special container connected to the power grid and equipped with advanced safety measures, such as using a battery pack level fire protection system, using perfluorohexane fire extinguishing agent, and each battery pack is designed with an independent fire protection pipeline. The EMS intelligent management system can perform local HMI or remote APP&Web operations on energy storage devices to check their operation and take safety measures when maintenance is required.

Battery energy storage has excellent characteristics,

1) Uninterruptible power supply

RHE energy storage devices can be used as a continuous energy source, but can also be used as backup energy to ensure uninterrupted household energy supply.

2) Optimize electricity usage

By taking advantage of the time difference in electricity prices, peak shaving and valley filling can be achieved, energy costs can be reduced, economic benefits can be obtained, and quantity demand can be monitored and regulated.

3) Reduce energy costs

Solar energy is a clean energy source with zero cost, which can convert solar energy into electricity and reduce energy costs.

Energy storage systems meet the needs of end-users by storing electricity from the renewable energy plants they are connected to, and excess electricity can be uploaded to the grid connected city power grid. The battery energy storage system has a certain function as a grid regulator.

The designed service life is usually based on a charge and discharge life of over 6000 cycles, with approximately 10 years of use per day; The battery pack can be replaced by simply unplugging the cable connector and reinstalling up to 10 bolts. The replaced battery pack can be recycled at a discounted price.

When not in use, you can directly turn off the device or let the solar energy keep charging the battery. After the battery is fully charged, the charging will automatically stop.

No installation required, the power output panel is equipped with quick sockets, wiring copper bars, etc., plug and play, convenient and fast.

No need for regular maintenance. After the first debugging, only the dust on the power board needs to be cleaned every month. The battery is maintenance free, the inverter is maintenance free, and the system needs to be charged and discharged once a month to activate the memory.

PowerLink’s EnerWEB can be used for remote control on the APP or WEB end.

PowerLink energy storage products can be divided into two categories: hybrid systems and microgrid systems, which can be selected according to application scenarios.

There are three major series of mobile hybrid products, with different specifications, control logic, functional scope, and application scenarios. It is necessary to determine our application requirements and then match the functions of each series of products according to these major requirements.

The mobile microgrid series products have 3 major series and 14 application scenarios, including 10 for low voltage systems and 4 for medium to high voltage systems. They can operate in parallel and off grid environments, and have obvious advantages in peak shaving and frequency regulation, peak valley arbitrage, green power de oiling, and uninterruptible power supply applications. Based on the application scenarios, the major product categories are selected and matched with specific model specifications.

We can provide you with investment return analysis reports, operational cost analysis reports, as well as a complete turnkey solution for mobile photovoltaic power generation, balanced hybrid and microgrid stability and investment balance diesel generator selection and supply. We also offer installation guidance, debugging, training, and product lifecycle management services.

They can work together and have significant effects in peak shaving and frequency regulation, peak valley arbitrage, and energy cascade utilization. Coupled with photovoltaic power generation, the cost is further reduced.

Nonlinear data indicates that the load may experience sudden increases or decreases. For energy storage batteries, the outstanding advantage is to stabilize the frequency and voltage quality of the power grid, making the voltage and frequency output of the power grid more stable.

The discharge rate of the unit changes with the load, and how many KW the load is, how many KW the discharge will be. However, the maximum discharge power cannot exceed the rated power of the unit.

About 2%

Yes, our EMS control system has a battery peaking mode.

PES only has three-phase output, RHE12S and RHE24S in the RHE series have single-phase output, while other products have three-phase output. Three phase and single-phase cannot be output simultaneously

Solar photovoltaic panels can be connected in series with a voltage range of 250V-900V. They can be connected to our photovoltaic inverters or multiple interfaces of hybrid and microgrid products through MC4 connectors. The voltage range of the photovoltaic array needs to match the voltage range received by each hybrid and microgrid product. Powerlink has also launched a mobile photovoltaic power generation product specifically designed for mobile hybrid and microgrids, which is plug and play and can be freely combined according to power requirements.

LiFePO₄。

PowerLink energy storage product warranty regulations: The warranty period for the entire machine (excluding battery modules) is 2 years, and the warranty period for battery modules is 5 years. A policy of 10-year battery warranty has also been introduced. For more information, please contact the agent.

Battery quality standard: After delivery, it should meet 5 years of normal use (the remaining usable capacity of the battery cell should not be less than 70% of the rated capacity (@ 10 ℃ -30 ℃, 0.5C charging/0.5C discharging, annual operation for 300 days, 2 charge discharge cycles per day).
