BES Series

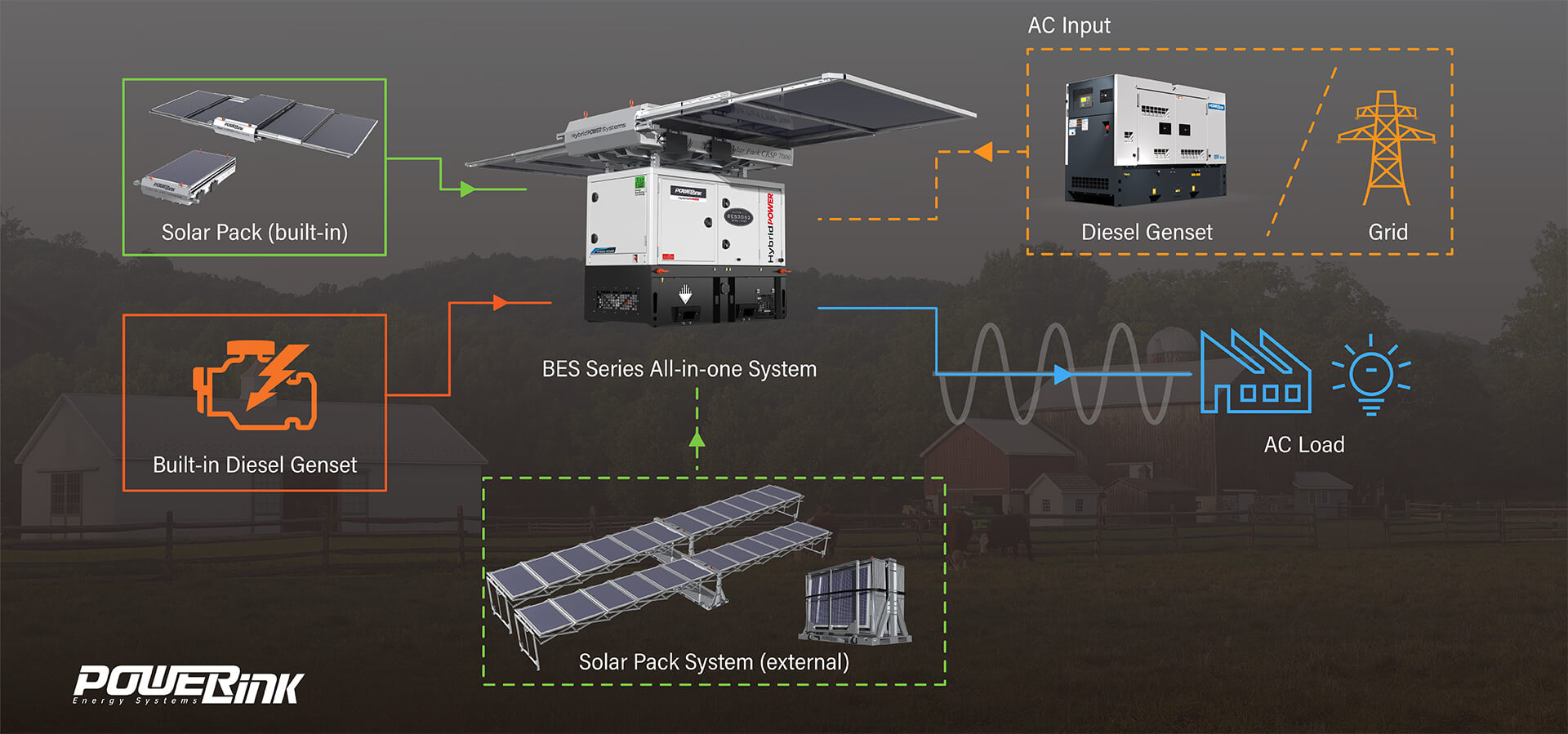

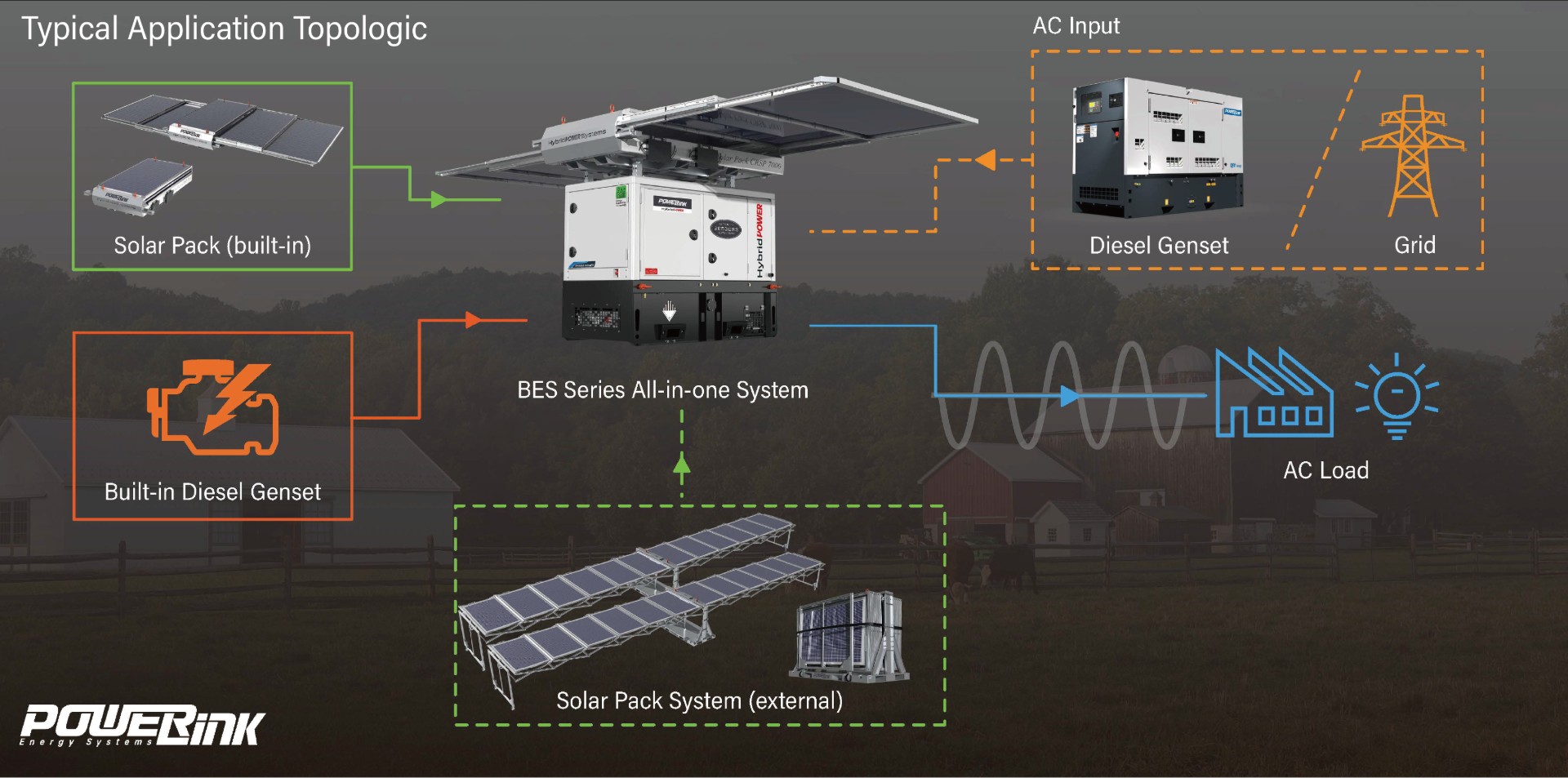

The BES Battery Energy Storage System – AIO series (solar/diesel/battery all in one) hybrid power supply integrates energy storage batteries, PV modules and diesel generators. With output power range of 20-80kWe, battery capacity of 30.7-101.4kWh, It can realize complementary power supply of wind, solar, diesel and storage, with a compact structure and plug and play functionality. With interfaces for grid and wind power charging, It is suitable for remote islands, mountainous rural areas, field stations, backup power supplies and other fields.
Product Features
BES14S Specification
| System Output Power | kWe | 14 |
| Output VOLTAGE | V | 400/415 |
| Battery Vapacity | kWh | 25 |
| Genset Input | kW | 16 |
| PV Input | kWp | 2.5 |
| PMPPT Power | kW | 21 |
| 40′ Loading | qty | 8 |
| Noise Level(hybrid mode) | dBA@7m | 58 |
| Noise Level(battery mode) | dBA@7m | 50 |
| Dry Weight | kg | 2554 |
| Dimensions | mm | 2280*1400*2509 |
BES20S Specification
| Output Power | kVA/kW | 20/20 |
| Output voltage | AC V | 220/230/240 |
| Battery Capacity | kWh | 30.7 |
| Grid Power Input | kVA/kW | 20/20 |
| Gen Power Input | kVA/kW | 30/24 |
| Solar Power Capacity | kWp | 18+18 |
| 40′ Loading | qty | 4 |
| Noise Level(hybrid mode) | dBA@7m | 55 |
| Noise Level(battery mode) | dBA@7m | 50 |
| Dry Weight | kg | 1350 |
| Dimensions | mm | 2100*1150*1700 |

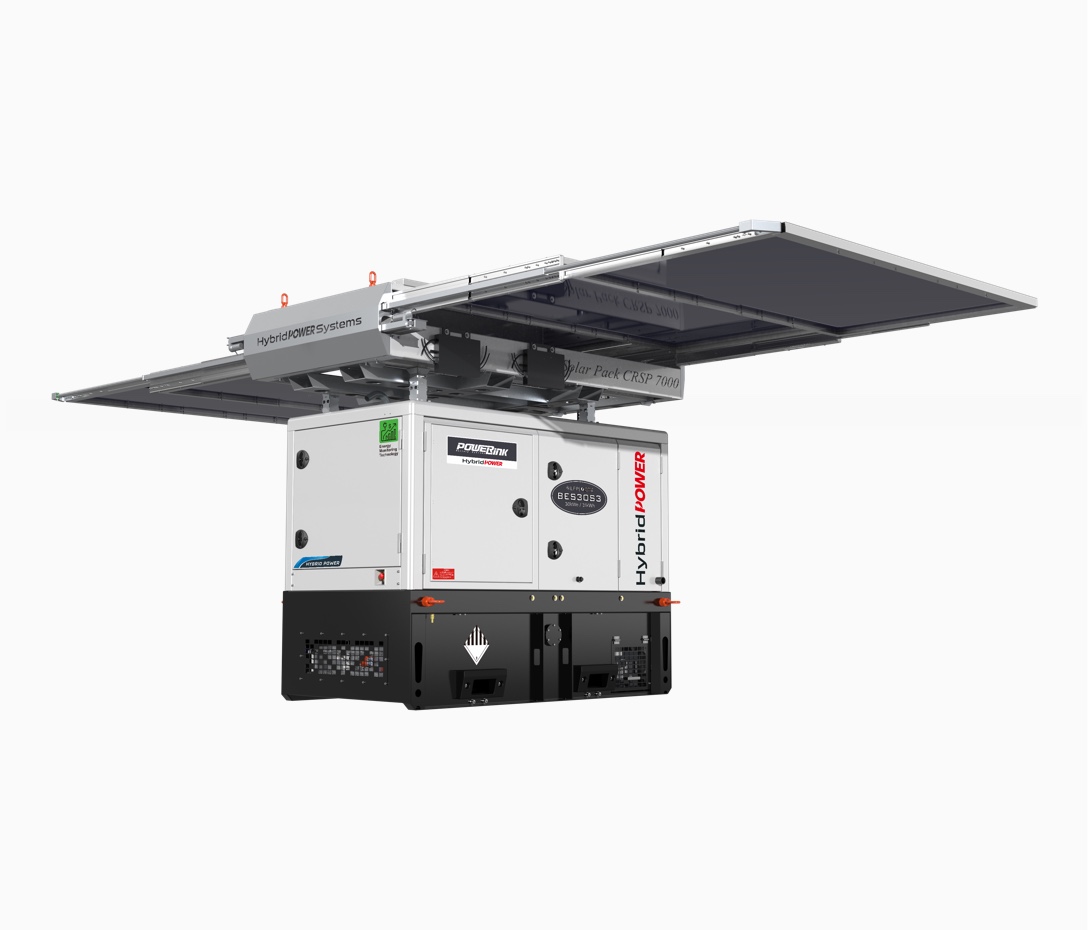

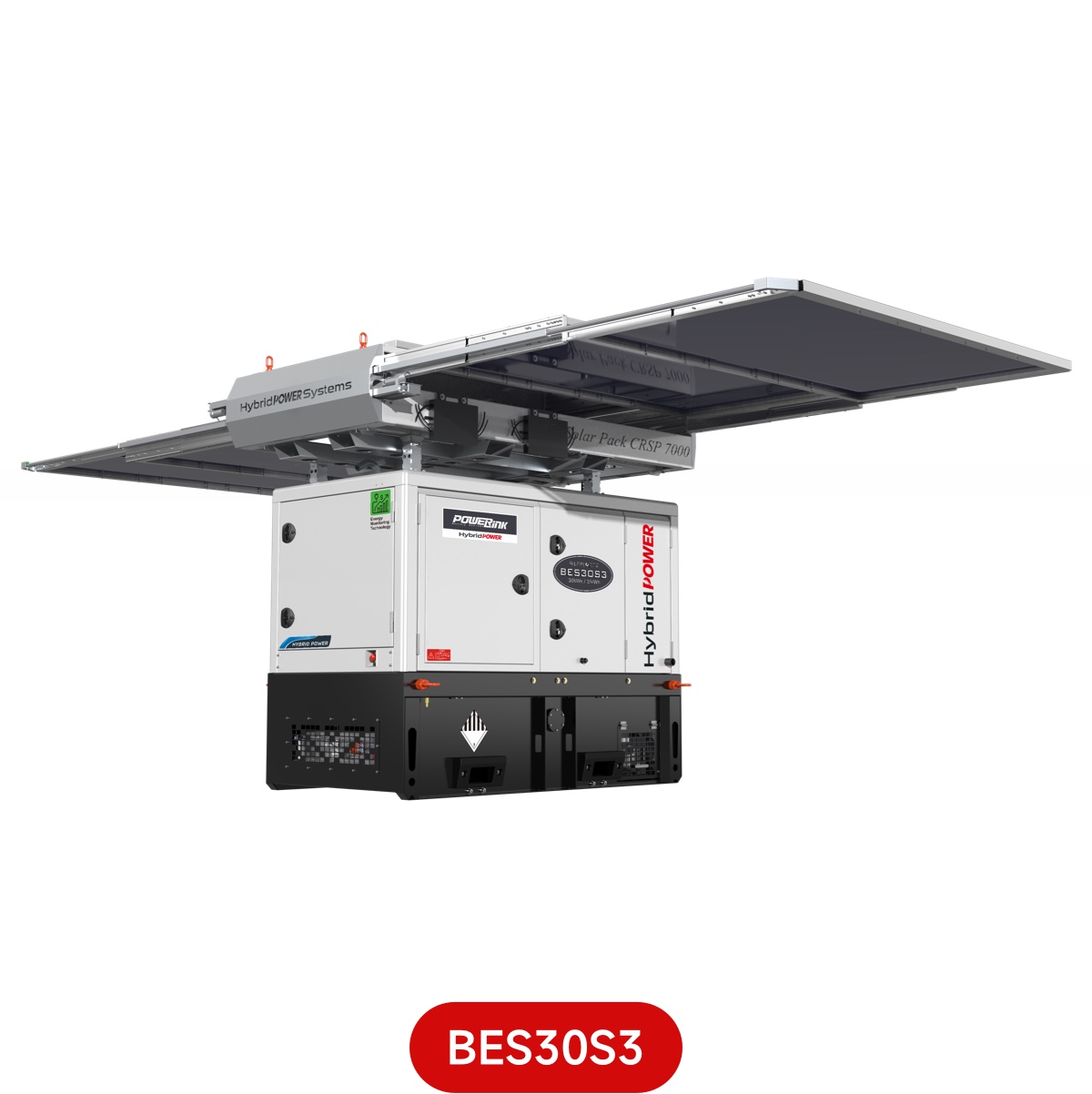

BES30S3 Specification
| Output Power | kVA/kW | 30/30 |
| Output voltage | AC V | 380/400/415 |
| Battery Capacity | kWh | 30.7 |
| Grid Power Input | kVA/kW | 30/30 |
| Gen Power Input | kVA/kW | 37/30 |
| Solar Power Capacity | kWp | 38.4+38.4 |
| 40′ Loading | qty | 4 |
| Noise Level(hybrid mode) | dBA@7m | 55 |
| Noise Level(battery mode) | dBA@7m | 50 |
| Dry Weight | kg | 2800 |
| Dimensions | mm | 2100*1150*1700 |

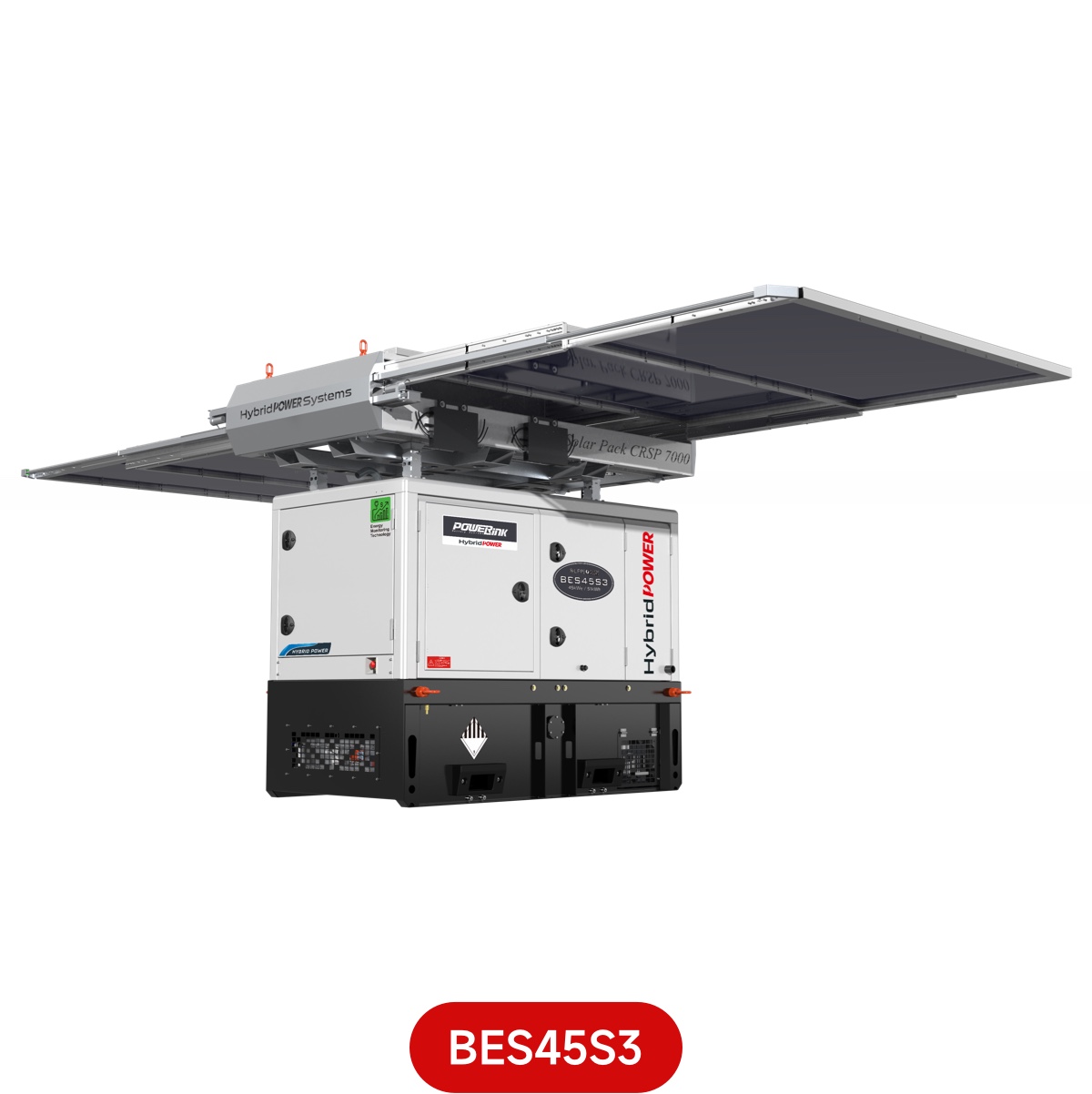

BES45S3 Specification
| Output Power | kVA/kW | 45/45 |
| Output voltage | AC V | 380/400/415 |
| Battery Capacity | kWh | 50.7 |
| Grid Power Input | kVA/kW | 45/45 |
| Gen Power Input | kVA/kW | 45/36 |
| Solar Power Capacity | kWp | 38.4+38.4 |
| 40′ Loading | qty | 4 |
| Noise Level(hybrid mode) | dBA@7m | 55 |
| Noise Level(battery mode) | dBA@7m | 50 |
| Dry Weight | kg | 2080 |
| Dimensions | mm | 2500*1150*2000 |
BES80S3 Specification
| Output Power | kVA/kW | 80/80 |
| Output voltage | AC V | 380/400/415 |
| Battery Capacity | kWh | 101.4 |
| Grid Power Input | kVA/kW | 80/80 |
| Gen Power Input | kVA/kW | 125/100 |
| Solar Power Capacity | kWp | 38.4+38.4 |
| 40′ Loading | qty | 4 |
| Noise Level(hybrid mode) | dBA@7m | 55 |
| Noise Level(battery mode) | dBA@7m | 50 |
| Dry Weight | kg | 2500 |
| Dimensions | mm | 3000*1150*2000 |
Product Views
Battery Energy System

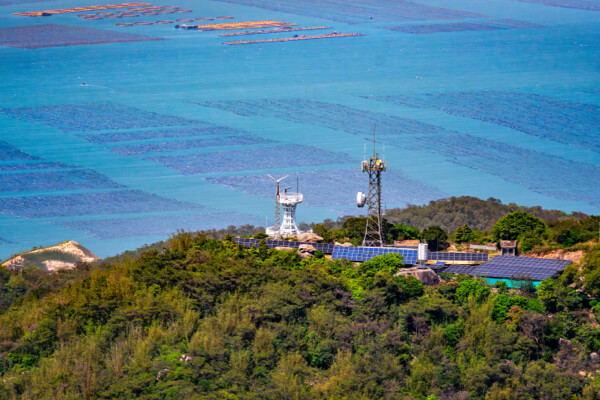

BES series application scenario
BES products are ideal for leasing, construction, mining, events, emergency situations, and uninterruptible power supply.
- HOUSEHOLD
- CONSTRUCTION
- EQUIPMENT LEASING
- INDEPENDENT POWER
- STABLE POWER

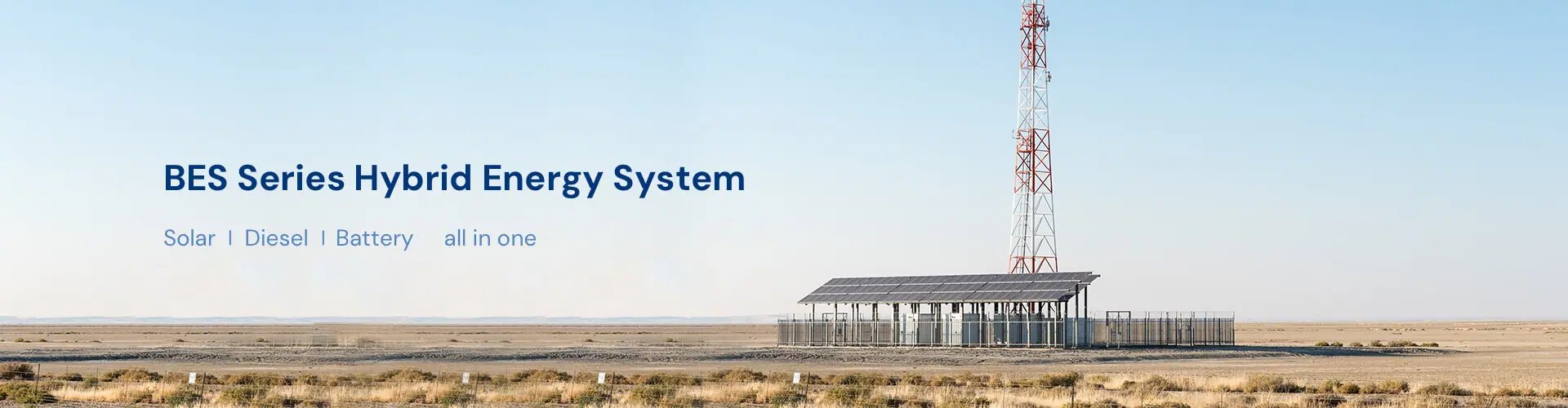

- COMMUNICATION STATION
