1250-3250kVA
HV Series

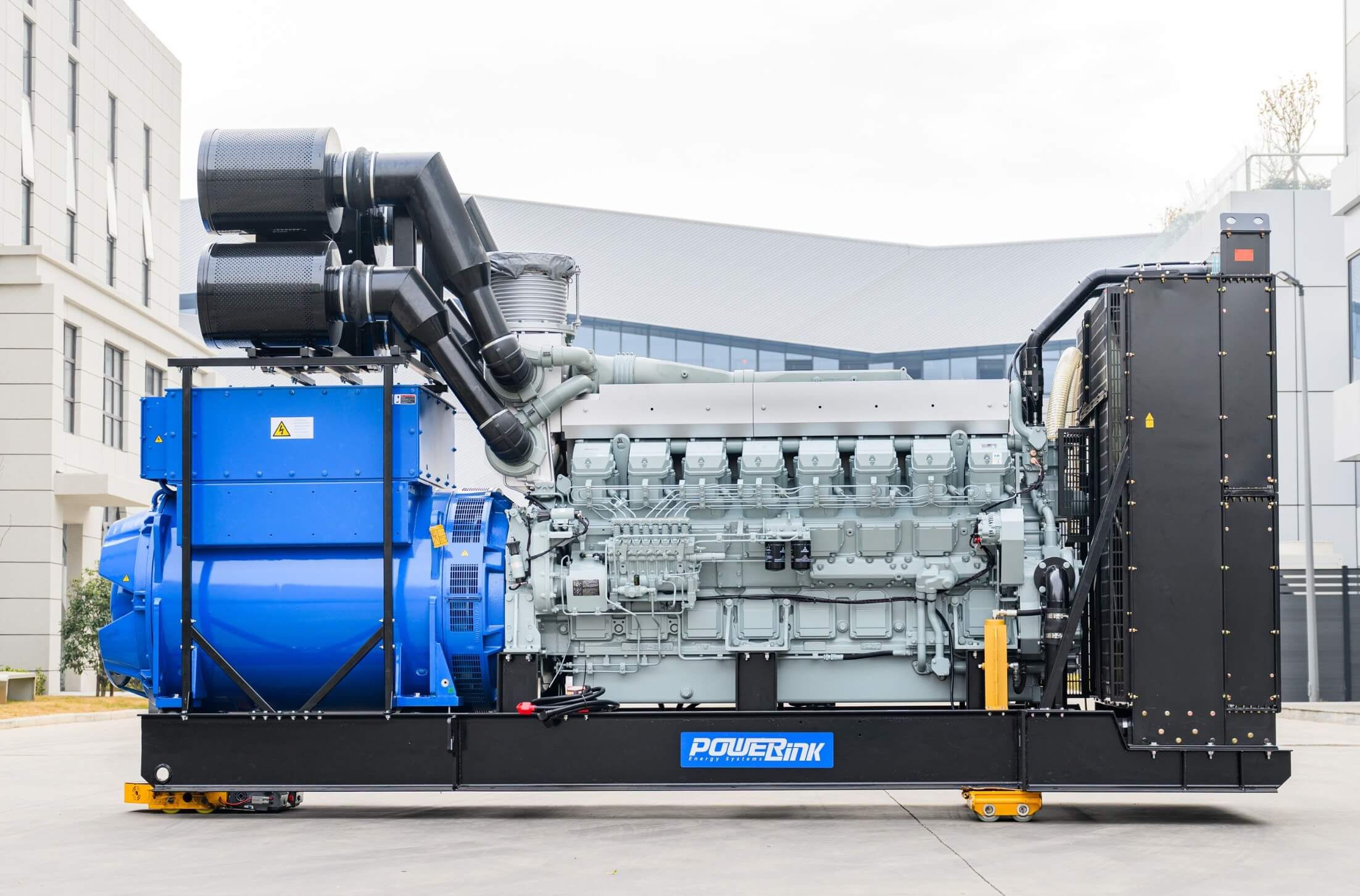

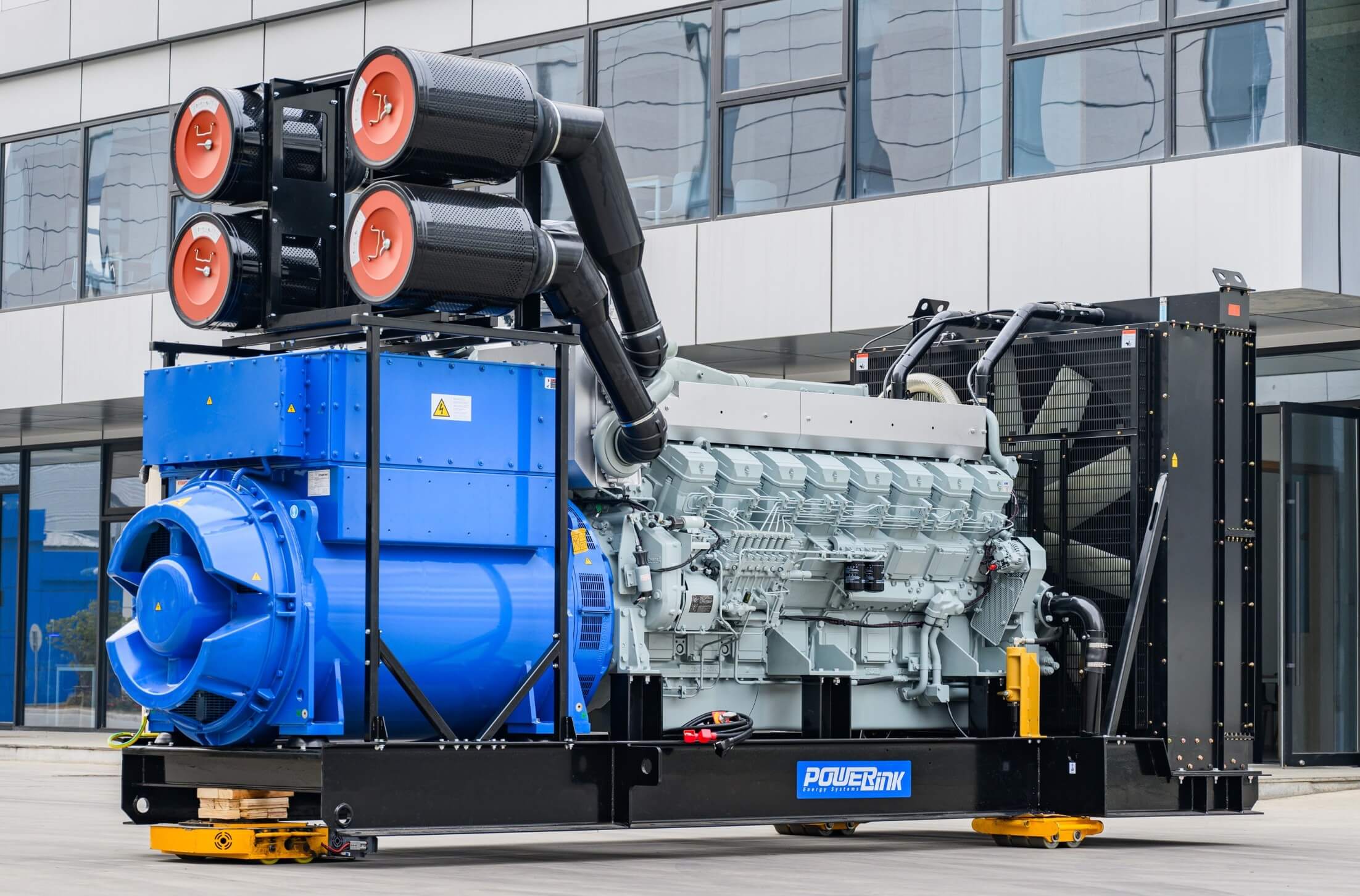

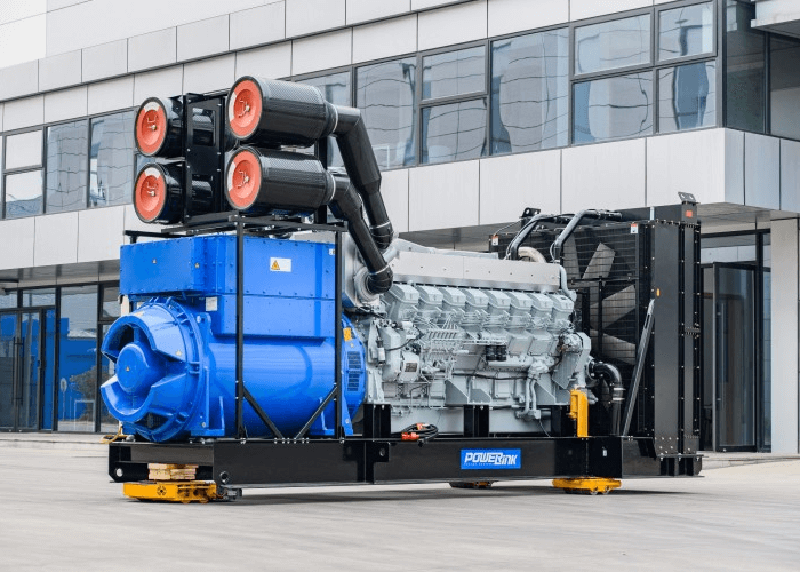

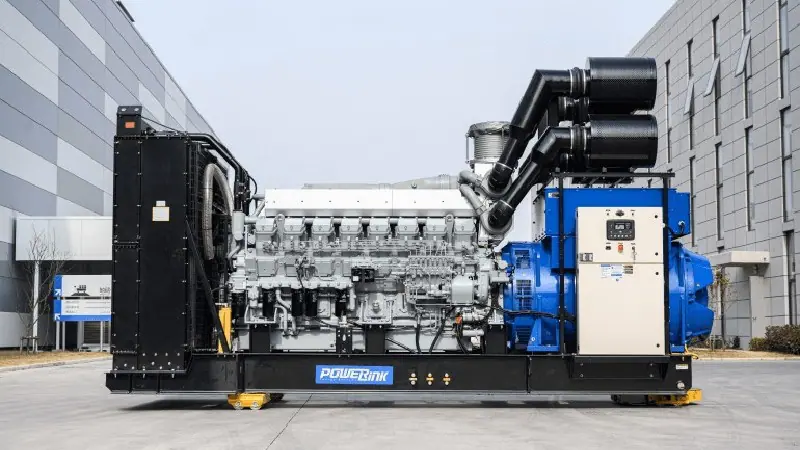

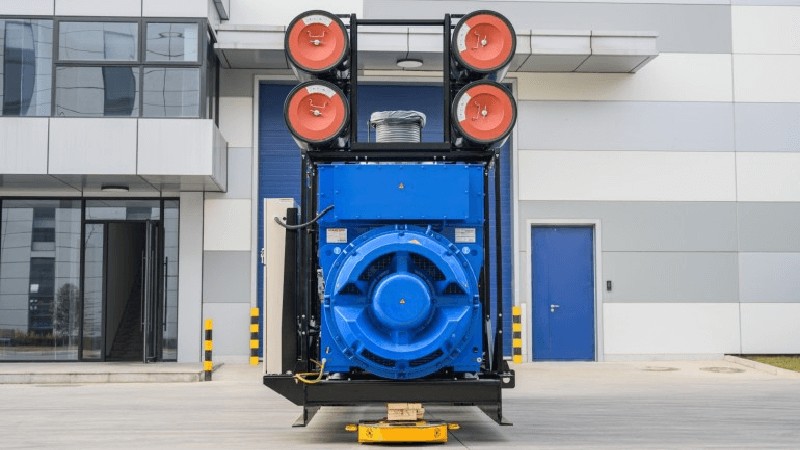

HV series – power range 1250-3250kVA, powered by Cummins, Perkins and Mitsubishi engines. The voltage can be selected 3300V, 6300V, 10500V, of course, the 60Hz frequency area can also choose 13800V. PowerLink is designed to provide customers with a complete solution to simplify installation and maintenance.
Ease of maintenance, Low operating cost
Easy to move and transport, quick installation
Easy to operate, Plug and Play
Strong power output can also be achieved in harsh environmental conditions
Features
Blue Tech ECO Products
Warranty
Strict Test
CE Certification
IS0 Certification
Low Noise Design
Diesel Generators in the same HV Series
| Code | Product Family | Compliance with standards | Emission standard | Genset Model | Voltage | PRP | ESP | Engine | Engine Brand | Specifications | ||
| leroy-somer | V | KVA | KW | KVA | KW | Model | ||||||
| 1000032030 | ME | CE | Non | HVM1290S | 3300V | 1290 | 1032 | 1425 | 1140 | S12R-PTA-C | SME |  |
| 1000032031 | ME | CE | Non | HVM1500S | 3300V | 1500 | 1200 | 1650 | 1320 | S12R-PTAA2-C | SME | |
| 1000032032 | ME | CE | Non | HVM1728S | 3300V | 1728 | 1382 | 1900 | 1520 | S16R-PTA-C | SME | |
| 1000032033 | ME | CE | Non | HVM2045S | 3300V | 2045 | 1636 | 2250 | 1800 | S16R-PTAA2-C | SME | |
| 1000032034 | EP | CE | Non | HVP1250S | 3300V | 1250 | 1000 | 1375 | 1100 | 4012-46TWG2A | Perkins | |
| 1000032035 | EP | CE | Non | HVP1500S | 3300V | 1500 | 1200 | 1650 | 1320 | 4012-46TAG2A | Perkins | |
| 1000032036 | EP | CE | Non | HVP1710S | 3300V | 1710 | 1368 | 1881 | 1505 | 4012-46TAG3A | Perkins | |
| 1000032037 | EP | CE | Non | HVP1850S | 3300V | 1850 | 1480 | 2035 | 1628 | 4016-61TRG1 | Perkins | |
| 1000032038 | EP | CE | Non | HVP2000S | 3300V | 2000 | 1600 | 2200 | 1760 | 4016-61TRG2 | Perkins | |
| 1000032039 | EP | CE | Non | HVP2250S | 3300V | 2250 | 1800 | 2500 | 2000 | 4016-61TRG3 | Perkins | |
| 1000032040 | WCS | CE | Non | HVC1275S | 3300V | 1275 | 1020 | 1400 | 1120 | KTA50-G3 | Cummins | |
| 1000032041 | WCS | CE | Non | HVC1500S | 3300V | 1500 | 1200 | 1675 | 1340 | KTA50GS8 | Cummins | |
| 1000032042 | WCS | CE | Non | HVC1600S | 3300V | 1601 | 1474 | 1843 | 1601 | QSK60-G12 | Cummins | |
| 1000032043 | WCS | CE | Non | HVC1875S | 3300V | 1875 | 1500 | 2063 | 1650 | QSK60-G3 | Cummins | |
| 1000032044 | WCS | CE | Non | HVC2045S | 3300V | 2045 | 1636 | 2250 | 1800 | QSK60-G4 | Cummins | |
| 1000032045 | WCS | CE | Non | HVC2750S | 3300V | 2750 | 2200 | 3000 | 2400 | QSK78-G9 | Cummins | |
| 1000032046 | WCS | CE | Non | HVC3360S | 3300V | 3362 | 2690 | 3762 | 3010 | QSK95-G4 | Cummins | |
| 1000032047 | WCS | CE | Tire 2 | HVC1400S | 3300V | 1400 | 1120 | 1540 | 1232 | QSK50-G3 | cummins | |
| 1000032048 | WCS | CE | Tire 2 | HVC1540S | 3300V | 1540 | 1232 | 1700 | 1360 | QSK50-G4 | cummins | |
| 1000032049 | WCS | CE | Tire 2 | HVC1650S | 3300V | 1650 | 1320 | 1825 | 1460 | QSK50-G7 | cummins | |
| 1000032050 | WCS | CE | Tire 2 | HVC1829S | 3300V | 1829 | 1463 | 2008 | 1606 | QSK60-G12 | cummins | |
| 1000032051 | WCS | CE | Tire 2 | HVC2000S | 3300V | 2003 | 1602 | 2254 | 1803 | QSK60-G13 | cummins | |
| 1000032052 | WCS | CE | Tire 2 | HVC2750S | 3300V | 2750 | 2200 | 3000 | 2400 | QSK78-G15 | cummins | |
| 1000032053 | WCS | CE | Tire 2 | HVC3100S | 3300V | 3126 | 2500 | 3500 | 2800 | QSK95-G5 | cummins | |
| 1000032054 | ME | CE | Non | HVM1290S | 6300V | 1290 | 1032 | 1425 | 1140 | S12R-PTA-C | SME | |
| 1000032055 | ME | CE | Non | HVM1500S | 6300V | 1500 | 1200 | 1650 | 1320 | S12R-PTAA2-C | SME | |
| 1000032056 | ME | CE | Non | HVM1728S | 6300V | 1728 | 1382 | 1900 | 1520 | S16R-PTA-C | SME | |
| 1000032057 | ME | CE | Non | HVM2045S | 6300V | 2045 | 1636 | 2250 | 1800 | S16R-PTAA2-C | SME | |
| 1000032058 | EP | CE | Non | HVP1250S | 6300V | 1250 | 1000 | 1375 | 1100 | 4012-46TWG2A | Perkins | |
| 1000032059 | EP | CE | Non | HVP1500S | 6300V | 1500 | 1200 | 1650 | 1320 | 4012-46TAG2A | Perkins | |
| 1000032060 | EP | CE | Non | HVP1710S | 6300V | 1710 | 1368 | 1881 | 1505 | 4012-46TAG3A | Perkins | |
| 1000032061 | EP | CE | Non | HVP1850S | 6300V | 1850 | 1480 | 2035 | 1628 | 4016-61TRG1 | Perkins | |
| 1000032062 | EP | CE | Non | HVP2000S | 6300V | 2000 | 1600 | 2200 | 1760 | 4016-61TRG2 | Perkins | |
| 1000032063 | EP | CE | Non | HVP2250S | 6300V | 2250 | 1800 | 2500 | 2000 | 4016-61TRG3 | Perkins | |
| 1000032064 | WCS | CE | Non | HVC1275S | 6300V | 1275 | 1020 | 1400 | 1120 | KTA50-G3 | Cummins | |
| 1000032065 | WCS | CE | Non | HVC1500S | 6300V | 1500 | 1200 | 1675 | 1340 | KTA50GS8 | Cummins | |
| 1000032066 | WCS | CE | Non | HVC1600S | 6300V | 1601 | 1474 | 1843 | 1601 | QSK60-G12 | Cummins | |
| 1000032067 | WCS | CE | Non | HVC1875S | 6300V | 1875 | 1500 | 2063 | 1650 | QSK60-G3 | Cummins | |
| 1000032068 | WCS | CE | Non | HVC2045S | 6300V | 2045 | 1636 | 2250 | 1800 | QSK60-G4 | Cummins | |
| 1000032069 | WCS | CE | Non | HVC2750S | 6300V | 2750 | 2200 | 3000 | 2400 | QSK78-G9 | Cummins | |
| 1000032070 | WCS | CE | Non | HVC3360S | 6300V | 3362 | 2690 | 3762 | 3010 | QSK95-G4 | Cummins | |
| 1000032071 | WCS | CE | Tire 2 | HVC1400S | 6300V | 1400 | 1120 | 1540 | 1232 | QSK50-G3 | cummins | |
| 1000032072 | WCS | CE | Tire 2 | HVC1540S | 6300V | 1540 | 1232 | 1700 | 1360 | QSK50-G4 | cummins | |
| 1000032073 | WCS | CE | Tire 2 | HVC1650S | 6300V | 1650 | 1320 | 1825 | 1460 | QSK50-G7 | cummins | |
| 1000032074 | WCS | CE | Tire 2 | HVC1829S | 6300V | 1829 | 1463 | 2008 | 1606 | QSK60-G12 | cummins | |
| 1000032075 | WCS | CE | Tire 2 | HVC2000S | 6300V | 2003 | 1602 | 2254 | 1803 | QSK60-G13 | cummins | |
| 1000032076 | WCS | CE | Tire 2 | HVC2750S | 6300V | 2750 | 2200 | 3000 | 2400 | QSK78-G15 | cummins | |
| 1000032077 | WCS | CE | Tire 2 | HVC3100S | 6300V | 3126 | 2500 | 3500 | 2800 | QSK95-G5 | cummins | |
| 1000032078 | ME | CE | Non | HVM1290S | 10500V | 1290 | 1032 | 1425 | 1140 | S12R-PTA-C | SME | |
| 1000032079 | ME | CE | Non | HVM1500S | 10500V | 1500 | 1200 | 1650 | 1320 | S12R-PTAA2-C | SME | |
| 1000032080 | ME | CE | Non | HVM1728S | 10500V | 1728 | 1382 | 1900 | 1520 | S16R-PTA-C | SME | |
| 1000032081 | ME | CE | Non | HVM2045S | 10500V | 2045 | 1636 | 2250 | 1800 | S16R-PTAA2-C | SME | |
| 1000032082 | EP | CE | Non | HVP1250S | 10500V | 1250 | 1000 | 1375 | 1100 | 4012-46TWG2A | Perkins | |
| 1000032083 | EP | CE | Non | HVP1500S | 10500V | 1500 | 1200 | 1650 | 1320 | 4012-46TAG2A | Perkins | |
| 1000032084 | EP | CE | Non | HVP1710S | 10500V | 1710 | 1368 | 1881 | 1505 | 4012-46TAG3A | Perkins | |
| 1000032085 | EP | CE | Non | HVP1850S | 10500V | 1850 | 1480 | 2035 | 1628 | 4016-61TRG1 | Perkins | |
| 1000032086 | EP | CE | Non | HVP2000S | 10500V | 2000 | 1600 | 2200 | 1760 | 4016-61TRG2 | Perkins | |
| 1000032087 | EP | CE | Non | HVP2250S | 10500V | 2250 | 1800 | 2500 | 2000 | 4016-61TRG3 | Perkins | |
| 1000032088 | WCS | CE | Non | HVC1275S | 10500V | 1275 | 1020 | 1400 | 1120 | KTA50-G3 | Cummins | |
| 1000032089 | WCS | CE | Non | HVC1500S | 10500V | 1500 | 1200 | 1675 | 1340 | KTA50GS8 | Cummins | |
| 1000032090 | WCS | CE | Non | HVC1600S | 10500V | 1601 | 1474 | 1843 | 1601 | QSK60-G12 | Cummins | |
| 1000032091 | WCS | CE | Non | HVC1875S | 10500V | 1875 | 1500 | 2063 | 1650 | QSK60-G3 | Cummins | |
| 1000032092 | WCS | CE | Non | HVC2045S | 10500V | 2045 | 1636 | 2250 | 1800 | QSK60-G4 | Cummins | |
| 1000032093 | WCS | CE | Non | HVC2750S | 10500V | 2750 | 2200 | 3000 | 2400 | QSK78-G9 | Cummins | |
| 1000032094 | WCS | CE | Non | HVC3360S | 10500V | 3362 | 2690 | 3762 | 3010 | QSK95-G4 | Cummins | |
| 1000032095 | WCS | CE | Tire 2 | HVC1400S | 10500V | 1400 | 1120 | 1540 | 1232 | QSK50-G3 | cummins | |
| 1000032096 | WCS | CE | Tire 2 | HVC1540S | 10500V | 1540 | 1232 | 1700 | 1360 | QSK50-G4 | cummins | |
| 1000032097 | WCS | CE | Tire 2 | HVC1650S | 10500V | 1650 | 1320 | 1825 | 1460 | QSK50-G7 | cummins | |
| 1000032098 | WCS | CE | Tire 2 | HVC1829S | 10500V | 1829 | 1463 | 2008 | 1606 | QSK60-G12 | cummins | |
| 1000032099 | WCS | CE | Tire 2 | HVC2000S | 10500V | 2003 | 1602 | 2254 | 1803 | QSK60-G13 | cummins | |
| 1000032100 | WCS | CE | Tire 2 | HVC2750S | 10500V | 2750 | 2200 | 3000 | 2400 | QSK78-G15 | cummins | |
| 1000032101 | WCS | CE | Tire 2 | HVC3100S | 10500V | 3126 | 2500 | 3500 | 2800 | QSK95-G5 | cummins | |
