200 kWe

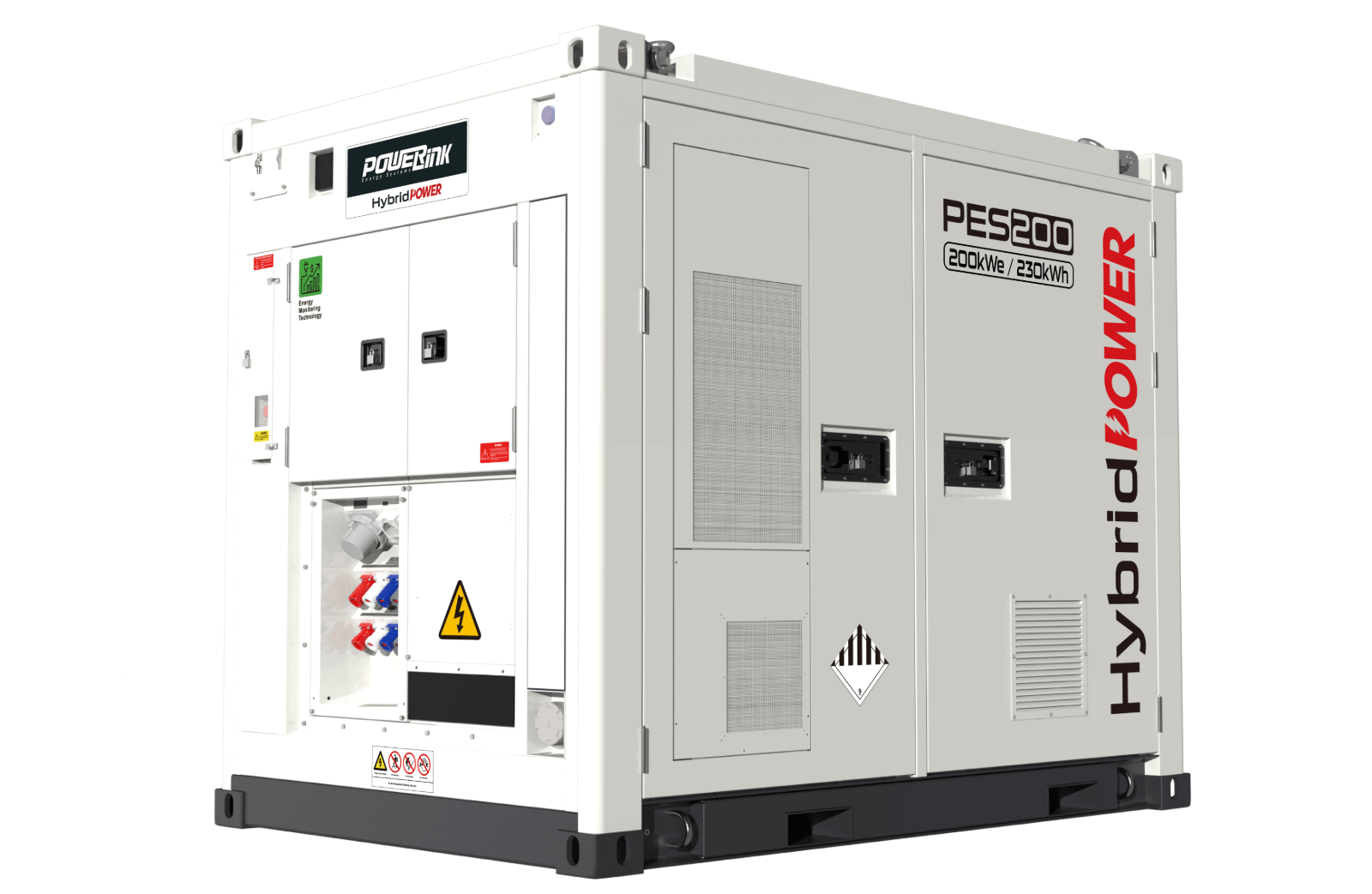

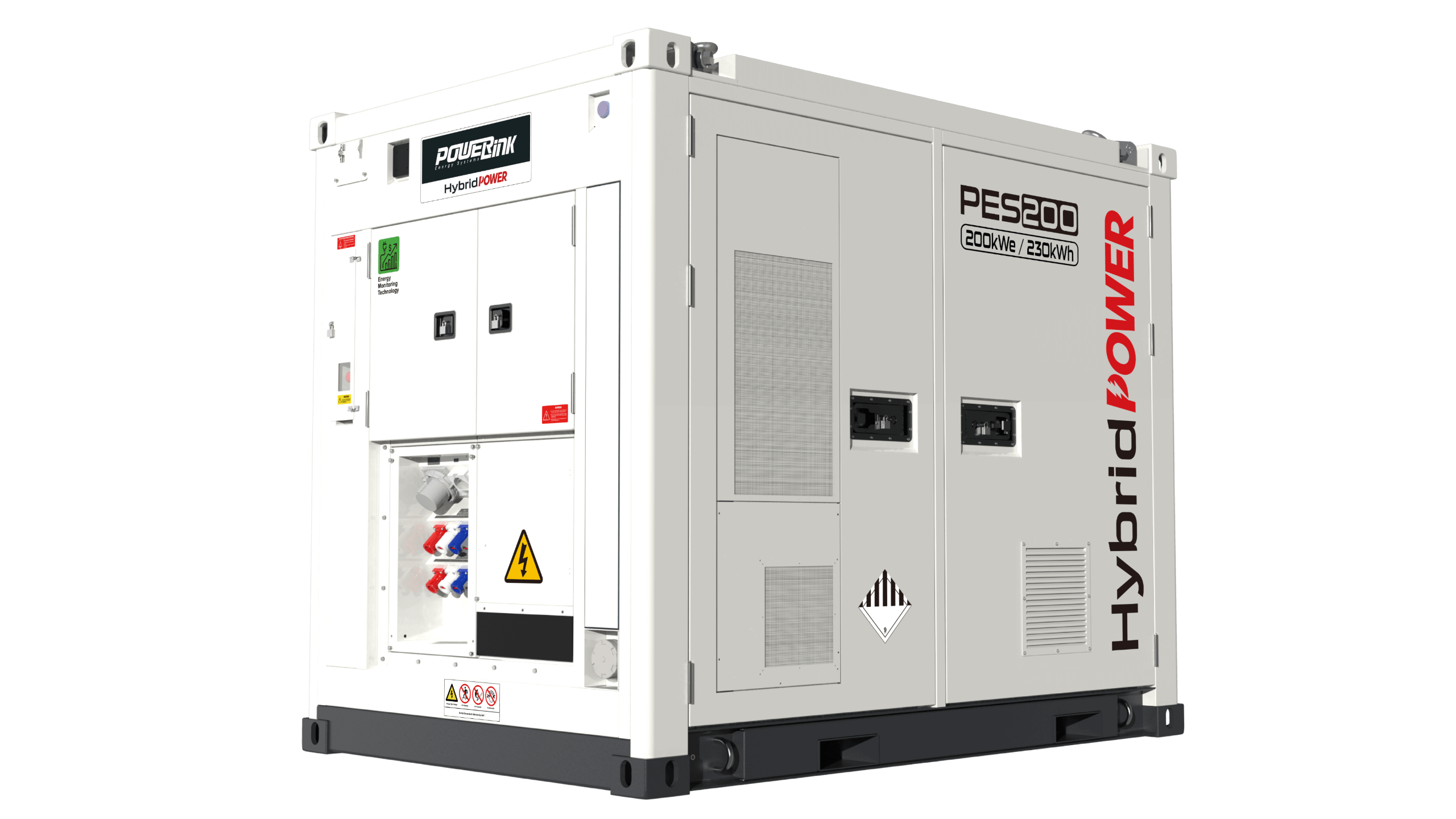

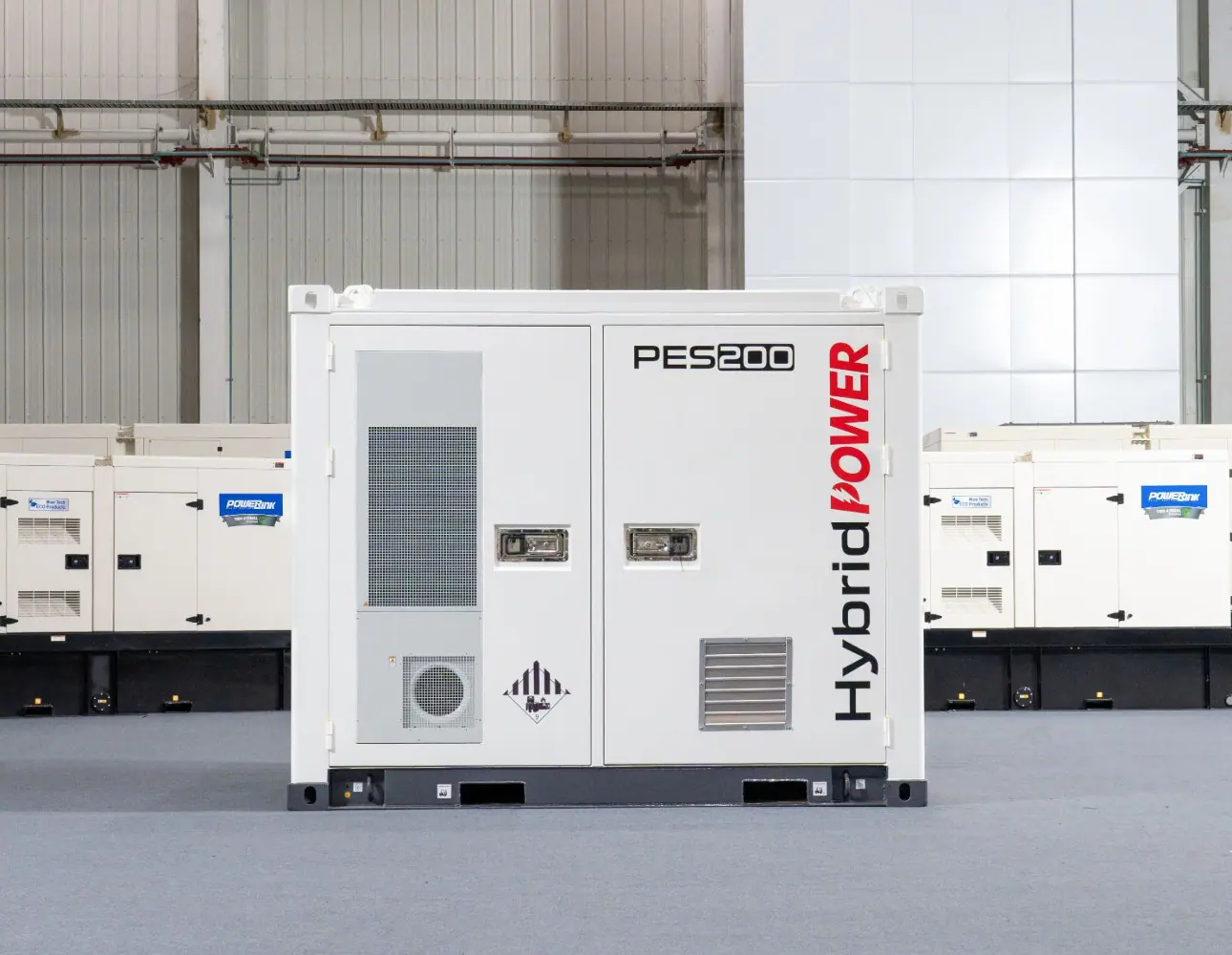

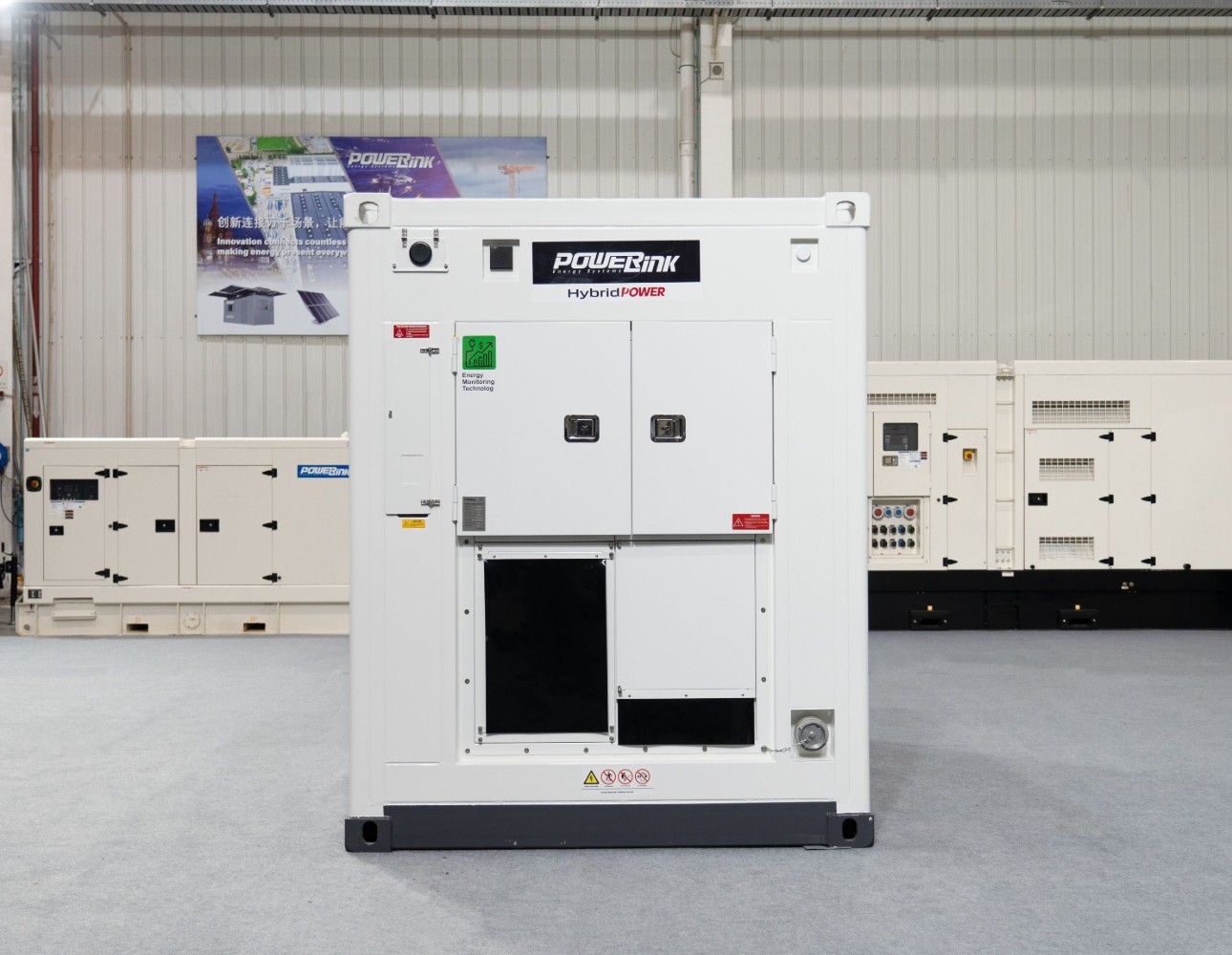

PES 200
PowerLink PES200—Portable hybrid power technology engineered for cost efficiency and profitability. Designed to serve remote island grids, industrial sites, construction projects, mining operations, and rental energy markets, it prioritizes battery storage while incorporating solar panels, diesel backups, and grid compatibility. Perfect for irregular load profiles, it reduces generator dependence by up to 90%, slashing fuel and maintenance costs—optimized further with on-site solar integration.
Modular structure design
Genuine spare parts
Plug-and-Play Convenience
Rugged & Reliable Performance
Features
BMS with Three-Level Management Architecture
Features hierarchical control over battery stacks, clusters, and packs, with a total battery capacity of 115.2kWh for stable energy storage.
Intelligent EMS
Provides real-time monitoring and dispatching of BMS, PCS, and other core systems. Accessible via local HMI, remote APP, or Web portal for hassle-free operation.
Hybrid Energy System
With 200kWe output power, seamlessly integrates multiple energy sources—battery, grid power, diesel generation, and solar PV
Ask an Expert
PowerLink provides tailored, high-efficiency energy solutions for sustainable power around the world.
86-2157-858-099 ext 8820
Specification
| System Output Power | kWe | 200 |
| Output VOLTAGE | V | 380/400/415 |
| Battery Capacity | kWh | 230.4 |
| PV Input | kWp | 60 |
| AC Charger | kW | 2*30 |
| 40′ Loading | qty | 4 |
| Noise Level | dBA@7m | 58 |
| Dry Weight | kg | 5787 |
| Dimensions | mm | 2780*1850*2280 |
Download
PES 200 Specification Datasheet
PES200-Specification
Register & Download
PES 200 Warranty Manual
BESS Warranty Manual-5 Years-20250924
Register & Download
PES 200 Brochure Manual
BESS Brochure Manual-5 Years-20250924
Register & Download
FAQs
What are the output power and battery capacity of the PES200 unit?
Output power: 200 KWe，Battery capacity: 230.4 KWh
What is the rated power of the PV system matched with the PES200 unit?
PV Rated power: 60 KWp
What charging/discharging rate does the battery of the PES200 unit support?
Support 1C charging / discharging
What is the overall protection level of the PES200 unit? And what kind of operating environment is this protection level suitable for?
The overall protection level is IP54, which is suitable for harsh operating conditions.
What are the specifications of the interfaces and their corresponding powers provided by the PES200 unit at the input and output ends of the power connection respectively?
Power connection input: AC socket: 3P / 5W, 1x200kW, 2x30kW，AC copper: 3P / 4W, 200 kW，DC socket: 60 kW Power connection output：AC socket: 3P / 5W, 1×200 kW，AC socket: 1P, 1×16 A; 3P, 1x32A，AC copper: 3P / 4W, 200 kW
