ULTRA-HIGH PRESSURE / DISCHARGE PRESSURE：17-25BAR
DIESEL AIR COMPRESSOR
The compressor features a rugged SECC steel canopy with IP54 protection, offering excellent corrosion resistance and superior sealing against dust and moisture. Its spacious maintenance door provides full access to critical components, enabling quick, comprehensive servicing and reduced downtime.
Powered by a fuel-efficient, high-performance diesel engine and paired with an oil-injected twin-screw airend, the unit delivers consistent, pulsation-free airflow. The engine and compressor are connected via a high-flexibility coupling, minimizing vibration and enhancing operational smoothness.
Rental
Mining
Factory
Outdoor Constructions
Port
Features
Environmental Adaptability
Ambient temperature: -25°C ~ 50°C. SECC canopy: IP54.
Core Power & Air System
Efficient Diesel engine. Oil-injected double-screw rotor compressor.
Control & Filtration
PLC intelligent controller. Dual protection air filter. industrial grade Muffler. 0-100% discharge adjustment.
Mobility & Fuel
Four-wheel drive, foldable structure.Continuous operation > 8h
Ask an Expert
PowerLink provides tailored, high-efficiency energy solutions for sustainable power around the world.
86-2157-858-099 ext 8820
Specification

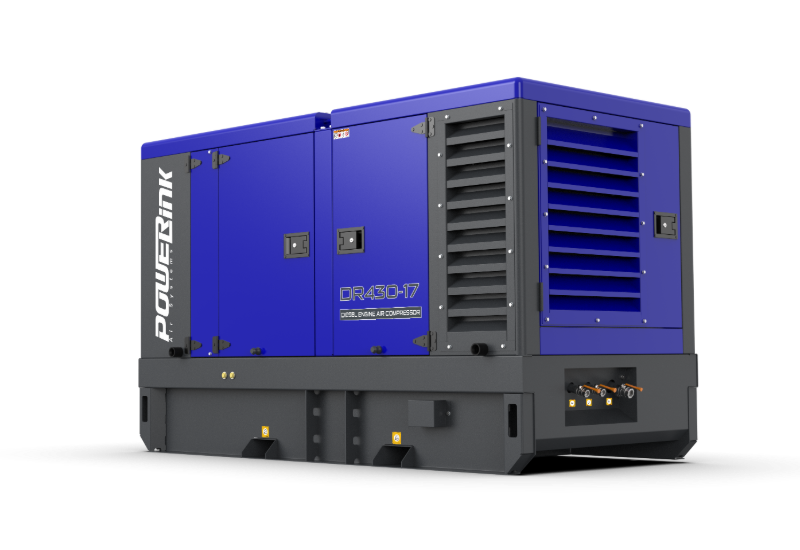

DR430-17
| Speed | rpm | 2200rpm |
| Discharge pressure | bar | 17.0bar |
| Discharge flow | cfm | 374cfm |
| Power | kw | 132 |
| Dimensions | mm | 2620*1456*1714 |
| Tank | L | 240 |
| Weight | kg | 2090 |
| Engine brand | / | DECE |
| Structure | / | Single |
DR430-17 Specification Datasheet
Register & DownloadDR430-17 Operation Manual
DR430-17 Parts Manual
DR550-17
| Speed | rpm | 1900rpm |
| Discharge pressure | bar | 17.0bar |
| Discharge flow | cfm | 505cfm |
| Power | kw | 176 |
| Dimensions | mm | 3613*1636*1819 |
| Tank | L | 300 |
| Weight | kg | 2500 |
| Engine brand | / | DECE |
| Structure | / | Gull-wing |
DR550-17 Specification Datasheet
DR550-17 Operation Manual
DR550-17 Parts Manual
DR600-17
| Speed | rpm | 1900rpm |
| Discharge pressure | bar | 17.0bar |
| Discharge flow | cfm | 568cfm |
| Power | kw | 176 |
| Dimensions | mm | 2620*1456*1714 |
| Tank | L | 170 |
| Weight | kg | 1660 |
| Engine brand | / | DECE |
| Structure | / | Gull-wing |
DR600-17 Specification Datasheet
DR600-17 Operation Manual
DR600-17 Parts Manual
DR700-17
| Speed | rpm | 1900rpm |
| Discharge pressure | bar | 17.0bar |
| Discharge flow | cfm | 657cfm |
| Power | kw | 195 |
| Dimensions | mm | 2560*1340*1570 |
| Tank | L | 240 |
| Weight | kg | 2090 |
| Engine brand | / | DECE |
| Structure | / | Gull-wing |
DR700-17 Specification Datasheet
DR700-17 Operation Manual
DR700-17 Parts Manual
DR800-17
| Speed | rpm | 1900rpm |
| Discharge pressure | bar | 17.0bar |
| Discharge flow | cfm | 815cfm |
| Power | kw | 250 |
| Dimensions | mm | 3695*1410*1841 |
| Tank | L | 300 |
| Weight | kg | 2504 |
| Engine brand | / | DECE |
| Structure | / | Gull-wing |
DR800-17 Specification Datasheet
DR800-17 Operation Manual
DR800-17 Parts Manual
DR700-24
| Speed | rpm | 1900rpm |
| Discharge pressure | bar | 25.0bar |
| Discharge flow | cfm | 714cfm |
| Power | kw | 250 |
| Dimensions | mm | 3690*1850*1400 |
| Tank | L | 450 |
| Weight | kg | 3205 |
| Engine brand | / | DECE |
| Structure | / | Heavy-duty |
DR700-24 Specification Datasheet
DR700-24 Operation Manual
DR700-24 Parts Manual
DR1100-24
| Speed | rpm | 1800rpm |
| Discharge pressure | bar | 25.0bar |
| Discharge flow | cfm | 1084cfm |
| Power | kw | 383 |
| Dimensions | mm | 4697*2150*2462 |
| Tank | L | 780 |
| Weight | kg | 5231 |
| Engine brand | / | DECE |
| Structure | / | Heavy-duty |
DR1100-24 Specification Datasheet
DR1100-24 Operation Manual
DR1100-24 Parts Manual
DR1250-24
| Speed | rpm | 1900rpm |
| Discharge pressure | bar | 25.0bar |
| Discharge flow | cfm | 1228cfm |
| Power | kw | 383 |
| Dimensions | mm | 4697*2150*2462 |
| Tank | L | 780 |
| Weight | kg | 5231 |
| Engine brand | / | DECE |
| Structure | / | Heavy-duty |
DR1250-24 Specification Datasheet
DR1250-24 Operation Manual
DR1250-24 Parts Manual
