6.5 kWp
STS6500

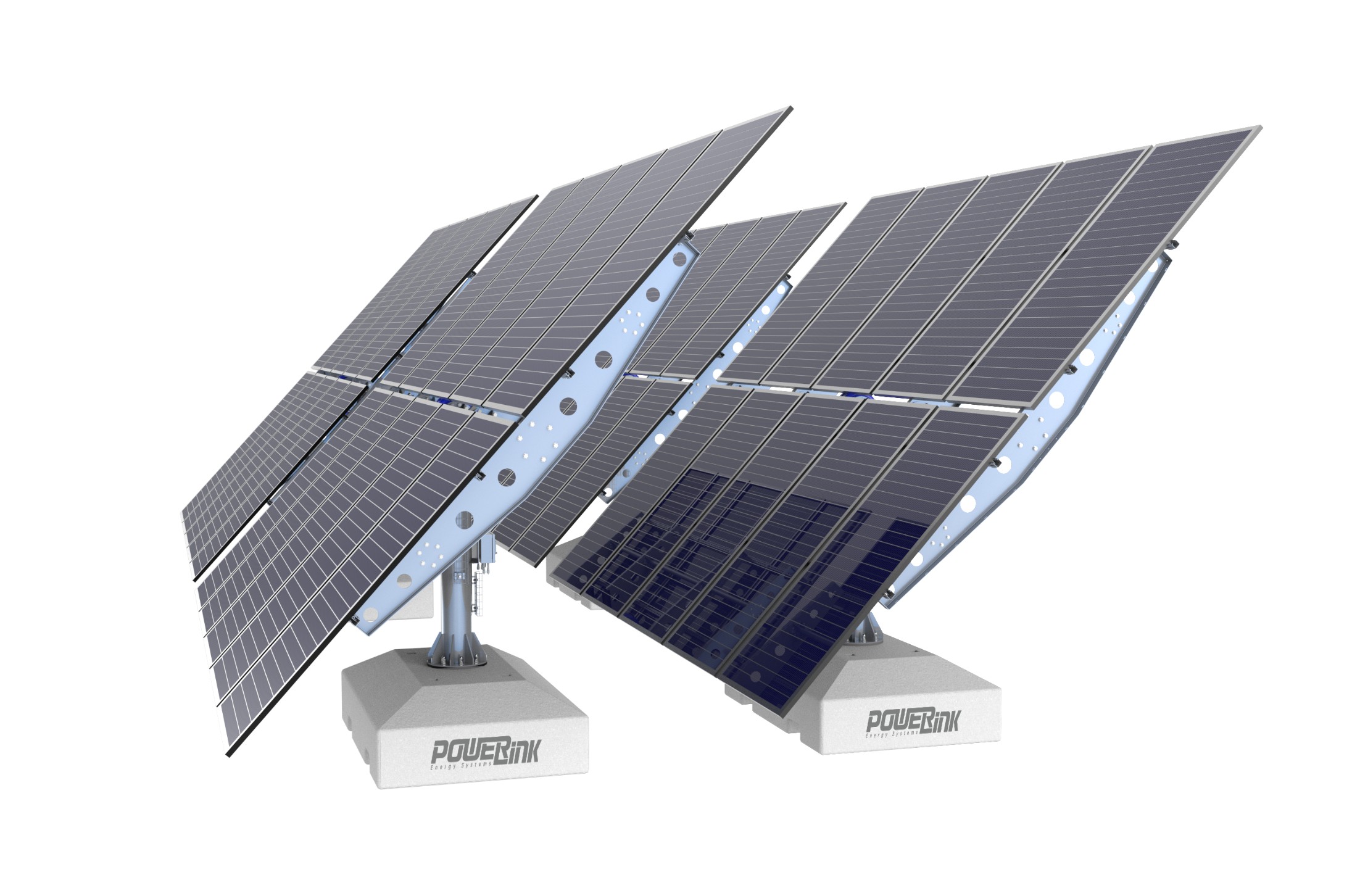

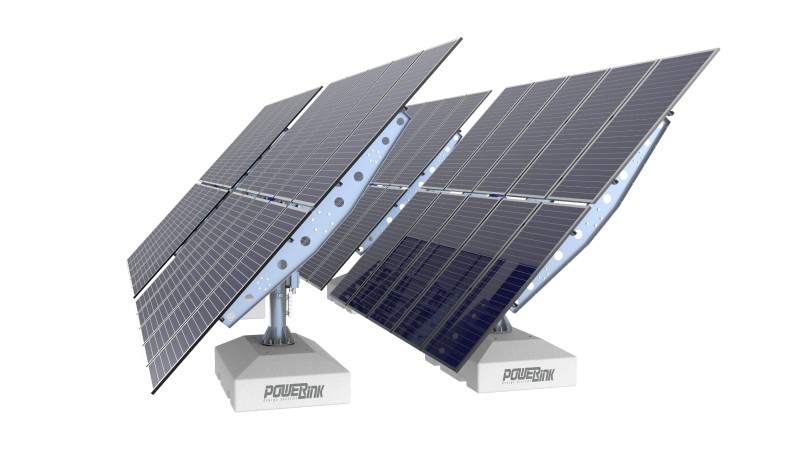

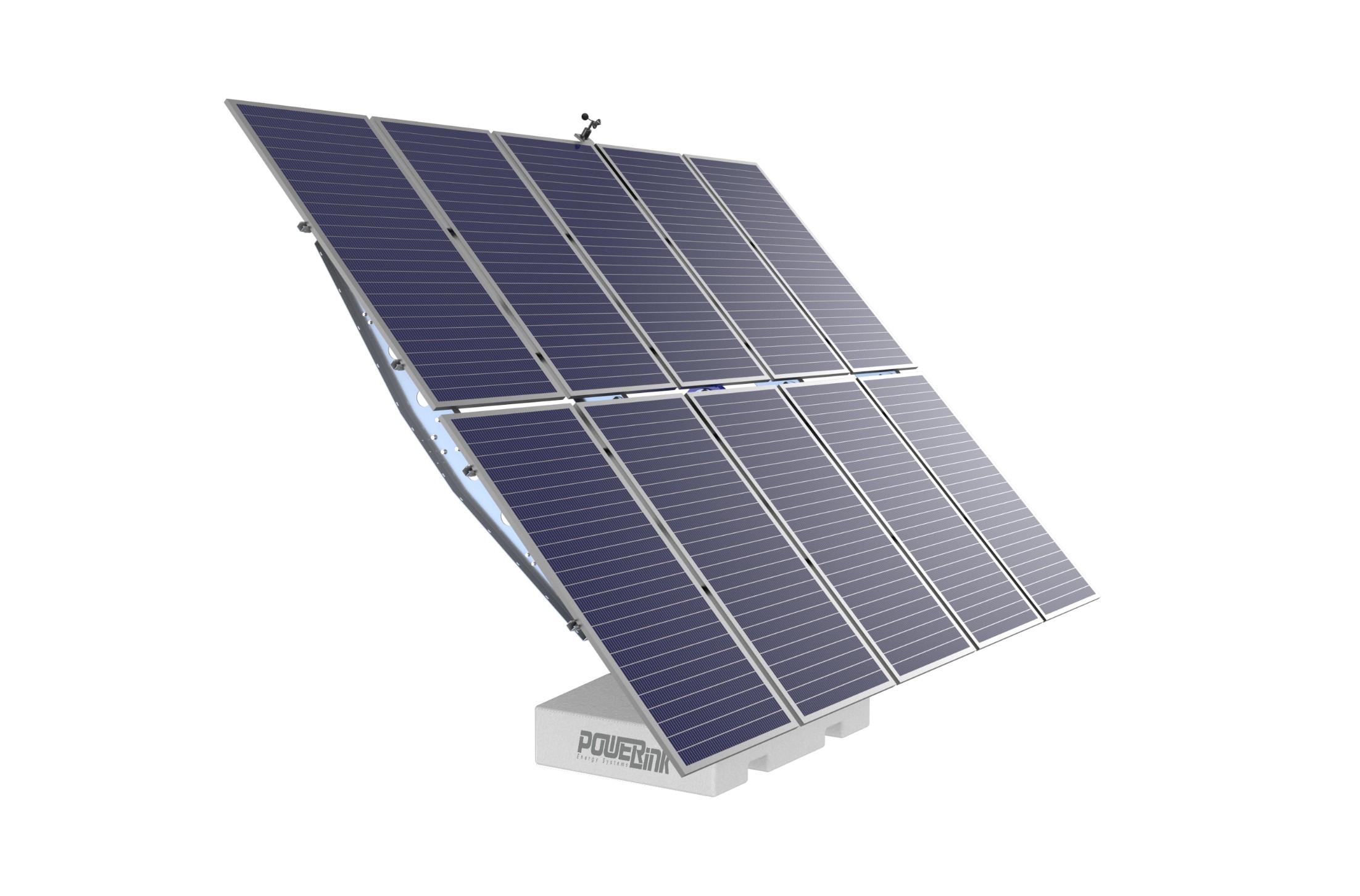

Fixed solar racks often underperform, diesel gensets drain budgets on fuel and upkeep, and remote farms or industrial sites still struggle with unreliable off-grid power. The STS6500 dual axis solar tracking system is an integrated 6.5kWp solar tracker built to replace both approaches.
Fitted with a GPS astronomical controller, it auto-adjusts panel azimuth and tilt angles through the day so panels stay aligned with the sun from morning to evening. Power output runs up to 30% higher than stationary PV setups, improving light utilization and delivering faster payback on the same land.
It pairs with PowerLink’s full range of energy storage units, storing surplus daytime solar power in batteries for consistent round-the-clock supply, and removes the need for diesel generators that burn fuel and emit exhaust at remote sites.
Dual axis rotation
GPS astronomical controller
User friendly
Easy Installation
Features
24/7 High Efficiency
Maintains high generation efficiency through the day to maximize total energy output at all times.
High Temperature Resistant
Handles high-temperature working conditions with only minor power attenuation thanks to strong heat resistance.
Anti-shading
Keeps generating power when partially shaded, performing well against shadow occlusion.
Anti-dust
Reduces dust accumulation to stabilize power output and cut maintenance frequency.
Ask an Expert
PowerLink provides tailored, high-efficiency energy solutions for sustainable power around the world.
86-2157-858-099 ext 8820
info@powerlinkenergy.comSTS6500 Parameter
STS6500
| Basic information | Transport Parameters | ||
| Product Model | STS6500 | Excluding concrete counter weight | 910 kg
1170×900×2300 mm |
| Drive Type | Dual axis rotation | Weight & Dimensions | |
| Output power | 6.5kWp | Including concrete counterweight | 4865 kg
2300×1400×2483 mm |
| Max operating voltage | 520VDC | Weight & Dimensions | |
| Protection level | IP54 | 40′ Loading | 6 sets |
STS6500-E Specification
Register & DownloadSTS6500-E Warranty
Applications
- Residential Scenario
- Small Farm
Residential Scenario
The STS6500 6.5kWp dual-axis solar tracking system fits family homes well. Its controller shifts panel direction and angle automatically to follow the sun from morning to evening, collecting far more sunlight than fixed solar systems. Combined with PowerLink storage batteries, it banks daytime electricity for nighttime use, supporting 24-hour off-grid power and delivering stable, clean energy for daily household life.
Residential Scenario Application
Small Farm
The STS6500 dual-axis photovoltaic tracking system boosts solar production noticeably. Its intelligent controller traces the sun’s path, adjusting panels horizontally and vertically to raise light utilization efficiency. Matched with PowerLink energy storage, it delivers continuous off-grid power for farming facilities, going beyond traditional fixed PV and offering a cost-effective clean energy option for agricultural production.
Small Farm ApplicationRelated Products
CHE30 Products
The EC range of diesel generators, powered by Cummins engines, provides 30 kVA to 1500 kVA for reliable and efficient power.
FAQs
Can the STS-6500 system be paired with RHE hybrid energy units? How many STS units can one RHE unit support?
Pairing is fully supported, and a single RHE unit can connect to multiple STS systems. Each STS unit delivers 6.5kWp of power. The exact matching quantity depends on three key factors: local latitude and longitude (which impacts annual power generation), the maximum solar inverter input capacity of the RHE hybrid system, and battery storage capacity.
Is the STS-6500 PV tracking system complicated to install? What tools are required?
Installation is straightforward. All components are supplied as a complete kit. Two workers can finish assembly in approximately four hours, followed by commissioning within one hour by following the official commissioning manual.
A 5-ton forklift or lifting equipment is required only to move concrete counterweights; standard wrenches suffice for assembling all other parts.
Compared with conventional fixed PV systems, how much efficiency gain does the STS-6000 solar tracking system deliver?
Equipped with GPS positioning and dual-axis rotary actuators, the STS-6000 continuously aligns solar panels perpendicular to sunlight. It boosts power generation efficiency by roughly 30% versus stationary PV systems without tracking functions.
Do these PV systems require frequent maintenance?
Regular frequent maintenance is unnecessary. After initial commissioning, only monthly cleaning of dust accumulated on solar panels is required. CRSP series units feature robust electronic controls and durable solar modules, further cutting maintenance frequency.
Can I remotely monitor and control these systems via a mobile APP?
Absolutely. You may download the official PowerLink mobile APP to access real-time operational data and send remote control commands for STS series systems.
