3000 kWe

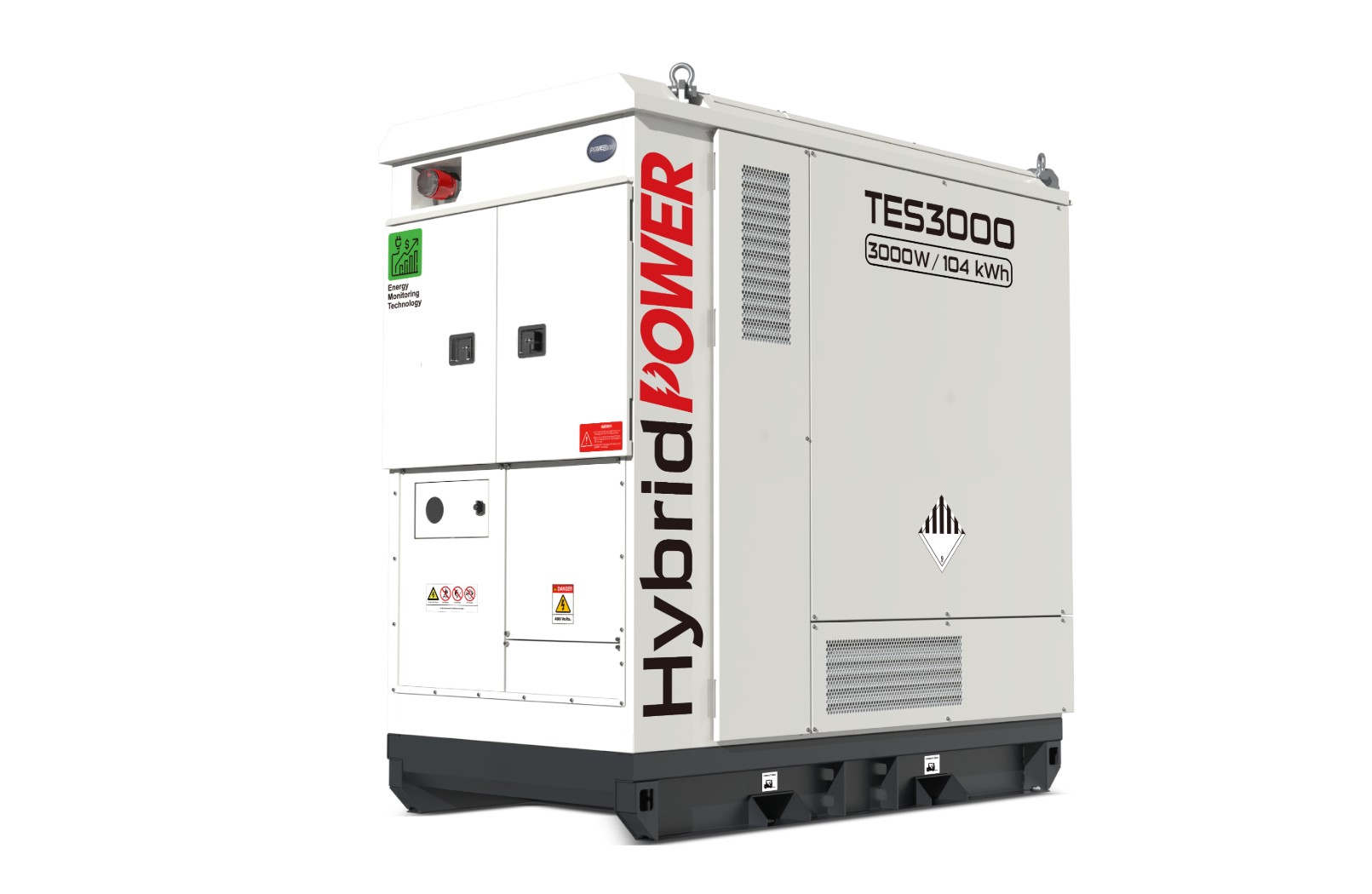

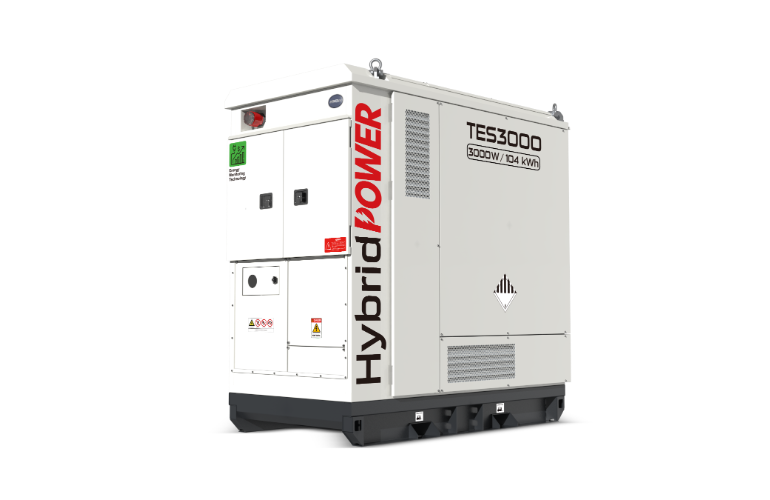

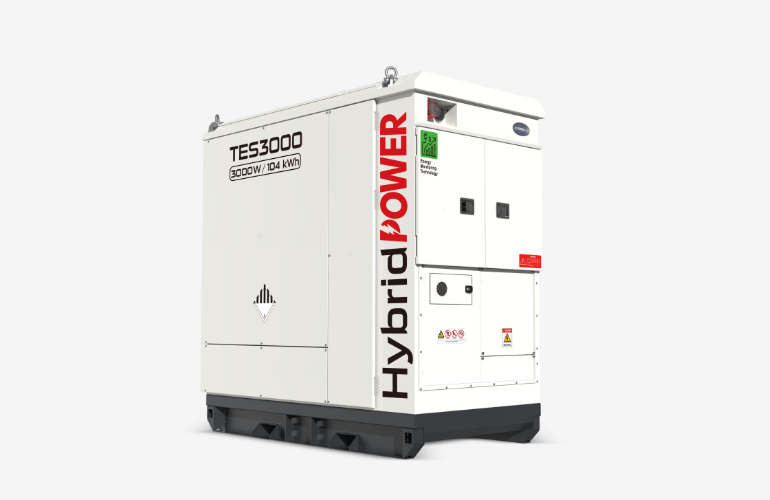

TES3000
Powerlink TES3000, a high-performance series of hybrid power supply systems exclusively engineered for 5G/4G communication base stations. Built on the core of “multi-energy complementation, intelligent scheduling and green low-carbon”, TES3000 integrates mains power, photovoltaic, energy storage and diesel generator power, and is equipped with the proprietary EnerWeb energy management platform and EMS intelligent control system. Adapting to extreme temperatures (-20℃~55℃), coastal corrosive environments (IP54, 4C anti-corrosion) and off-grid remote areas, it features high power conversion efficiency (up to 98.5%), low line loss and modular plug-and-play design.
Modular structure design
Genuine spare parts
Plug-and-Play Convenience
Rugged & Reliable Performance
Features
Ultra-portable deployment
Lightweight modular structure, plug-and-play design
Low-power intelligent scheduling
supports off-grid PV+energy storage independent power supply
Intelligent management
Access to EnerWeb platform, real-time monitoring of 200+ operating parameters, remote O&M
Ask an Expert
PowerLink provides tailored, high-efficiency energy solutions for sustainable power around the world.
86-2157-858-099 ext 8820
Specification
| Output Power | kVA/kW | 12/12 |
| Output voltage | AC V | 220/230/240 |
| Battery Capacity | kWh | 21.1 |
| Grid Power Input | kVA/kW | 12/12 |
| Gen Power Input | kVA/kW | 37/30 |
| Solar Power Capacity | kWp | 18 |
| 40′ Loading | qty | 4 |
| Noise Level(hybrid mode) | dBA@7m | 55 |
| Noise Level(battery mode) | dBA@7m | 50 |
| Dry Weight | kg | 1350 |
| Dimensions | mm | 2100*1150*1700 |
