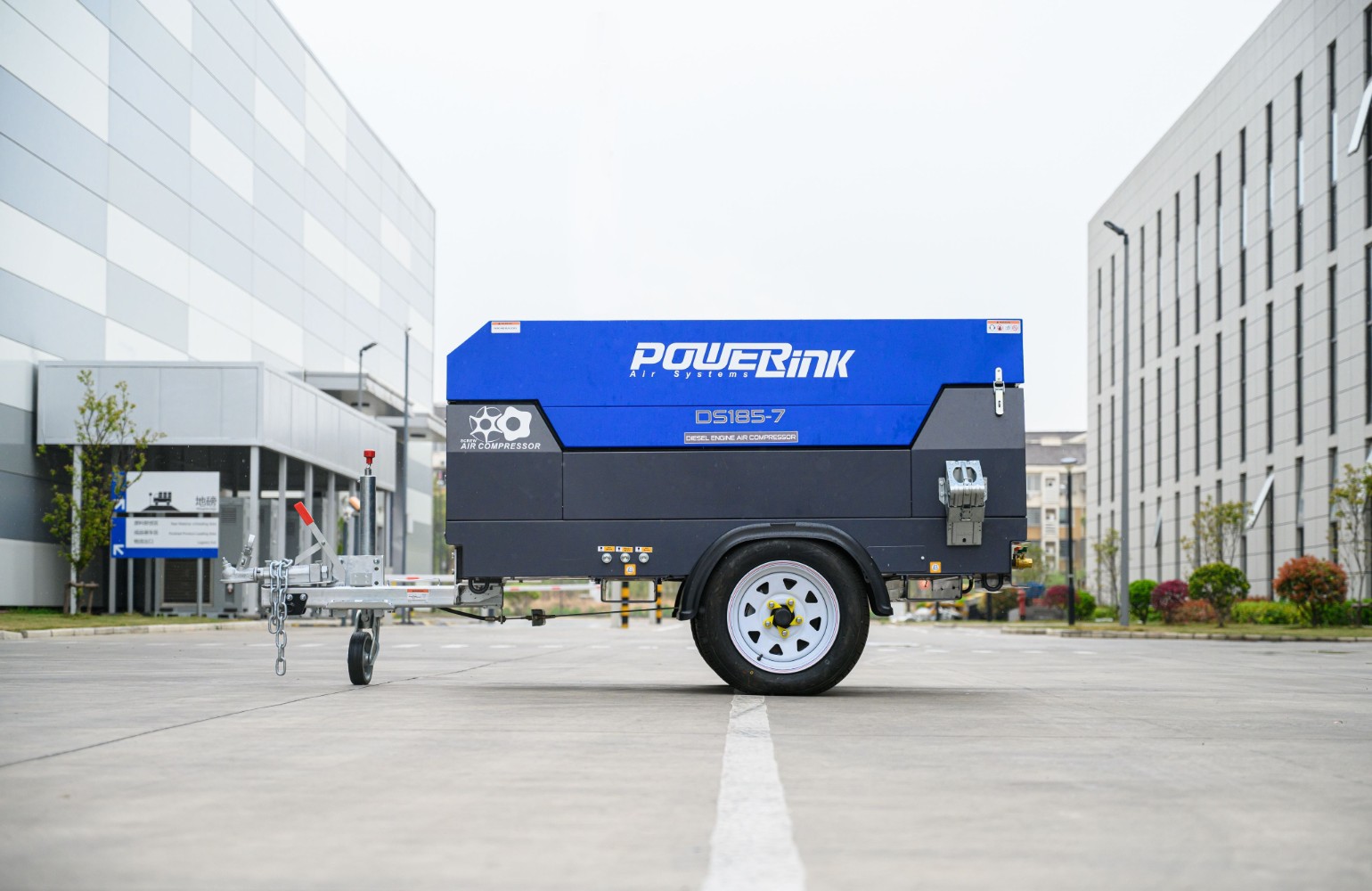

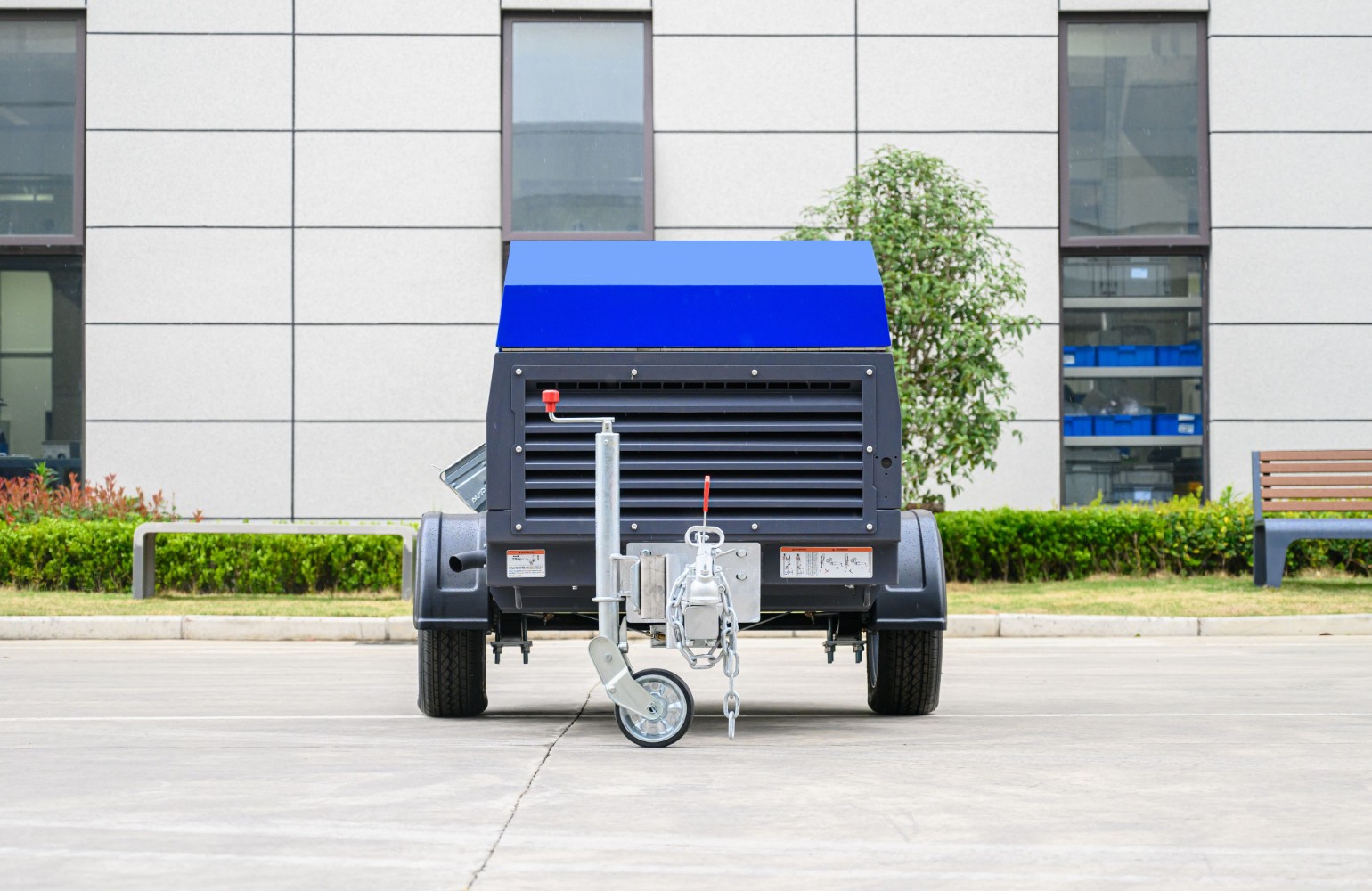

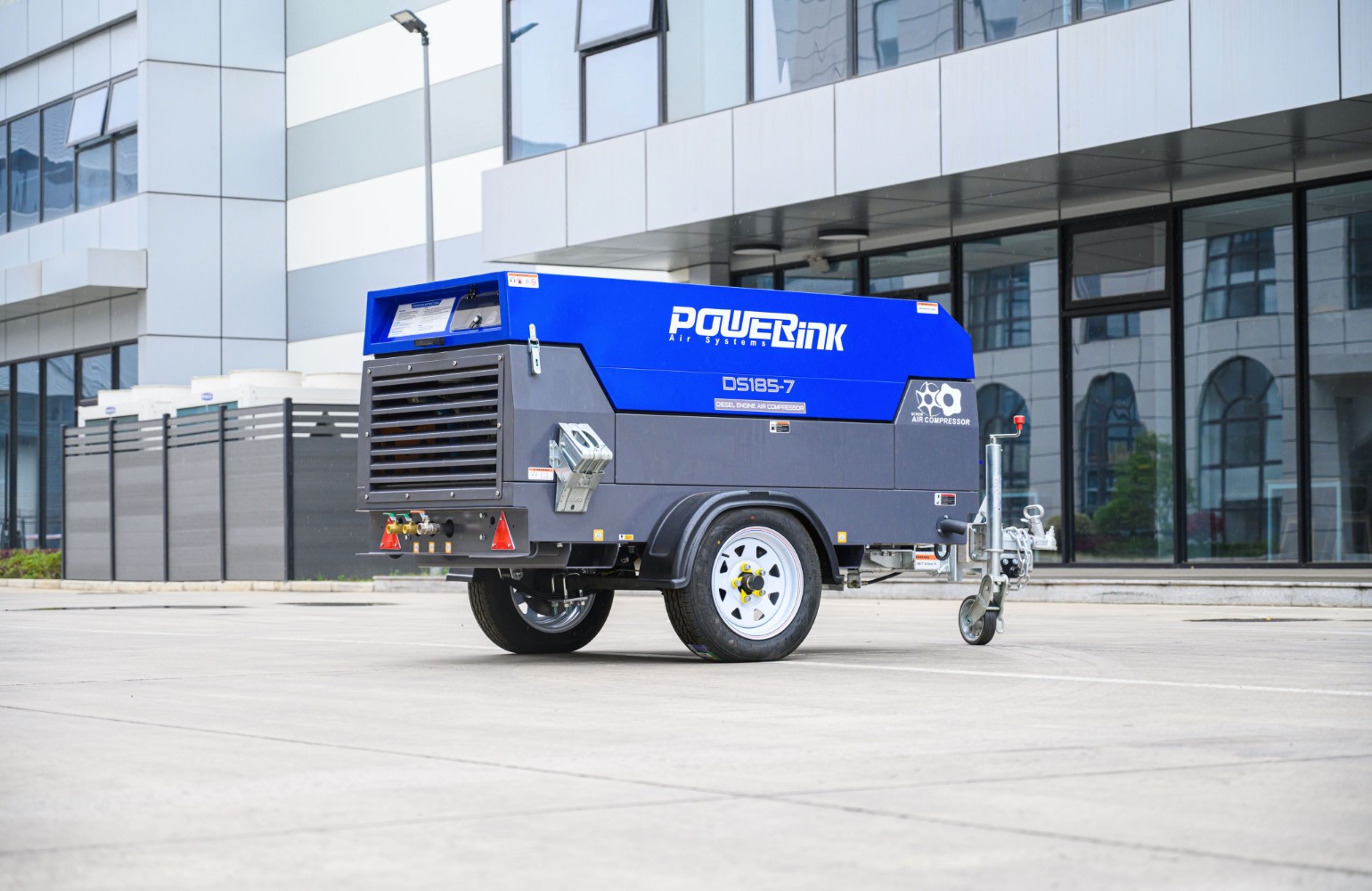

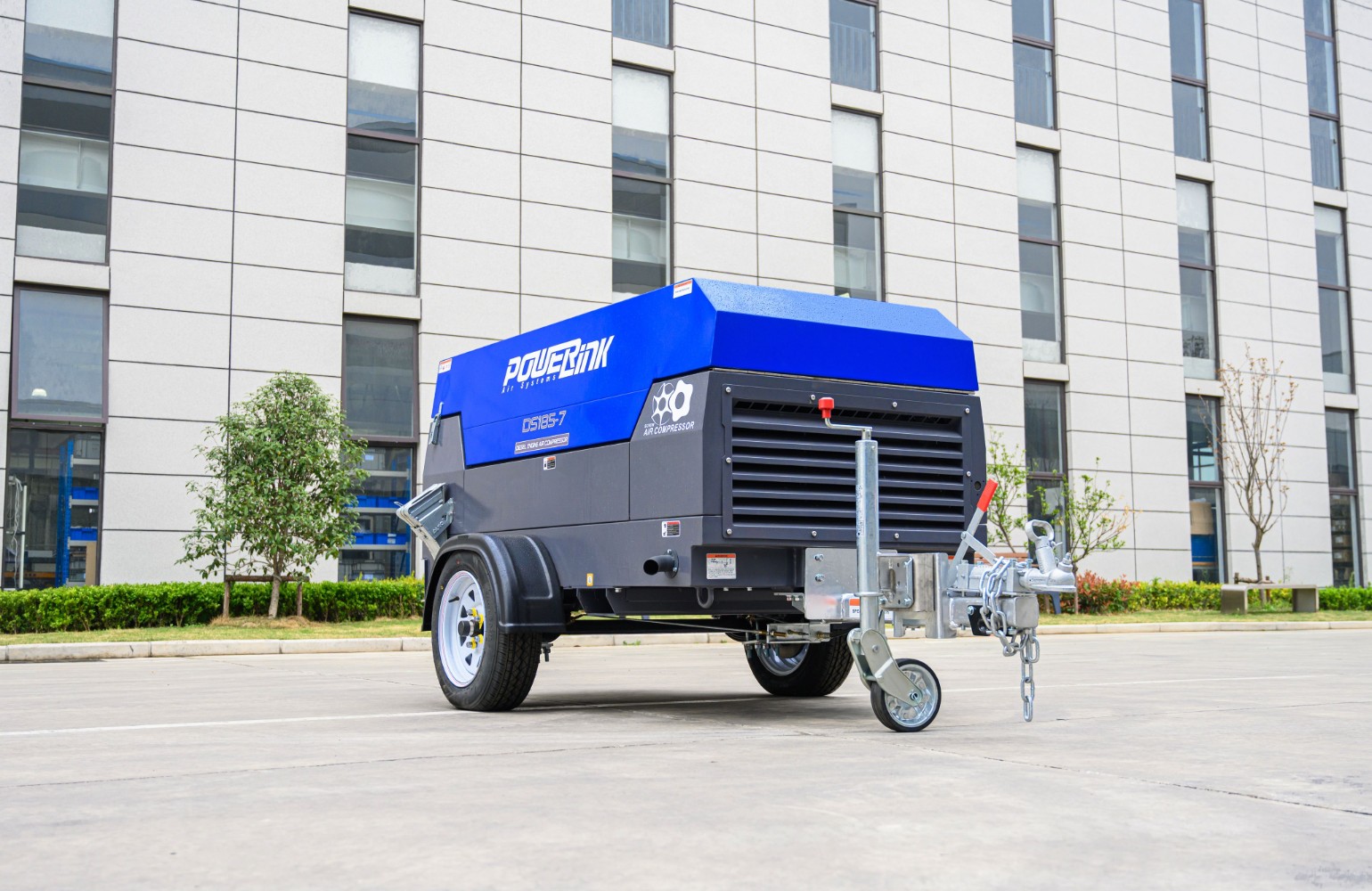

PowerLink’s diesel-powered mobile air compressor delivers high-efficiency, reliable performance in extreme conditions from -25°C to 50°C. Featuring a fuel-efficient engine and oil-injected twin-screw airend with direct drive coupling, it ensures robust, smooth operation. The 0–100% stepless capacity control optimizes air output for maximum energy savings and long-term durability.
Rental
Mining
Factory
Outdoor Constructions
Port
Ambient temperature: -25°C ~ 50°C. SECC canopy: IP54.
Efficient Diesel engine. Oil-injected double-screw rotor compressor.
PLC intelligent controller. Dual protection air filter. industrial grade Muffler. 0-100% discharge adjustment.
Four-wheel drive, foldable structure.Continuous operation > 8h
PowerLink provides tailored, high-efficiency energy solutions for sustainable power around the world.
| Speed | rpm | 3000rpm |
| Discharge pressure | bar | 7.0bar |
| Discharge flow | cfm | 123cfm |
| Power | kw | 33 |
| Dimensions | mm | 2201*1104*1007 |
| Tank | L | 75 |
| Weight | kg | 994 |
| Engine brand | / | KUBOTA |
| Structure | / | Clamshell |
| Speed | rpm | 3000rpm |
| Discharge pressure | bar | 7.0bar |
| Discharge flow | cfm | 185cfm |
| Power | kw | 33 |
| Dimensions | mm | 2201*1104*1007 |
| Tank | L | 70 |
| Weight | kg | 993 |
| Engine brand | / | KUBOTA |
| Structure | / | Clamshell |
| Speed | rpm | 2700rpm |
| Discharge pressure | bar | 7.0bar |
| Discharge flow | cfm | 199cfm |
| Power | kw | 44 |
| Dimensions | mm | 2107*1099*1004 |
| Tank | L | 80 |
| Weight | kg | 1003 |
| Engine brand | / | KUBOTA |
| Structure | / | Clamshell |
| Speed | rpm | 3600rpm |
| Discharge pressure | bar | 8.0bar |
| Discharge flow | cfm | 37cfm |
| Power | kw | 14.9 |
| Dimensions | mm | 1852*923*939 |
| Tank | L | 30 |
| Weight | kg | 697 |
| Engine brand | / | KUBOTA |
| Structure | / | Clamshell |
| Speed | rpm | 3000rpm |
| Discharge pressure | bar | 8.0bar |
| Discharge flow | cfm | 66cfm |
| Power | kw | 18.5 |
| Dimensions | mm | 1852*923*939 |
| Tank | L | 30 |
| Weight | kg | 697 |
| Engine brand | / | KUBOTA |
| Structure | / | Clamshell |
| Speed | rpm | 2600rpm |
| Discharge pressure | bar | 8.0bar |
| Discharge flow | cfm | 324cfm |
| Power | kw | 74 |
| Dimensions | mm | 2183*1104*1007 |
| Tank | L | 75 |
| Weight | kg | 908 |
| Engine brand | / | KUBOTA |
| Structure | / | Gull-wing |
| Speed | rpm | 2600rpm |
| Discharge pressure | bar | 8.0bar |
| Discharge flow | cfm | 109cfm |
| Power | kw | 30 |
| Dimensions | mm | 2195*1104*1007 |
| Tank | L | 75 |
| Weight | kg | 1036 |
| Engine brand | / | PowerLink |
| Structure | / | Clamshell |
| Speed | rpm | 2700rpm |
| Discharge pressure | bar | 7.0bar |
| Discharge flow | cfm | 198cfm |
| Power | kw | 40 |
| Dimensions | mm | 2173*1004*1007 |
| Tank | L | 75 |
| Weight | kg | 1162 |
| Engine brand | / | PowerLink |
| Structure | / | Clamshell |
| Speed | rpm | 2700rpm |
| Discharge pressure | bar | 8.0bar |
| Discharge flow | cfm | 282cfm |
| Power | kw | 55 |
| Dimensions | mm | 2560*1448*1707 |
| Tank | L | 150 |
| Weight | kg | 1565 |
| Engine brand | / | PowerLink |
| Structure | / | Gull-wing |
| Speed | rpm | 2200rpm |
| Discharge pressure | bar | 8.0bar |
| Discharge flow | cfm | 274cfm |
| Power | kw | 68 |
| Dimensions | mm | 2620*1456*1714 |
| Tank | L | 170 |
| Weight | kg | 1660 |
| Engine brand | / | PowerLink |
| Structure | / | Gull-wing |
| Speed | rpm | 2200rpm |
| Discharge pressure | bar | 8.0bar |
| Discharge flow | cfm | 424cfm |
| Power | kw | 93 |
| Dimensions | mm | 2560*1340*1570 |
| Tank | L | 240 |
| Weight | kg | 2090 |
| Engine brand | / | DECE |
| Structure | / | Gull-wing |
| Speed | rpm | 2200rpm |
| Discharge pressure | bar | 8.0bar |
| Discharge flow | cfm | 595cfm |
| Power | kw | 132 |
| Dimensions | mm | 3613*1633*1819 |
| Tank | L | 300 |
| Weight | kg | 2500 |
| Engine brand | / | DECE |
| Structure | / | Gull-wing |
| Speed | rpm | 1900rpm |
| Discharge pressure | bar | 8.0bar |
| Discharge flow | cfm | 741cfm |
| Power | kw | 176 |
| Dimensions | mm | 3900*1850*1400 |
| Tank | L | 450 |
| Weight | kg | 3550 |
| Engine brand | / | DECE |
| Structure | / | Gull-wing |
| Speed | rpm | 1900rpm |
| Discharge pressure | bar | 8.0bar |
| Discharge flow | cfm | 844cfm |
| Power | kw | 195 |
| Dimensions | mm | 3900*1850*1400 |
| Tank | L | 450 |
| Weight | kg | 3205 |
| Engine brand | / | DECE |
| Structure | / | Gull-wing |
| Speed | rpm | 1900rpm |
| Discharge pressure | bar | 8.0bar |
| Discharge flow | cfm | 1183cfm |
| Power | kw | 250 |
| Dimensions | mm | 4697*2150*2462 |
| Tank | L | 780 |
| Weight | kg | 5231 |
| Engine brand | / | DECE |
| Structure | / | Gull-wing |
| Speed | rpm | 2000rpm |
| Discharge pressure | bar | 8.0bar |
| Discharge flow | cfm | 1243cfm |
| Power | kw | 256 |
| Dimensions | mm | 4697*2150*2462 |
| Tank | L | 780 |
| Weight | kg | 5231 |
| Engine brand | / | DECE |
| Structure | / | Gull-wing |
