PHE Series

The PHE Series is a mobile hybrid generator battery system that integrates municipal grid power, photovoltaic energy, and diesel generation into a unified platform. Engineered for energy efficiency and cost-effectiveness, this versatile system supports an output range of 125 to 500 kWe and a total battery capacity between 237 and 1040 kWh. Ideal for applications requiring fuel optimization and backup resilience, the PHE Series hybrid generator battery system enables intelligent energy dispatch across multiple sources, ensuring stable operation even in remote or grid-unstable environments.

PHE Series
PHE Series
PHE Series

hybrid generator battery system

hybrid generator battery system

Product Features

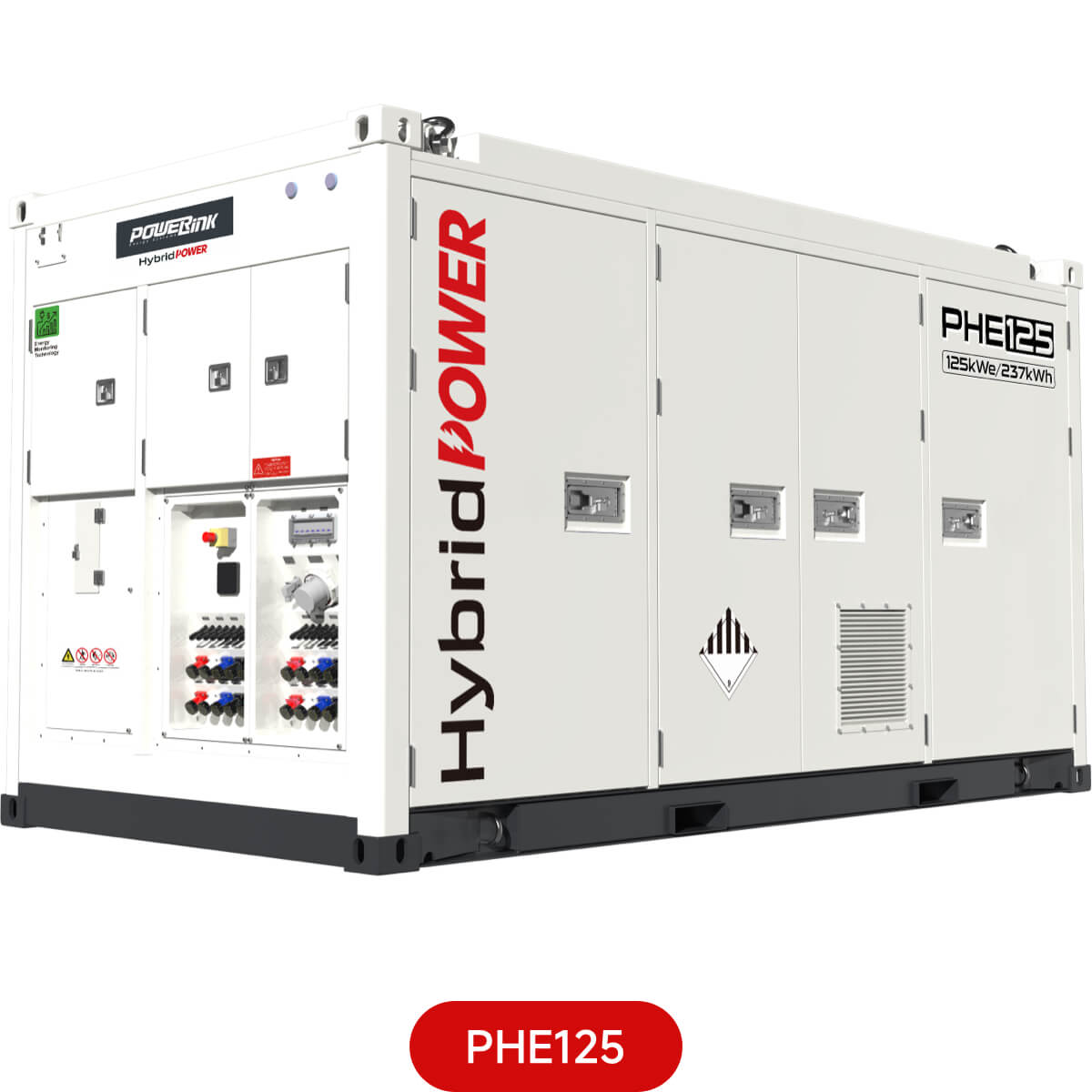

PHE125

PHE125 Specification

System Output Power kWe 125
Output VOLTAGE V 400/415
Battery Vapacity kWh 237
Gen Input kW 45
PV/Wind Input kWp 50
40′ Loading qty 4
Noise Level(hybrid mode) dBA@7m 60
Noise Level(battery mode) dBA@7m 55
Dry Weight kg 4000
Dimensions mm 2900*1300*1600

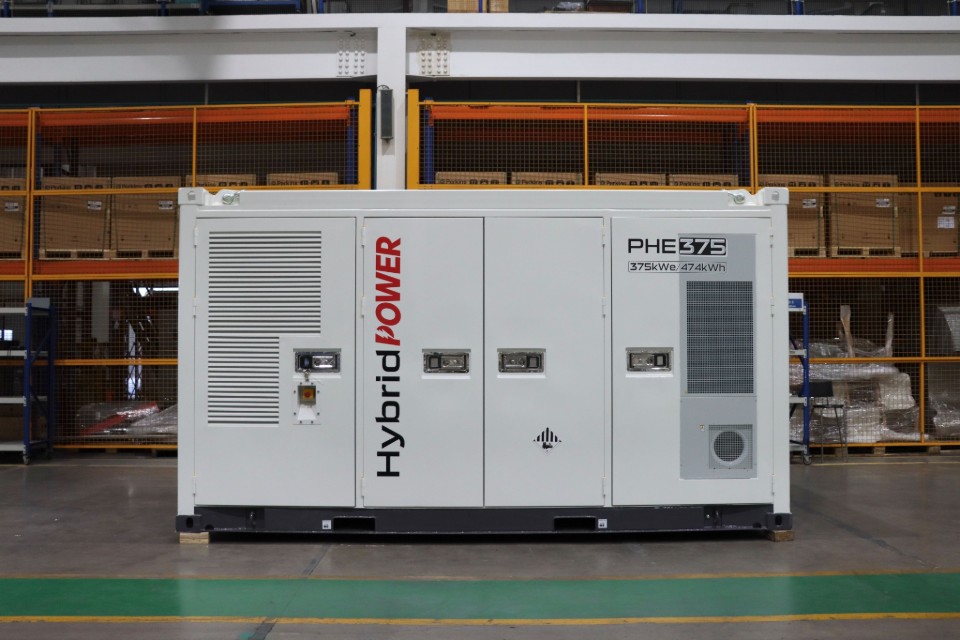

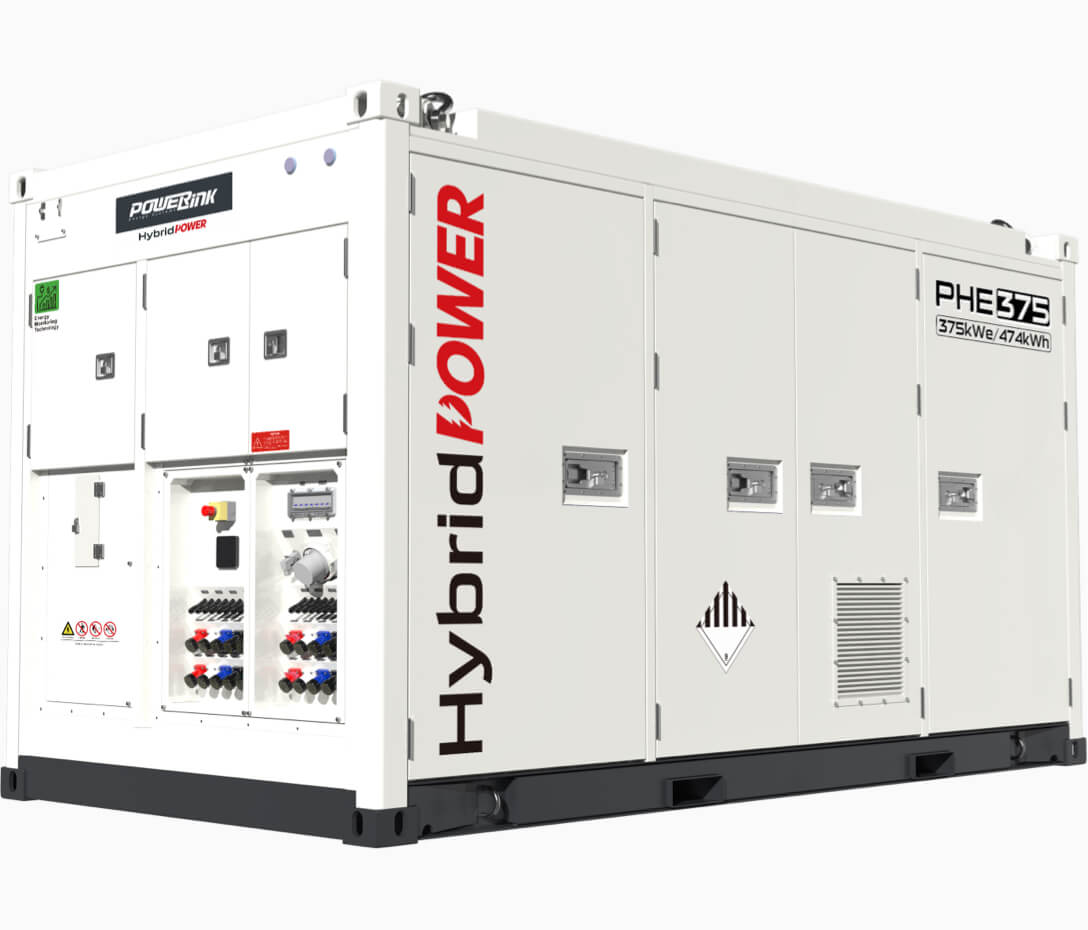

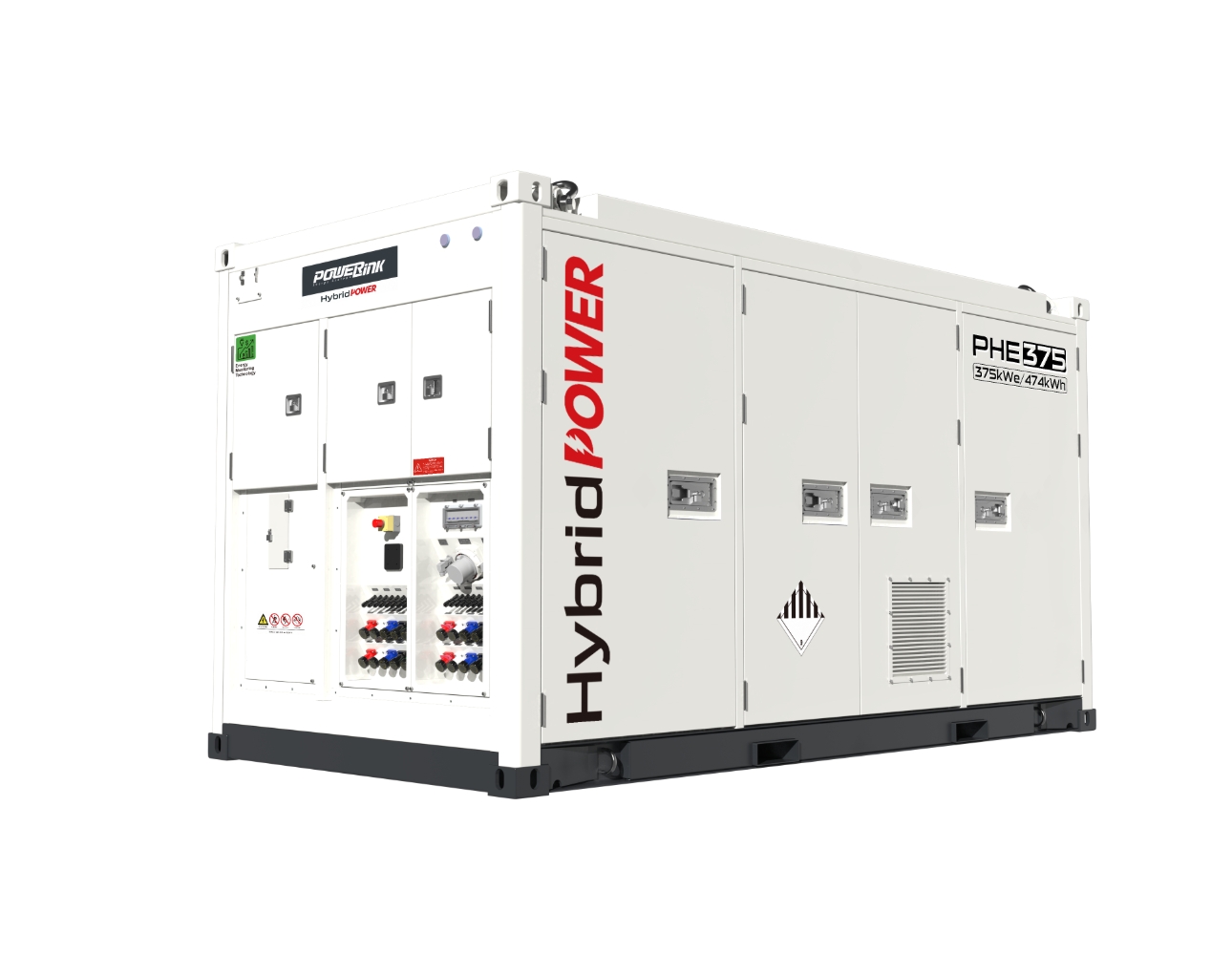

PHE375

PHE375 Specification

System Output Power kWe 375
Output VOLTAGE V 400/415
Battery Vapacity kWh 474
Gen Input kW 45
PV/Wind Input kWp 100
40′ Loading qty 3
Noise Level(hybrid mode) dBA@7m 60
Noise Level(battery mode) dBA@7m 55
Dry Weight kg 7500
Dimensions mm 3950*2100*2450
PHE500

PHE500 Specification

System Output Power kWe 500
Output VOLTAGE V 400/415
Battery Vapacity kWh 1040
Gen Input kW 80
PV/Wind Input kWp 100
40′ Loading qty 2
Noise Level(hybrid mode) dBA@7m 65
Noise Level(battery mode) dBA@7m 55
Dry Weight kg 13000
Dimensions mm 5300*2100*2450

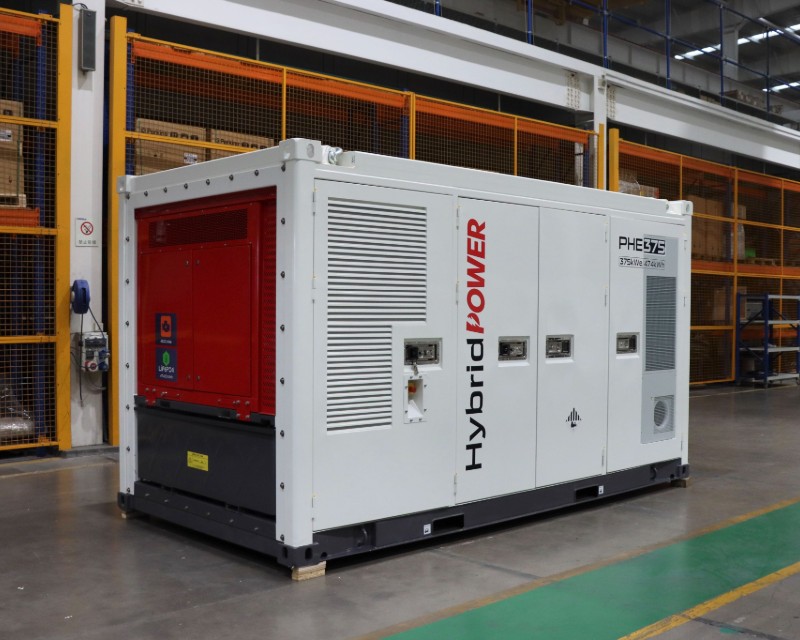

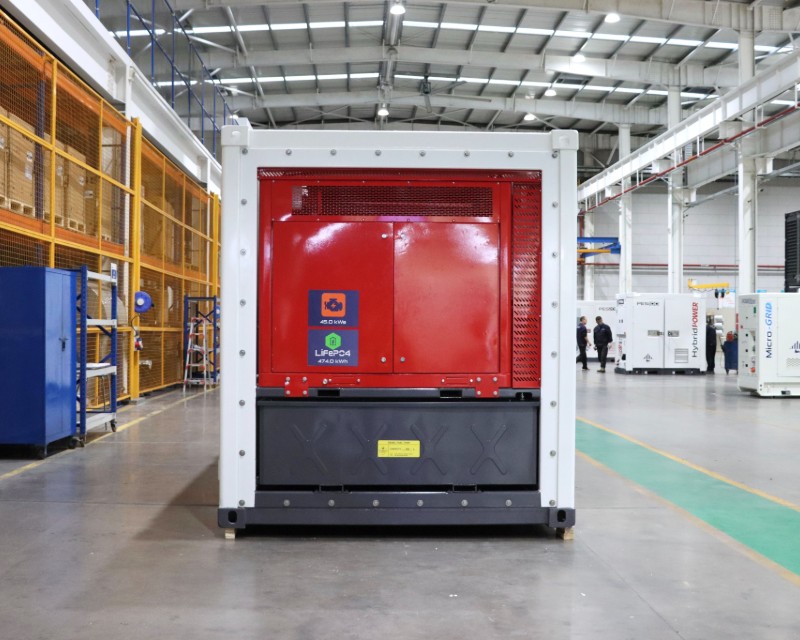

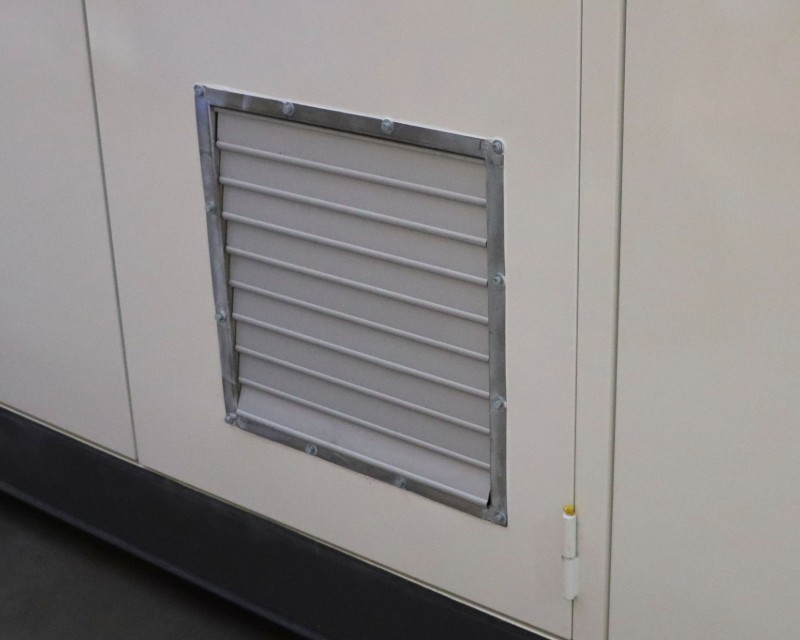

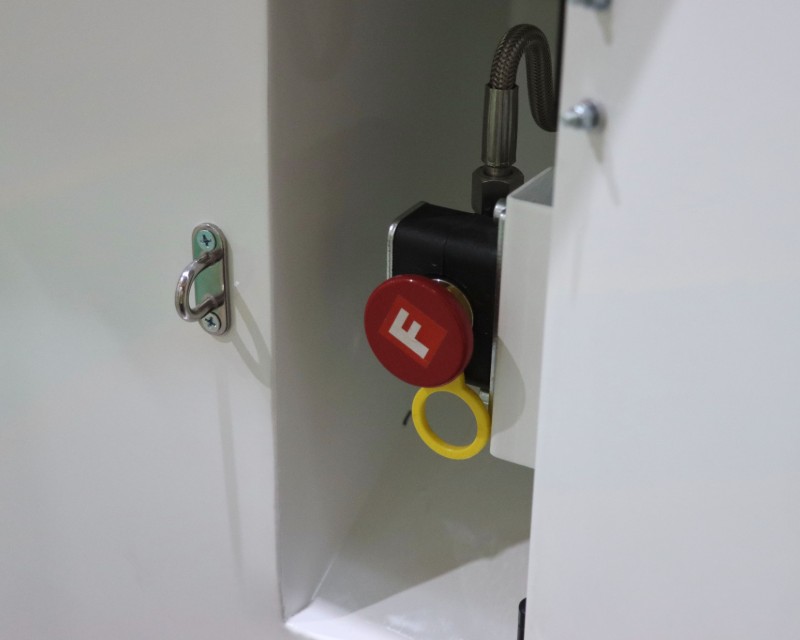

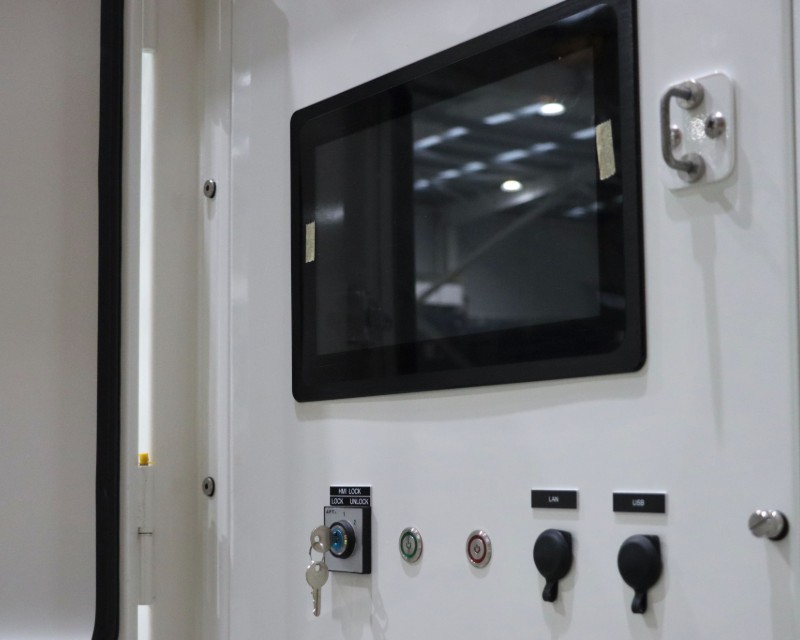

Product Views

PHE Hybrid Generator Battery System

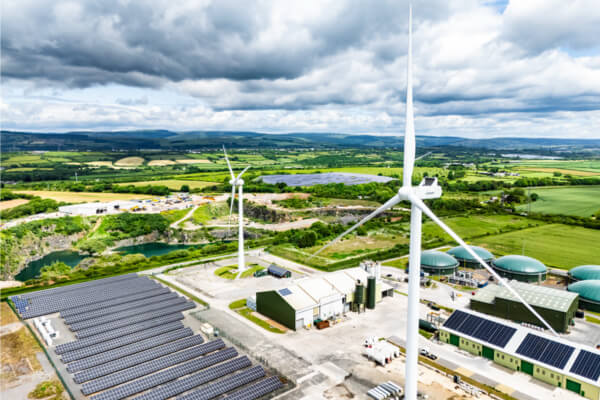

Range of Applications

PHE products, as a reliable Hybrid Generator Battery System, are widely applicable across scenarios that demand stable, flexible, and clean energy support. Designed to ensure continuity and reliability of electricity consumption, the system excels in critical applications such as:

  • Peak regulation
  • Uninterruptible power supply
  • Electric vehicle charging stations
  • On / off grid operation
  • Change power station

All products provided by our company are energy products welcome to contact us
