125 kWe / 237kWh
PHE 125

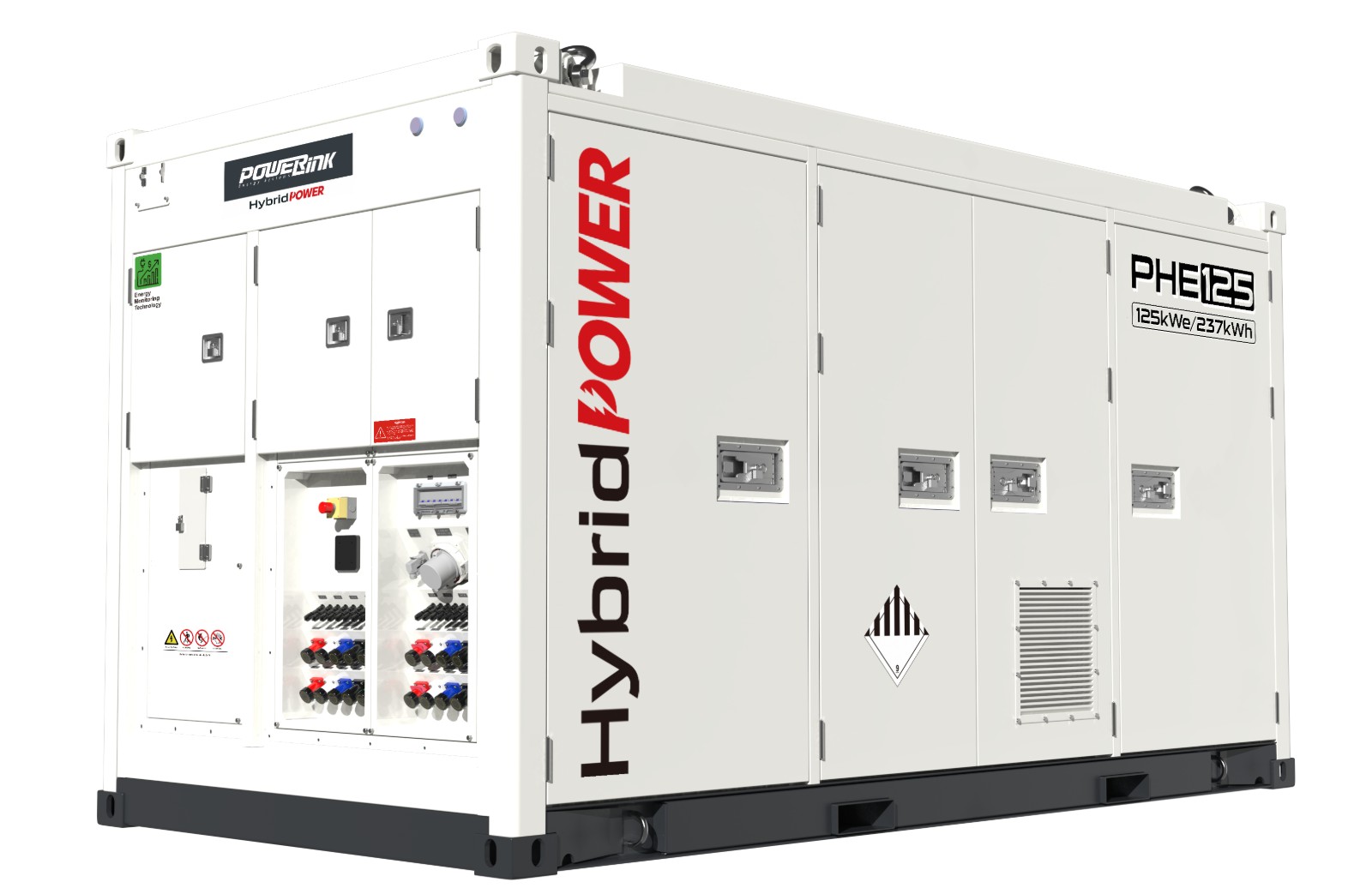

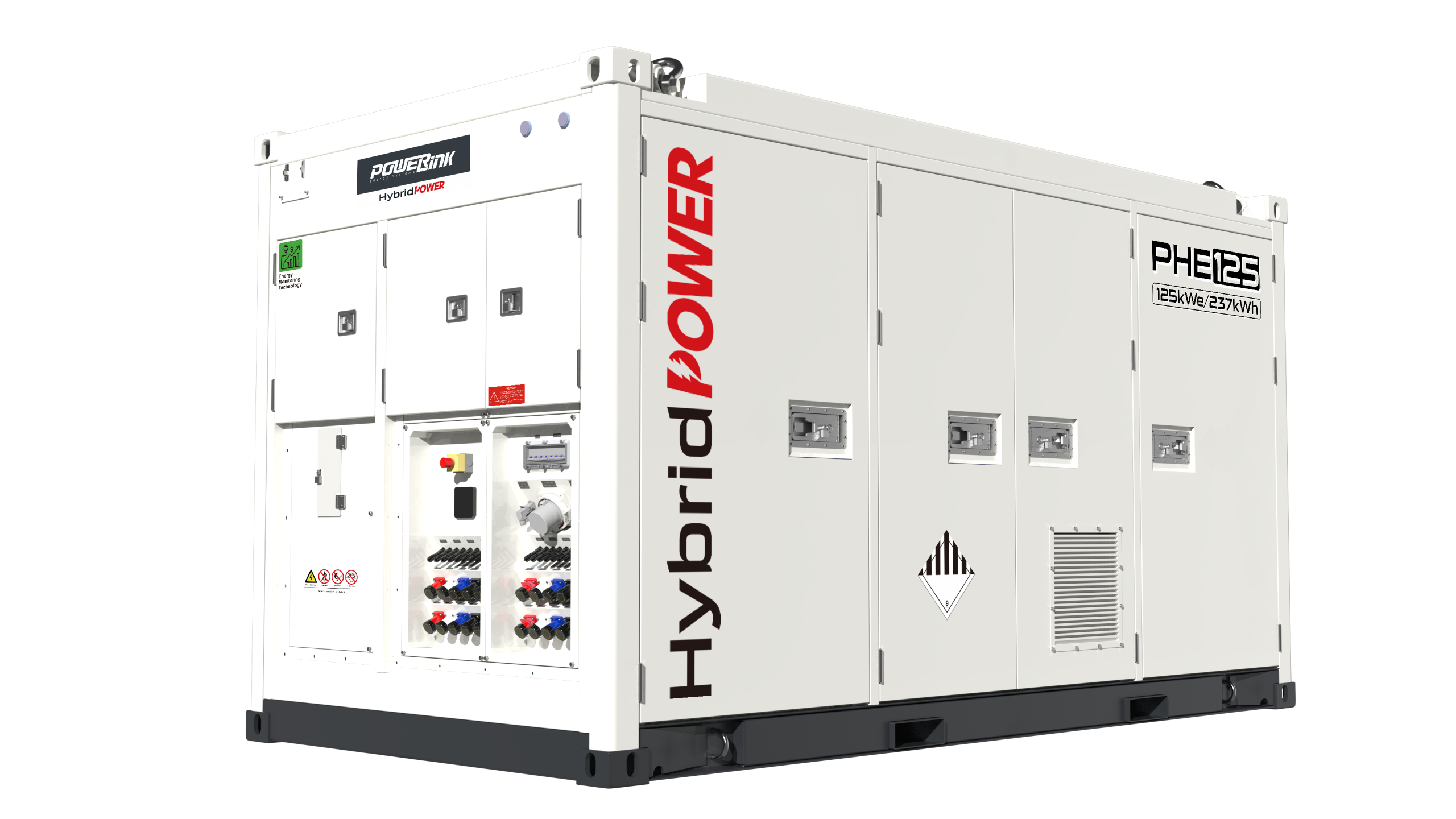

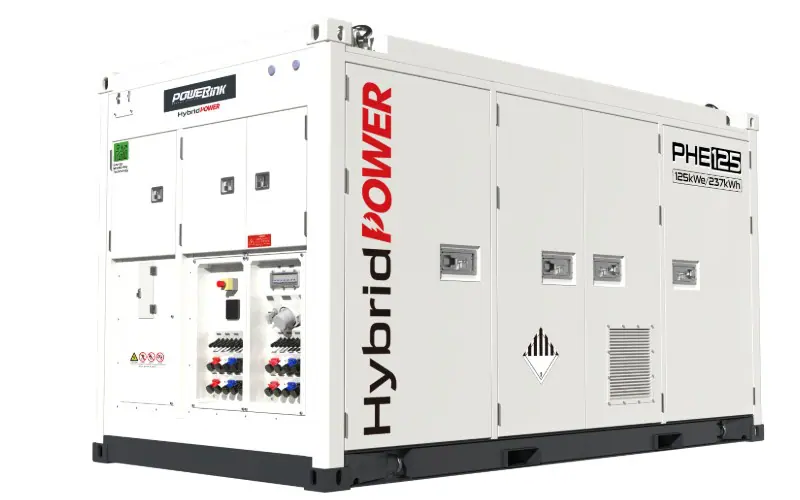

The PowerLink PHE125 is a 125kW diesel battery hybrid system with 237kWh storage. It delivers a tailored portable off-grid hybrid energy solution that caters to diverse fields such as equipment leasing, construction projects, port operations, mining activities, large-scale events, emergency response missions, and marine power supply services.
Modular structure design
Genuine spare parts
Plug-and-Play Convenience
Rugged & Reliable Performance
Features
Intelligent EMS
Real-time monitoring/scheduling for BMS/PCS, operable via local HMI or remote APP/Web
Hybrid Energy System
With 125kWe output, 237 kWh battery capacity, it integrates battery, diesel and PV
Battery Pack-level fire protection
Usewater-based extinguishing agent
Ask an Expert
PowerLink provides tailored, high-efficiency energy solutions for sustainable power around the world.
86-2157-858-099 ext 8820
info@powerlinkenergy.comSpecification
| System Output Power | kWe | 125 |
| Output VOLTAGE | AC V | 380/400/415 |
| Battery Capacity | kWh | 237 |
| Gen Input | kW | 45 |
| PV Input | kWp | 1*50 |
| 40′ Loading | qty | 4 |
| Noise Level(hybrid mode) | dBA@7m | 60 |
| Noise Level(battery mode) | dBA@7m | 55 |
| Dry Weight | kg | 4000 |
| Dimensions | mm | 2900*1300*1600 |
Download
PHE 125 Specification Datasheet
PHE125-Specification
Register & Download
PHE 125 Parts Manual
PHE 125 Parts-Manual
Register & Download
PHE 125 Warranty Manual
BESS Warranty Manual-5 Years-20250924
Register & Download
PHE 125 Brochure Manual
BESS Brochure Manual-5 Years-20250924
Register & Download
Applications
- Leasing
- Mining
- Port
- Construction
- Events
Leasing
Leasing Application
Mining
Mining Application
Port
Port Application
Construction
Construction Application
Events
Events ApplicationCase & Solution
RHE Series: Energy Storage to Cut Residential Costs
- Equipment: 1*RHE24S3 Energy Storage Product
- Electric output mode: Reduced Energy Costs & Carbon Reduction
- Field : villas, farms, communities, and small businesses
- Battery capacity : 40.96 KWh
Accessories
Related Products
ALT2000-MDG
Standard equipment fails where the ALT2000-MDG thrives. Engineered specifically for the world’s harshest extraction and heavy construction sites, the ALT2000-MDG is a rugged, true mine-spec mobile lighting tower.

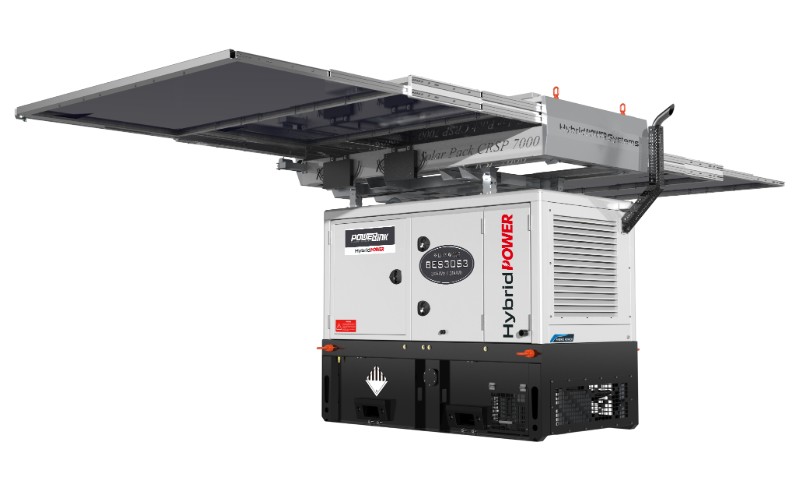

BES30S3
30 kWe/30.7 kWh BES 30S3 The BES30S3 is a compact Off-Grid Power Station for remote homes and islands. Features 30kW output, 30.7kWh storage, and seamless solar integration. It combines energy storage batteries, PV panels, and diesel generators into a unified unit, enabling a complementary power supply that integrates wind, solar, diesel, and energy storage resources. … Continue reading PHE125
FS2000-HKDC
For long-term projects demanding strict environmental compliance and radically reduced operating costs, traditional diesel units are obsolete. The FS2000-HKDC is a premium solar hybrid light tower engineered for permanent or semi-permanent off-grid deployment.
PES100S
100 kWe PES 100S PowerLink PES 100S—your portable hybrid energy solution designed for low OPEX and high returns. Engineered to thrive in island power, on-site operations, construction sites, mining, and energy rental scenarios, it takes battery power as the core, complemented by PV, diesel genset, and grid inputs. Ideal for uneven load output, it cuts … Continue reading PHE125
FAQs
What are the output power and battery capacity specifications of the PHE125 energy storage?
Output power of 125 KWe, battery capacity of 237 KWh
What power input sources does the PHE125 support, and what operation modes are available for its built-in diesel generator?
It supports solar power generation and diesel power generation inputs. It comes with a built-in 45 KW diesel generator, which can be used in hybrid mode with the battery or operated independently.
What types of systems and application scenarios is the PHE125 hybrid energy unit designed for?
This unit is suitable for mobile hybrid energy systems and energy-saving system products in off-grid application scenarios.
