RHE 18

The PowerLink microgrid portfolio features five distinct energy storage product series. These include the RHE, RHES, CHE, CHES, and IHE models. Each series is engineered to meet specific capacity and operational requirements.

RHE and RHES Series

These all in one residential energy storage systems deliver an output range of 12 to 100 kWe. They serve as compact and independent power solutions designed for homes, farms, mines, and remote island applications. They operate seamlessly in both on grid and off grid environments to maximize energy savings.

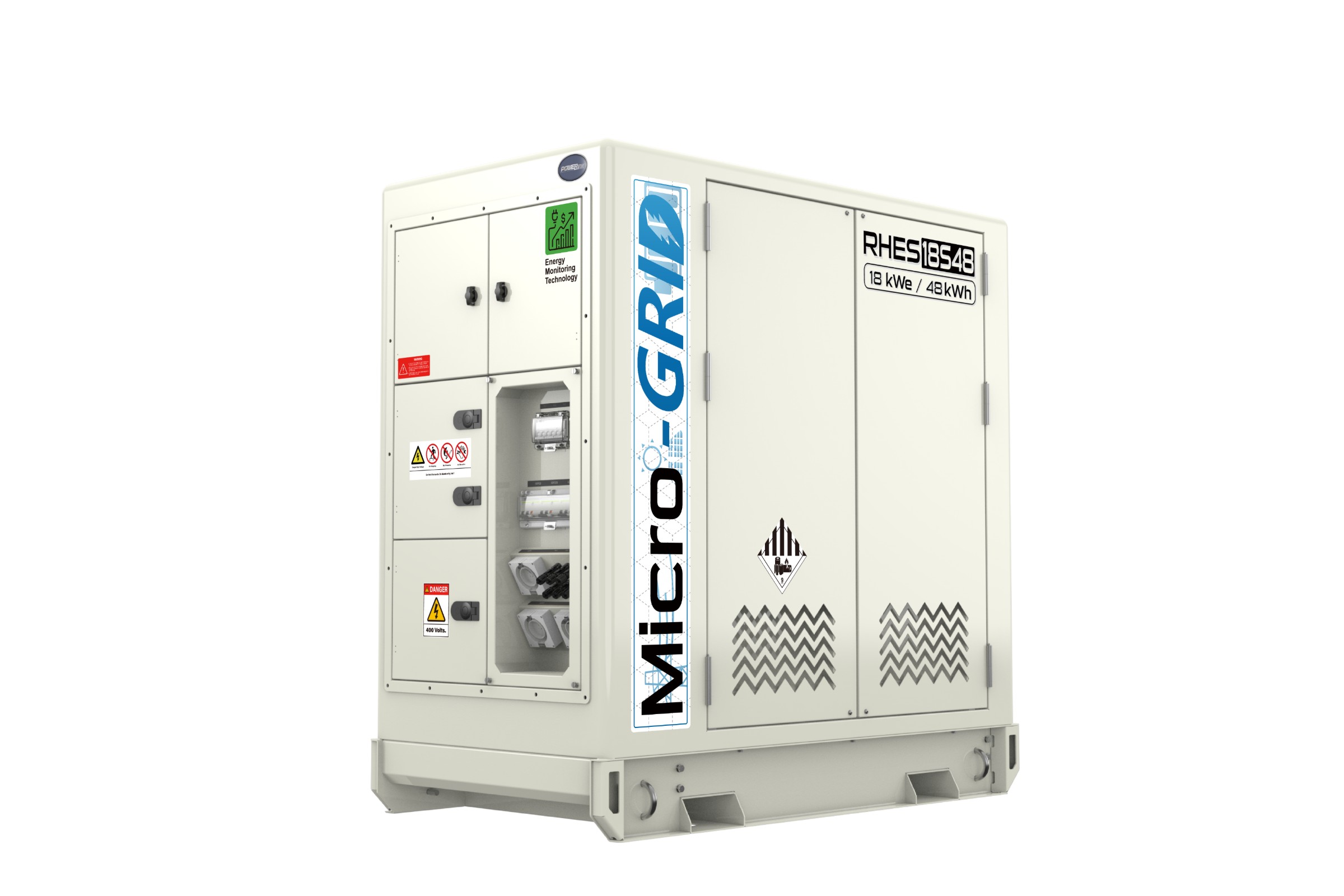

RHES Cost Effective Design

The RHES model serves as a highly cost effective alternative to the standard RHE unit. It utilizes standard 314Ah battery cells with a tailored battery capacity. To maintain a highly compact physical footprint, this version omits the fire suppression system and separate control cabinet. All electrical components are fully integrated and controlled directly inside the main unit.

CHE and CHES Series

These commercial microgrid systems provide a robust output ranging from 30 to 1000 kWe. They are versatile battery energy storage solutions built for demanding applications such as rental fleets, construction sites, port operations, and marine power. Users benefit from ultra high energy density and flexible configurations that deliver reliable and eco friendly power.

IHE Series

This industrial hybrid energy system is available in powerful 1250 kWe and 2500 kWe models. It operates as a grid connected battery energy storage system optimized for large scale applications like solar power plants, wind farms, and grid frequency regulation. The highly integrated design delivers ultra high energy density to ensure industrial users receive a highly efficient and low carbon energy solution.

This residential microgrid system operates in parallel with the power grid, charging/discharging according to a time-of-use schedule, reducing electricity costs for users by approximately 70%.

• Power output: 12-100kWh; battery capacity: 30.72-125kWh; supports 1C charge/discharge rate.
• Equipped with 4 photovoltaic input interfaces, utilizing green energy with a power output of 18-153.6kWp; wind power can also be connected.
• EMS intelligent management system, providing real-time monitoring and scheduling of the BMS and PCS systems; operable via local HMI or remote APP & Web.
• IP54 protection rating, suitable for harsh operating environments.
• Power output panel equipped with fast-connect sockets and copper busbars for plug-and-play operation.
