Home > Products > RHE24 Products

24kVA/24kW

RHE 24

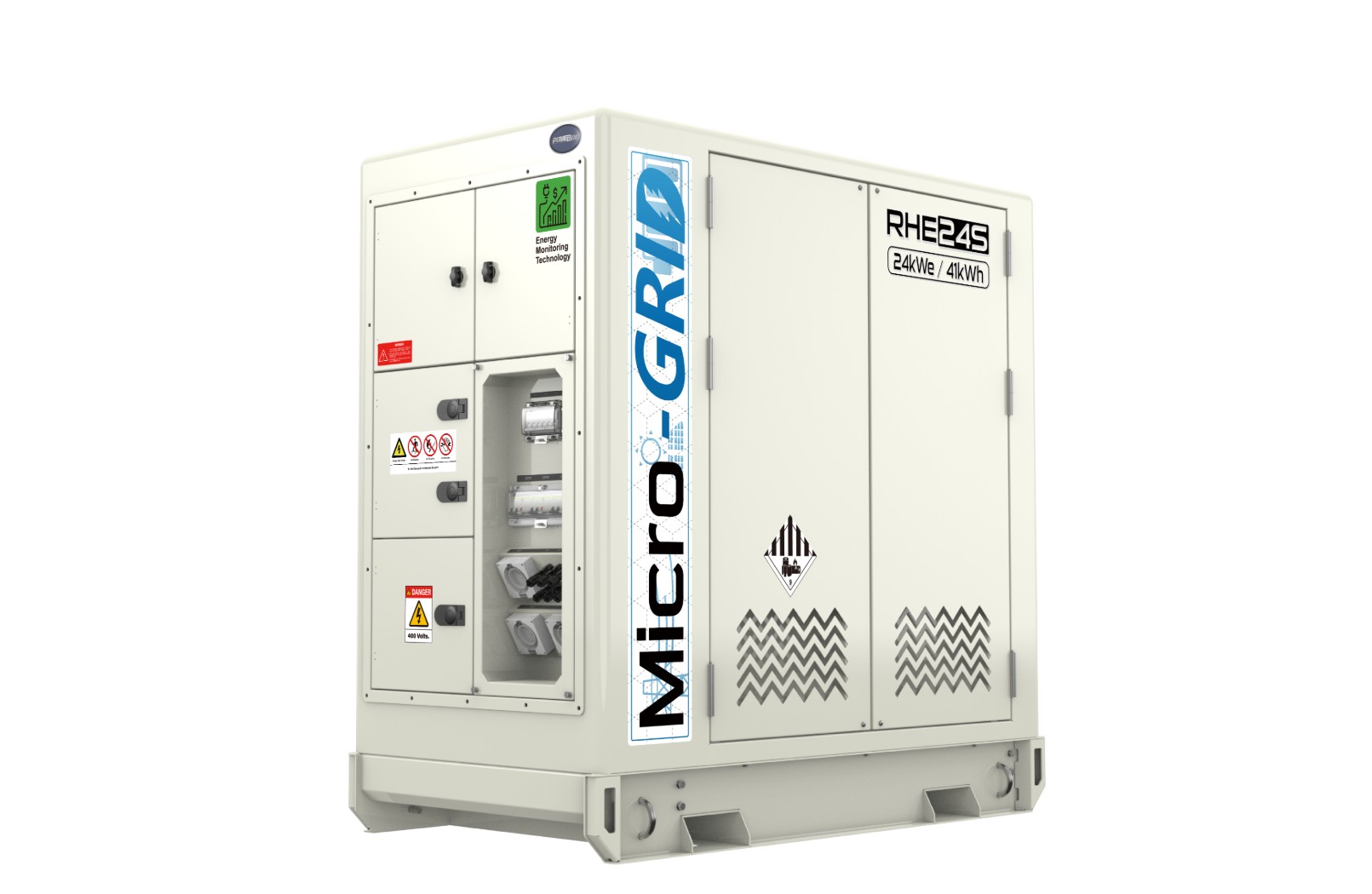

The RHE24 is a robust, all-in-one hybrid microgrid system designed for small businesses, farms, and off-grid sites. It delivers 24kVA/24kW  output at , powered by a 51.2V battery system with a standard 41kWh capacity and 18+18kW MPPT solar input. Supporting grid‑tie, off-grid, UPS, and peak‑shaving modes, it ensures stable, clean power while cutting energy costs. Built with natural cooling, IP54 protection, and plug‑and‑play wiring, it is easy to install and maintain. Certified to IEC, EMC, and global grid codes, the RHE24 balances compact size and strong performance for reliable 24/7 backup and self‑sufficient power supply.

Inquiry Now
RHE24 Products
RHE24 Products
Commited to Service

Quick Start
Fast startup with strong load surge

Commited to Service

Portable
Easy to transport and install.

Commited to Service

User-Friendly
Plug-and-play operation.

Commited to Service

Reliable
Performs well in harsh conditions.

Features

24kVA/24kW  output, compact all-in-one design



41kWh standard capacity, 51.2V battery system



18+18kW MPPT solar input, PV+battery+grid hybrid operation



UPS & off-grid backup, IEC/EMC/grid certified

Ask an Expert

PowerLink provides tailored, high-efficiency energy solutions for sustainable power around the world.

86-2157-858-099 ext 8820 [email protected]

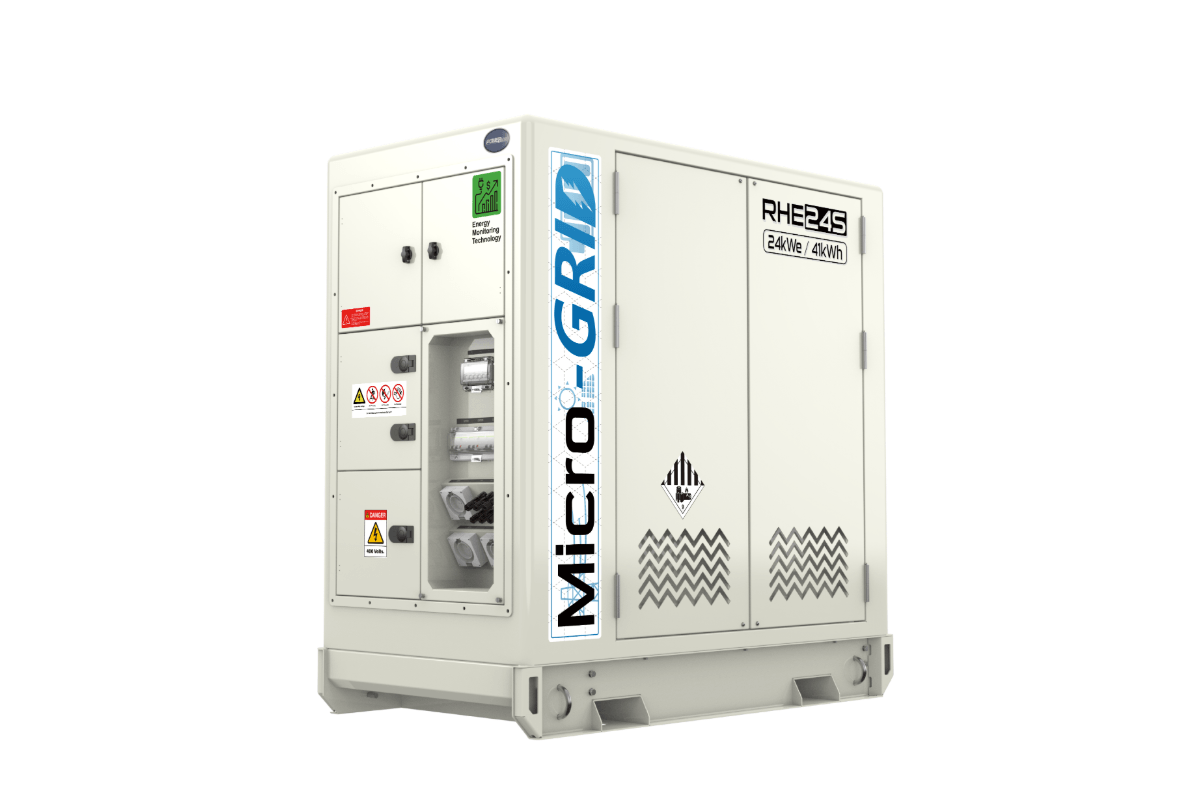

RHE Series Specification

RHE24S
RHE24S3
RHE24S

RHE24S

Continuous output power 24 kVA / 24 kW \ \
Phase 1 \ \
Voltage 220V 230V 240V
Battery Capacity 40.96 kWh \ \
PV Input Power 18+18 kWp \ \

RHE24S-Specification

Register & Download

RHE24S-Warranty Manual

Register & Download

RHE24S-Brochure Manual

Register & Download

RHE24S-Parts Manual

Register & Download
RHE24S3

RHE24S3

Continuous output power 24 kVA / 24 kW \ \
Phase 3 \ \
Voltage 380V 400V 415V
Battery Capacity 40.96 kWh \ \
PV Input Power 18+18 kWp \ \

RHE24S3-Specification

Register & Download

RHE24S3-Warranty Manual

Register & Download

RHE24S3-Brochure Manual

Register & Download

RHE24S3-Parts Manual

Register & Download

Related Products

RG Series

RG Series

The RG series rental diesel generator set is designed specifically for the rental market, providing a reliable mobile energy solution. Equipped with a high-quality international brand engine, it ensures dependable and stable operation, catering to diverse customer needs.

RG Series Free Quote
EB Series

EB Series

The EB series diesel genset is a reliable, clean, fuel-efficient, and cost-effective choice of power products...

EB Series Free Quote
QSV Series

QSV Series

The QSV range of diesel generators, powered by PowerLink, Perkins, Kubota, and Cummins engines, provides 10 kVA to 2500 kVA for reliable and efficient power.

QSV Series Free Quote
RK Series

RK Series

The RK range of diesel generators, powered by Kubota engines, provides 7kVA to 45kVA for reliable and efficient power.

RK Series Free Quote

FAQs

What application scenarios is the RHES series energy storage system suitable for?

The RHES series is designed for on-grid and off-grid microgrid systems, ideal for residential or small commercial applications requiring high reliability.

It supports flexible energy input combinations: Battery (Batt) + PV + Grid or Diesel Generator (DG).

Main functions include:

  • Peak Shaving & Valley Filling: Reduce electricity expenses.
  • PV Energy Storage: Improve solar self-consumption rate.
  • UPS / Off-grid Power Supply: Provides seamless, uninterrupted power during grid outages.
The system supports both single-phase and three-phase four-wire (3P/4W) output, complying with grid standards in different regions (e.g., Australian AS4777, UK G99, European EN50549-1).

What cooling method does the RHES series use? What is its noise level?

Unlike large commercial liquid-cooled systems, the entire RHES series (including RHES12S, RHES24S and their three-phase versions) uses natural cooling, with no additional air conditioning or liquid cooling units required. This simplifies system structure and reduces maintenance costs.

All models operate at only 50 dBA at a 7-meter distance, extremely quiet and perfect for noise-sensitive residential or indoor installations.
