30kVA/30kW

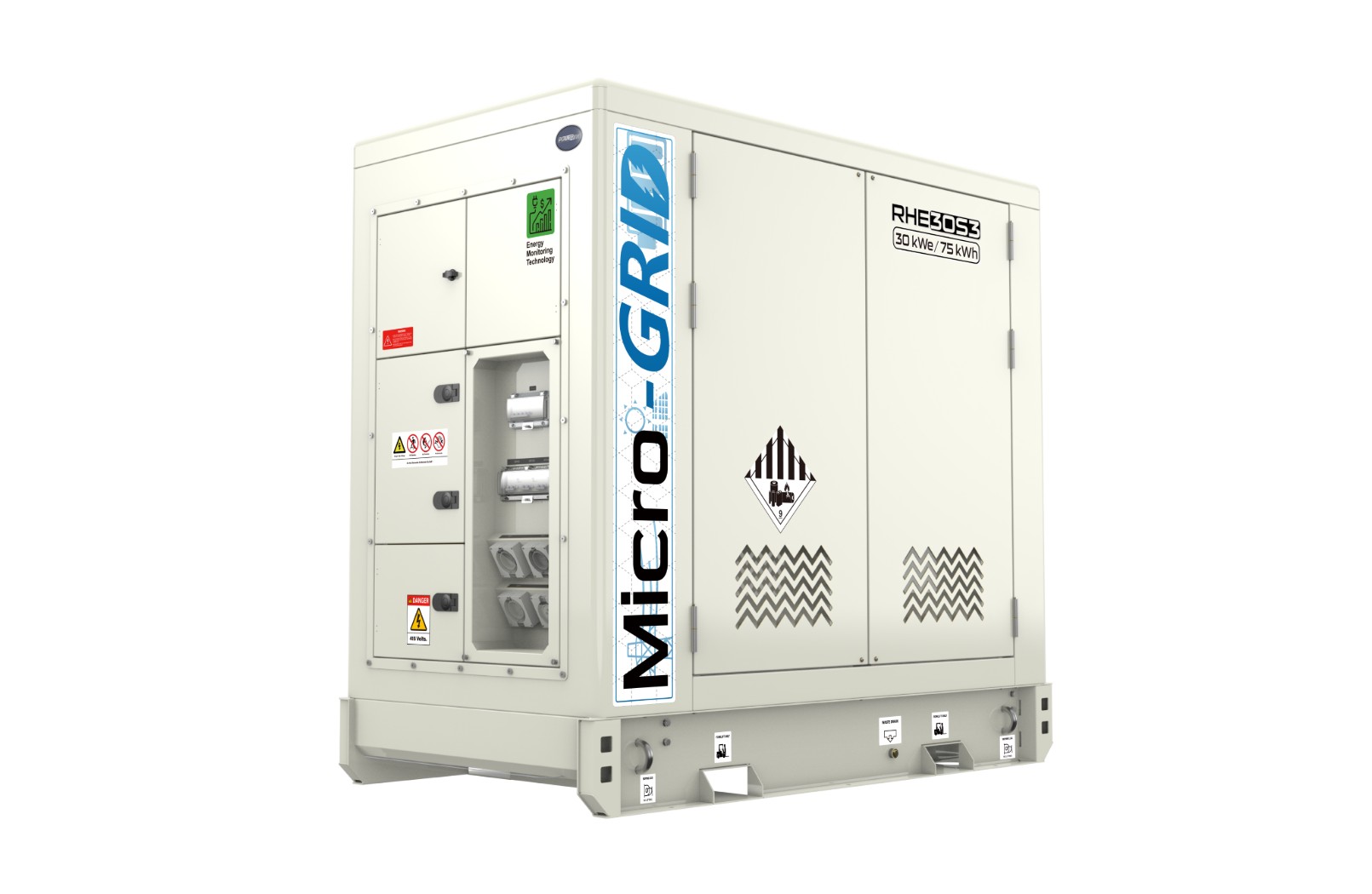

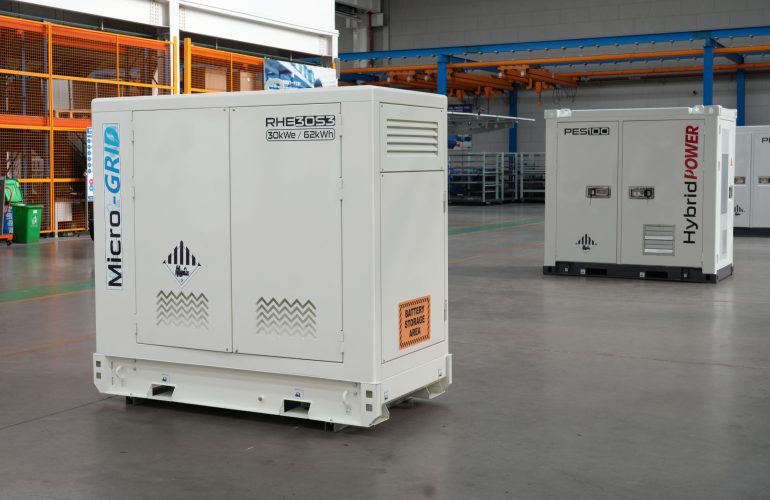

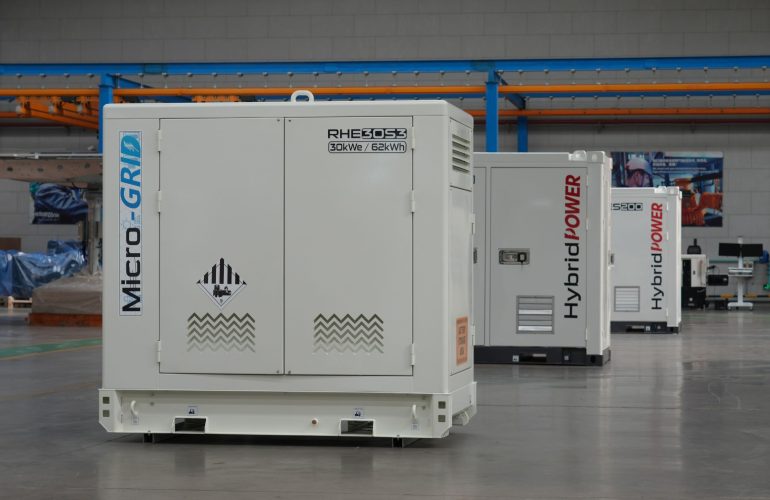

RHE 30

The RHE30 is a high-performance residential micro-grid with 30kVA/30kW output and 62–75kWh capacity . Supporting grid-tie, off-grid, UPS, and peak-shifting functions, it delivers stable power for shops, offices, and farms. Equipped with optional air cooling and IP54 rugged construction, it performs reliably in tough conditions. Certified to AS4777, G99, and EN50549, it combines smart EMS monitoring, expandable battery design, and strong efficiency for sustainable, cost-saving energy solutions.

Inquiry Now

Quick Start
Fast startup with strong load surge

Portable
Easy to transport and install.

User-Friendly
Plug-and-play operation.

Reliable
Performs well in harsh conditions.

Features
Parameter
Download
Application
FAQs

Features

30kVA/30kW three‑phase (3P/4W) output

Dual 19kW MPPT, peak shaving & UPS mode

AS4777 / G99 / EN50549 approved, optional air cooling

Ask an Expert

PowerLink provides tailored, high-efficiency energy solutions for sustainable power around the world.

86-2157-858-099 ext 8820

[email protected]

RHE Series Specification

RHE30S3

Continuous output power	30 kVA / 30 kW	\	\
Phase	3	\	\
Voltage	380V	400V	415V
Battery Capacity	75 kWh	\	\
PV Input Power	19+19 kWp	\	\

RHE30S3-Specification

RHE30S3-Warranty Manual

RHE30S3-Brochure Manual

RHE30S3-Parts Manual

Related Products

RG Series

The RG series rental diesel generator set is designed specifically for the rental market, providing a reliable mobile energy solution. Equipped with a high-quality international brand engine, it ensures dependable and stable operation, catering to diverse customer needs.

RG Series Free Quote

EB Series

The EB series diesel genset is a reliable, clean, fuel-efficient, and cost-effective choice of power products...

EB Series Free Quote

QSV Series

The QSV range of diesel generators, powered by PowerLink, Perkins, Kubota, and Cummins engines, provides 10 kVA to 2500 kVA for reliable and efficient power.

QSV Series Free Quote

RK Series

The RK range of diesel generators, powered by Kubota engines, provides 7kVA to 45kVA for reliable and efficient power.

RK Series Free Quote

FAQs

What cooling method does the RHES series use? What is its noise level?

Unlike large commercial liquid-cooled systems, the entire RHES series (including RHES12S, RHES24S and their three-phase versions) uses natural cooling, with no additional air conditioning or liquid cooling units required. This simplifies system structure and reduces maintenance costs.

All models operate at only 50 dBA at a 7-meter distance, extremely quiet and perfect for noise-sensitive residential or indoor installations.

What are the characteristics of the RHE series energy storage products?

This residential microgrid system operates in parallel with the power grid, charging/discharging according to a time-of-use schedule, reducing electricity costs for users by approximately 70%.

Power output: 12-100kWh; battery capacity: 30.72-125kWh; supports 1C charge/discharge rate.
Equipped with 4 photovoltaic input interfaces, utilizing green energy with a power output of 18-153.6kWp; wind power can also be connected.
EMS intelligent management system, providing real-time monitoring and scheduling of the BMS and PCS systems; operable via local HMI or remote APP & Web.
IP54 protection rating, suitable for harsh operating environments.
Power output panel equipped with fast-connect sockets and copper busbars for plug-and-play operation.
