Home > Products > Solar Pack-PSP

6~96 kWp

Portable Solar Packs

Compatible with grids, diesel gensets , PowerLink hybrid energy storage systems and PowerLink Micro-gird systems, the PSP line supports unlimited modular parallel expansion to match fluctuating heavy industrial loads. Engineered for harsh remote environments, these plug-and-play solar packs cut long-term fuel and maintenance expenditure, serving as a flexible, eco-friendly temporary power solution for industrial projects and PV station energy supplementation.

Once delivered to mining zones, construction yards or field exploration sites, the integrated array unfolds in minutes for instant power generation with zero civil foundation work.

Inquiry Now

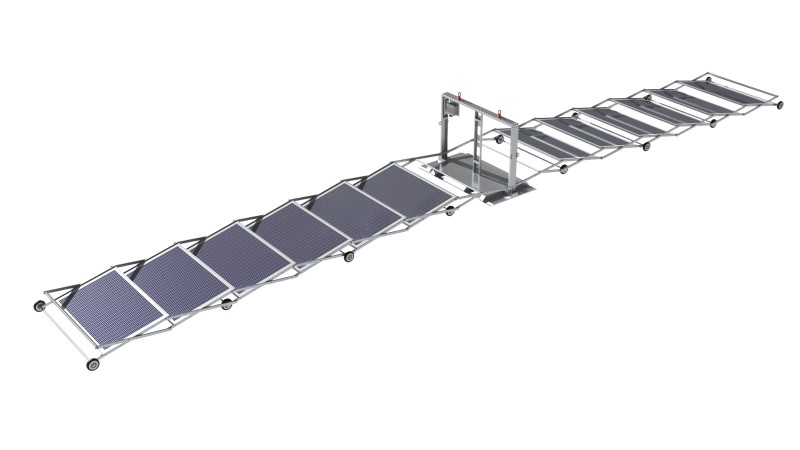

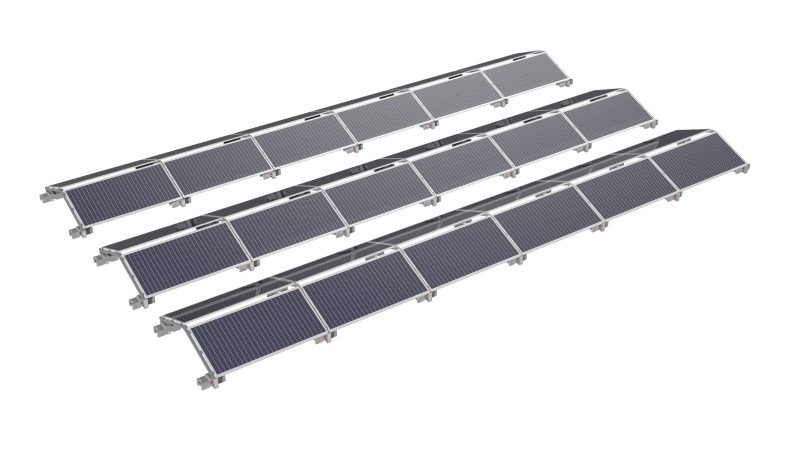

Solar Pack-PSP
Solar Pack-PSP
Commited to Service


Compact Design

Commited to Service


Flexible and Portable

Commited to Service


User friendly

Commited to Service


Easy Installation

Features

24/7 High Efficiency

Maintains high power generation efficiency around the clock to maximize energy output at all times.

High Temperature Resistant

Features outstanding heat resistance with minor power attenuation even under high-temperature working conditions.

Anti-shading

Performs well against shadow occlusion, keeps generating power when partially shaded.

Anti-dust

Effectively reduces dust accumulation to stabilize power output,  cut maintenance frequency.

Ask an Expert

PowerLink provides tailored, high-efficiency energy solutions for sustainable power around the world.

86-2157-858-099 ext 8820 [email protected]

Portbale Solar Pack Parameter

PSP6000E
PSP7800F
PSP20KE
PSP100KE
PSP6000E

PSP6000E

Basic information Transport Parameters
Product Model PSP6000M Total weight 860 kg
Folded dimensions 2200×1200×1500 mm
Output power 6kWp (L×W×H）
Daily power generation 36 kWp
Calculate based on 6h/day		 Unfolded dimensions 17320×1200×1500 mm
Max operating voltage 451VDC (L×W×H）
Number of solar panels 12 40’ Loading 10

PSP6000E-E Specification

Register & Download

PSP6000E-E Warranty

Register & Download

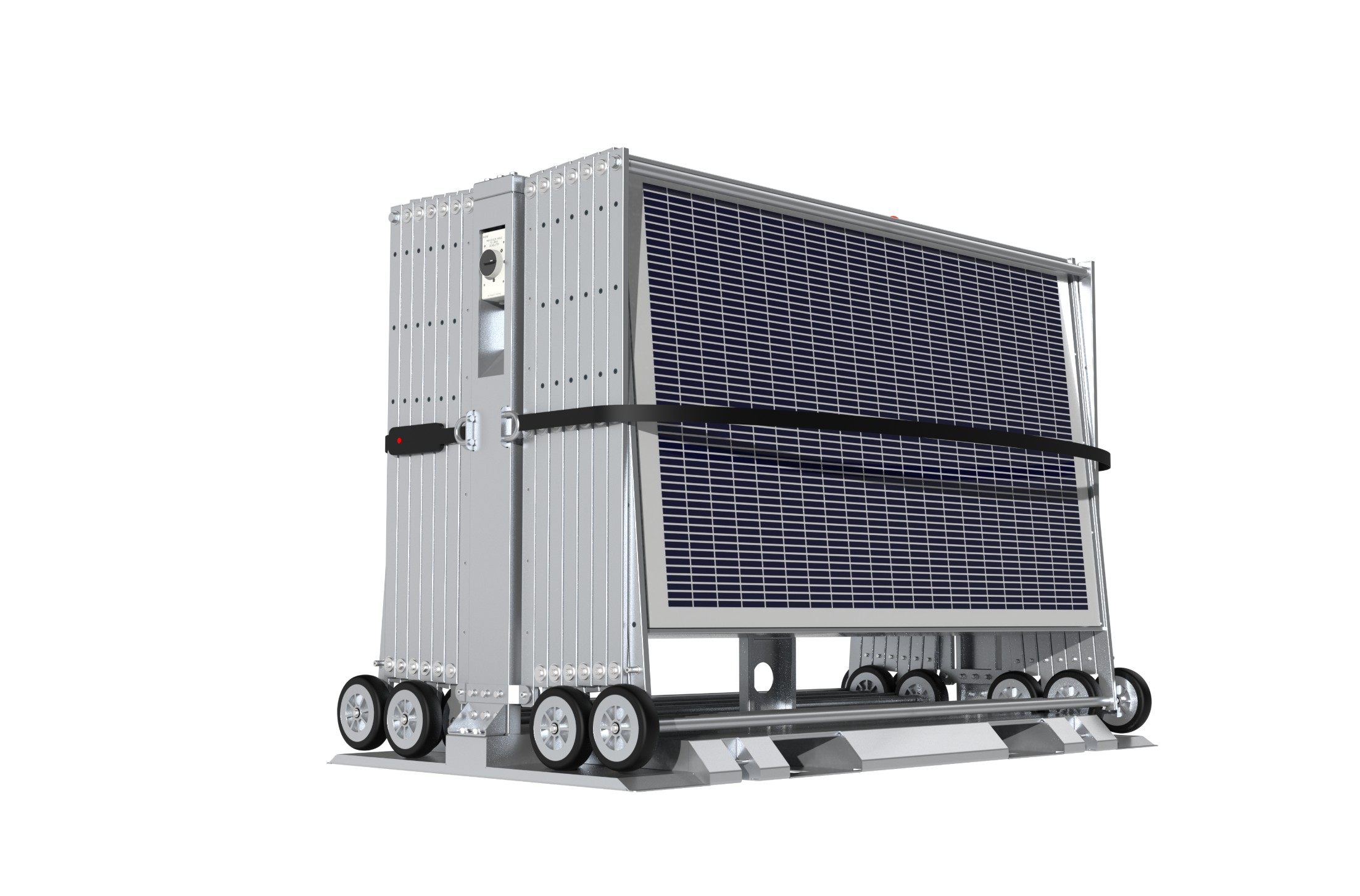

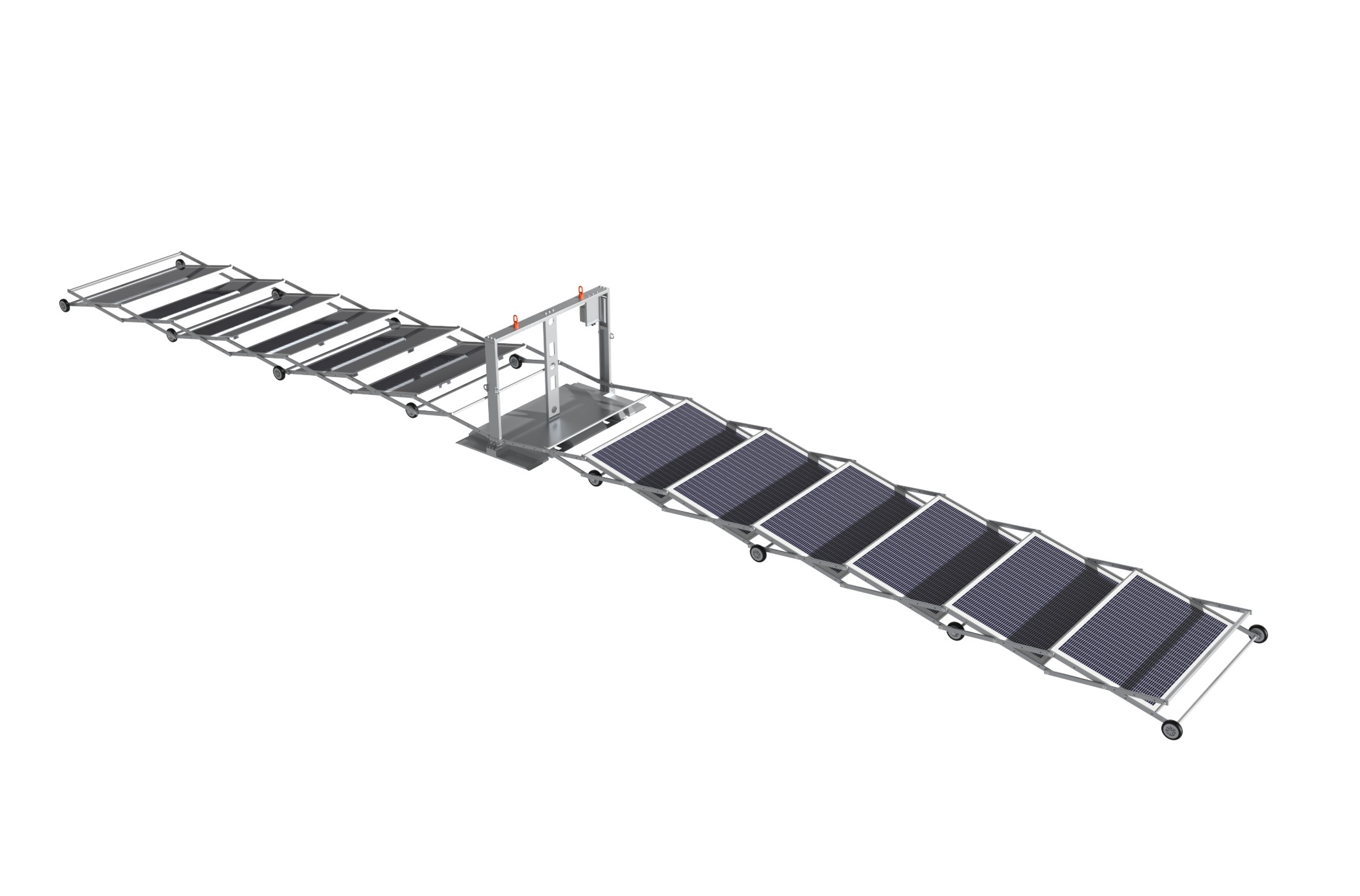

PSP7800F

PSP7800F

Basic information Transport Parameters
Product Model PSP7800 Total weight 1200 kg
Dimensions (L×W×H) 2480×1060×1250 mm
Output power 7.8 kWp
Daily power generation 46.8 kWp
Calculate based on 6h/day
Max operating voltage 624VDC
Number of solar panels 12 40’ Loading 16

PSP7800F-Specification

Register & Download

PSP7800F-Warranty

Register & Download
PSP20KE

PSP20KE

Basic information Transport Parameters
Product Model PSP20KE Total weight 3114 kg
Dimensions (L×W×H) 2785×2125×1730 mm
Output power 20kWp
Daily power generation 120 kWp
Calculate based on 6h/day
IP rating IP66
Operating ambient temp. -25 60 ℃ 40’ Loading 4

PSP20KE-Specification

Register & Download

PSP20KE-Warranty

Register & Download

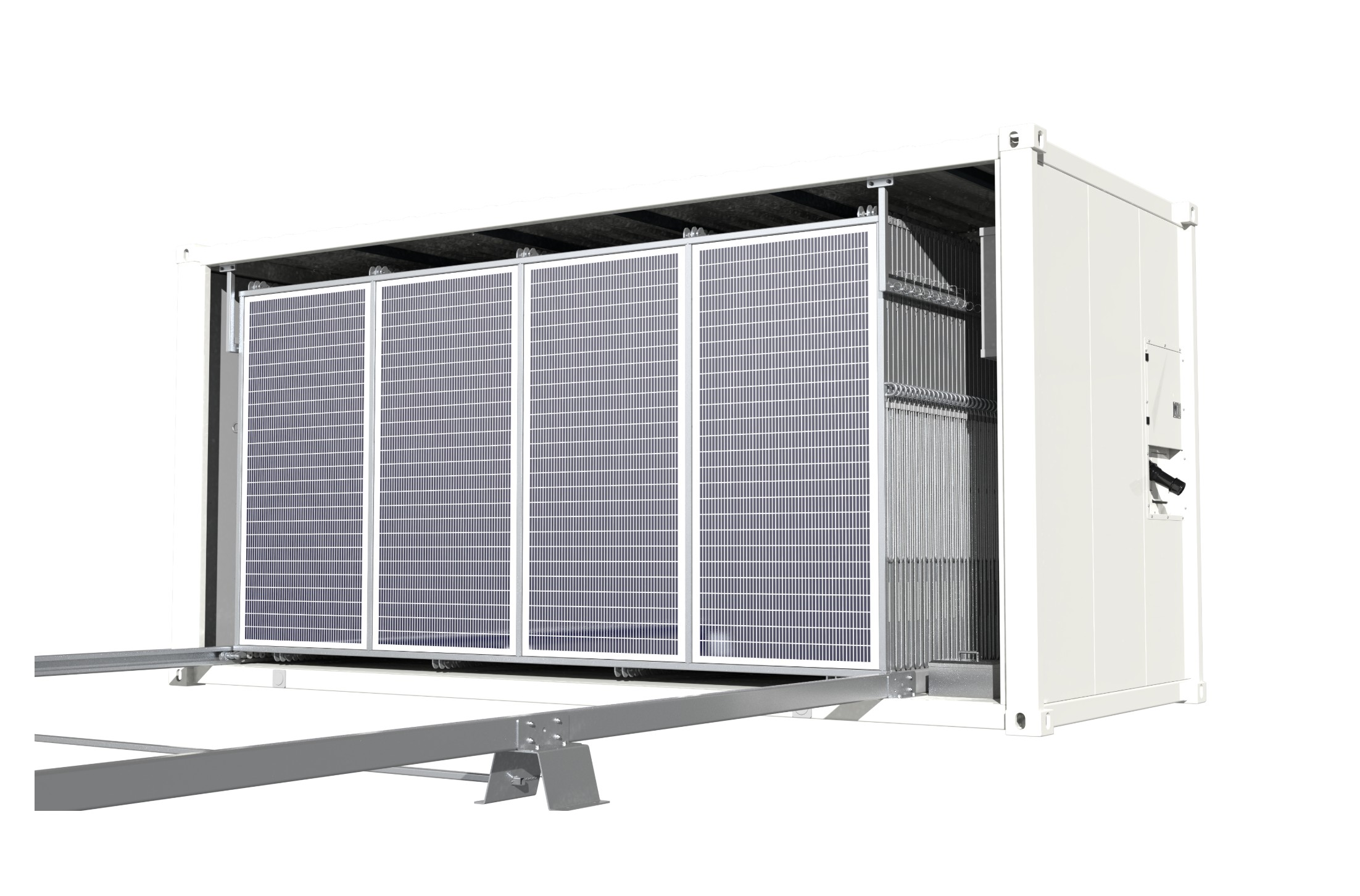

PSP100KE

PSP100KE

Basic information Transport Parameters
Product Model PSP100KE Total weight 15800 kg
Dimensions (L×W×H) 6058×2438×2896 mm
Output power 104kWp
Daily power generation 624 kWp
Calculate based on 6h/day
IP rating IP66
Operating ambient temp. -25 60 ℃ 40’ Loading 2

PSP100KE-Specification

Register & Download

PSP100KE-Warranty

Register & Download

Applications

  • Remote Telecom Station
  • Construction
  • Wind‑PV power plants
Remote Telecom Station

Remote Telecom Station

Deliver compact off-grid power for remote telecom base stations far from utility grids. The fully foldable integrated frame collapses into a streamlined unit, cutting logistics costs drastically for hard-to-reach mountain, desert and island tower sites, with forklift holes and lifting lugs enabling easy containerized bulk transport. Pre-assembled for plug-and-play deployment, each unit unfolds into a full PV array and connects to hybrid energy storage within 30 minutes without civil construction. Modular parallel expansion matches steady telecom load demands, slashing diesel fuel reliance by over 60%. Built with corrosion-resistant frames, these packs withstand harsh outdoor climates to sustain 24-hour stable signal transmission for isolated communication infrastructure

Remote Telecom Station Application
Construction

Construction

Serve as flexible temporary power for large remote construction yards and container site camps. Their space-saving folded design allows multiple units stacked inside standard shipping containers, greatly lowering cross-region transportation fees for multi-location construction projects. No complicated on-site assembly is needed; crews unfold the pre-integrated PV array and finish wiring within half an hour to generate instant clean power. Compatible with diesel gensets and energy storage systems, they form multi-energy hybrid microgrids to power site offices, lighting and heavy construction gear. Unlike fixed solar setups, PSP packs can be fully packed and relocated once projects wrap up, eliminating waste of permanent solar assets and cutting long-term site operation expenses.

Construction Application
Wind‑PV power plants

Wind‑PV power plants

Perfectly supplement desert wind-solar hybrid power stations to balance unstable wind output. The compact foldable structure solves tough desert logistics challenges: collapsed units occupy minimal space for low-cost truck or container transportation across barren, road-sparse desert terrain. Rapid on-site deployment requires no foundation work, quickly expanding PV capacity to offset wind power fluctuations under intense desert sunlight. Multiple PSP units can be paralleled to build scalable mobile solar arrays, coordinating with wind turbines and storage systems for consistent hybrid power supply. Durable bifacial panels resist desert dust and UV exposure, drastically cutting diesel backup usage and lowering overall operational costs for large-scale desert renewable projects.

Wind‑PV power plants Application

Related Products

PES300S

PES300S

TweetSharePinShare300 kWe PES 300S PowerLink PES 300S—your portable hybrid energy solution designed for low OPEX and high returns. Engineered to thrive in island power, on-site operations, construction sites, mining, and energy rental scenarios, it takes battery power as the core, complemented by PV, diesel genset, and grid inputs. Ideal for uneven load output, it cuts … Continue reading Solar Pack-PSP →

PES300S Free Quote
PHE375

PHE375

TweetSharePinShare375 kWe/474kWh PHE 375 PowerLink PHE375 – PHE375 is a mobile Diesel Battery Hybrid Generator with 375kW output and 474kWh capacity. The portable off-grid hybrid energy-efficient solution you can count on, tailored for leasing, construction, port operations, mining sites, events, emergency response initiatives, and marine power needs. With compatibility for solar and wind energy inputs, … Continue reading Solar Pack-PSP →

PHE375 Free Quote
BES80S3

BES80S3

TweetSharePinShare80 kWe/94.8 kWh BES 80S3 The BES80S3 is an all-in-one Liquid Cooled Battery Storage solution. Delivering 80kWe/94.8kWh, it offers high efficiency for islands and remote stations. The BES80S3 merges energy storage batteries, PV modules, and diesel generators in a seamless, all-in-one configuration, providing a complementary power solution that combines wind, solar, diesel, and energy storage … Continue reading Solar Pack-PSP →

BES80S3 Free Quote
PES200S

PES200S

TweetSharePinShare200 kWe PES 200S PowerLink PES200S—Portable hybrid power technology engineered for cost efficiency and profitability. Designed to serve remote island grids, industrial sites, construction projects, mining operations, and rental energy markets, it prioritizes battery storage while incorporating solar panels, diesel backups, and grid compatibility. Perfect for irregular load profiles, it reduces generator dependence by up … Continue reading Solar Pack-PSP →

PES200S Free Quote

FAQs

Can I remotely monitor and control these systems via a mobile APP?

Absolutely. You may download the official PowerLink mobile APP to access real-time operational data and send remote control commands for STS series systems.

What are the biggest advantages of Powerlink’s PV solutions compared with traditional fixed solar panels?

PowerLink PV equipment adopts integrated folding/unfolding motorized design, realizing plug-and-play, rapid deployment without complex construction. Unlike fixed PV, they support remote & on-site one-button retraction for transportation or extreme weather protection. Paired with intelligent energy storage, they cut diesel fuel costs by over 60%, eliminate grid access barriers, lower maintenance frequency, and can be stacked for containerized shipping to reduce logistics expenses drastically.

How do the CRSP and PSP series systems deploy and fold up?

  • CRSP Series (CRSP7000 / CRSP14000): Electrically actuated. Solar panels can automatically unfold and retract via on-site physical controls or remote radio controllers.
  • PSP Series (PSP6000): Integrated manual unfold/fold structure. The entire unit collapses compactly for convenient transportation and storage.

Do these PV systems require frequent maintenance?

Regular frequent maintenance is unnecessary. After initial commissioning, only monthly cleaning of dust accumulated on solar panels is required. CRSP series units feature robust electronic controls and durable solar modules, further cutting maintenance frequency.

What’s the applicable scenario of PSP portable PV packs?

PSP series are designed for large-area industrial off-grid power demand: open-pit mining areas, oil & gas field exploration, temporary large industrial construction yards, mobile PV power station supplementary energy supply, remote field operation bases, and large outdoor event power supply.
