6000 kWe
TES6000

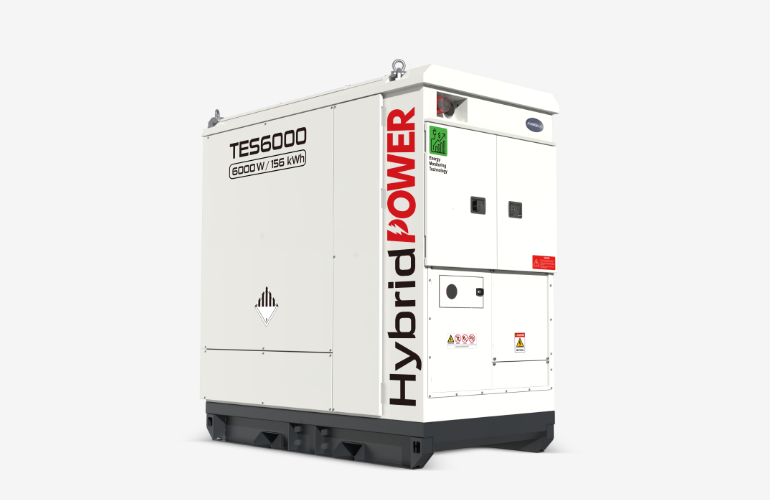

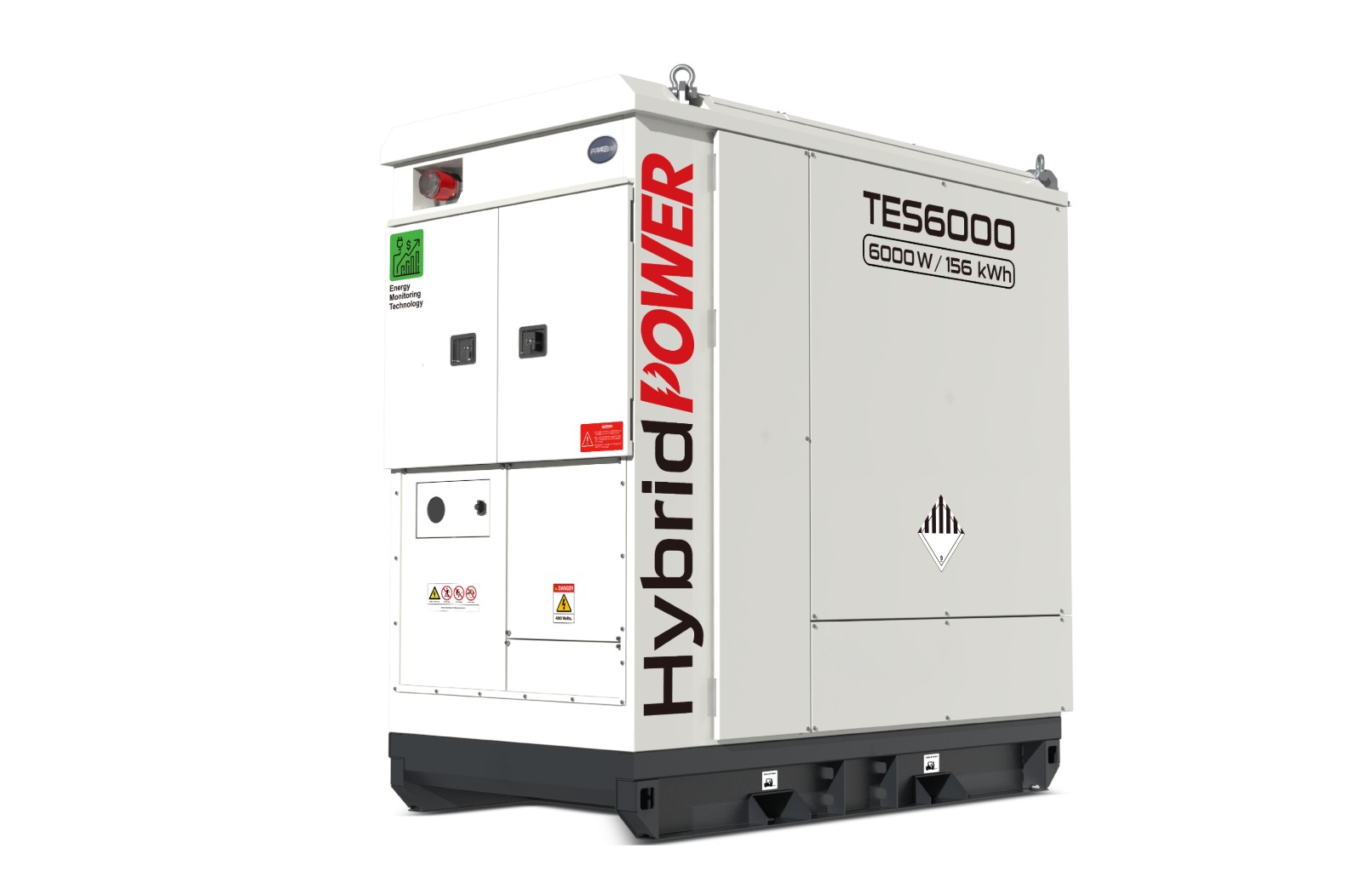

Powerlink TES6000 is a high-efficiency medium-power hybrid power supply system, engineered for the core power demand of urban and suburban 5G macro base stations and medium-sized telecom nodes. It perfectly adapts to the 3x power consumption upgrade of 5G base stations vs 4G, integrating mains power, high-efficiency photovoltaic, liquid-cooled energy storage and diesel generator backup with the core logic of “multi-energy complementation, intelligent scheduling and green low-carbon operation”. Equipped with the proprietary EnerWeb energy management platform and EMS intelligent control system, TES6000 features high conversion efficiency, flexible scenario configuration and cost-optimized operation, and is certified with CE and UKCA.
Modular structure design
Genuine spare parts
Plug-and-Play Convenience
Rugged & Reliable Performance
Features
5G-Optimized Power Output
Tailored for 5G macro base station’s high power demand
Ultra-High Energy Conversion
Integrates silicon carbide technology with MPPT maximum power point tracking
Harsh Environment Adaptation
IP54 protection grade and 4C anti-corrosion design
Ask an Expert
PowerLink provides tailored, high-efficiency energy solutions for sustainable power around the world.
86-2157-858-099 ext 8820
Specification
| Output Power | kVA/kW | 12/12 |
| Output voltage | AC V | 220/230/240 |
| Battery Capacity | kWh | 21.1 |
| Grid Power Input | kVA/kW | 12/12 |
| Gen Power Input | kVA/kW | 37/30 |
| Solar Power Capacity | kWp | 18 |
| 40′ Loading | qty | 4 |
| Noise Level(hybrid mode) | dBA@7m | 55 |
| Noise Level(battery mode) | dBA@7m | 50 |
| Dry Weight | kg | 1350 |
| Dimensions | mm | 2100*1150*1700 |
Download
TES 6000 Specification Datasheet
TES 6000-Specification
Register & Download
TES 6000 Warranty Manual
BESS Warranty Manual-5 Years-20250924
Register & Download
TES 6000 Brochure Manual
BESS Brochure Manual-5 Years-20250924
Register & Download
